Hirschmann NR Series

Hirschmann NR Series

In brief:

Robust multi-pin circular connector system with screw locking functionality.

NR connectors offer pin-counts of 7 and 12 with a current carrying capacity of up to 10A per contact.

The series caters for cable OD’s of up to 14mm, has a wire gauge max. of 1.50mm² and is capable of offering IP65 ingress protection in mated state.

Hirschmann logo

High-quality products for the automation industry, delivered at great value

DownloadDownload Brochure

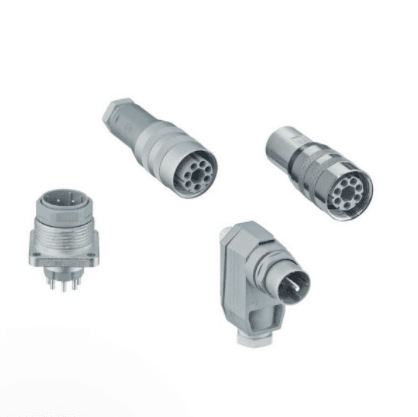

The Hirschmann NR series is a range of robust circular connectors available in 7 & 12 way and with IP65 environmental protection.

The impact-proof fracture-proof, glass fibre-reinforced housings of the NR series offer a solid connection. With their highly robust characteristics, this circular connector system is able to excel and its compact design lends it to an array of applications.

The built in housings can be supplied with a flange if so desired or for installation in a variety of PG or metric threads and with freely selectable cable output.

Thanks to crimping technology, it is also possible to use in installations that are subject to a lot of vibrational stress.

Key features include:

  • Available in 7 & 12 pin variants (including PE)
  • For voltages up to 250V and currents up to 10A
  • Selection of plastic or metal housings for permanent solutions
  • High degree of transmission safety due to continuous shielding against electro-magnetic radiation
  • Protection class IP65

For a more detailed description of this connector series please see the manufacturer's brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001.

We have many products in this series, find what you need using the filters below

38 products match your criteria:

931727106 thumbnail

Part no. : 931727106

7 Way Cable Connector for Pin Contacts, 7-9mm Angled Cable Entry, IP65 (N6R FM R)

931776001 thumbnail

Part no. : 931776001

7 Way Cable Connector for Pin Contacts, 8-10mm Straight Cable Entry, IP65 (N6R EM)

931553106 thumbnail

Part no. : 931553106

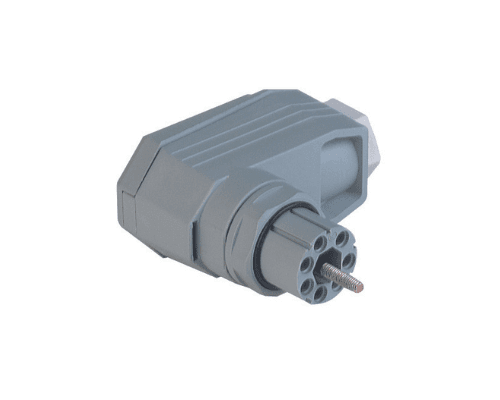

7 Way Cable Connector for Socket Contacts, 7-9mm Angled Cable Entry, IP65 (N6R FF R)

931435106 thumbnail

Part no. : 931435106

7 Way Cable Connector for Socket Contacts, 7-9mm Angled Cable Entry, IP65 (N6R FF)

932194112 thumbnail

Part no. : 932194112

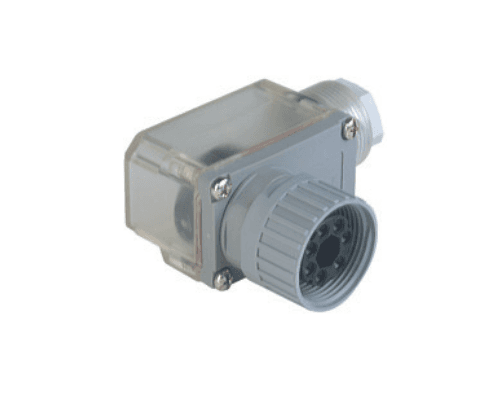

7 Way Cable Connector for Socket Contacts, 7-9mm Angled Cable Entry, with Transparent Lid, IP65 (N6R FF S 11)

931720001 thumbnail

Part no. : 931720001

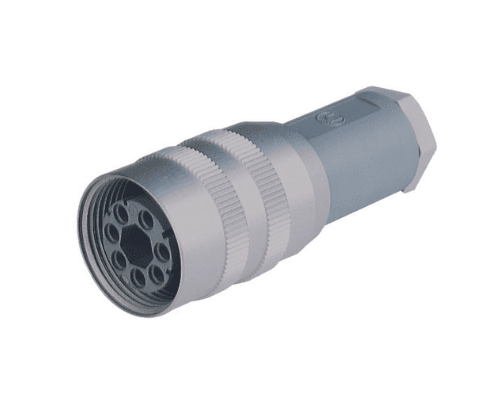

7 Way Cable Connector for Socket Contacts, 7-9mm Straight Cable Entry, IP65 (N6R EF)

933711001 thumbnail

Part no. : 933711001

7 Way Cable Connector for Socket Contacts, Straight Cable Entry, without Cable Gland, Shieldable, IP65 (N6R EF S)

931730106 thumbnail

Part no. : 931730106

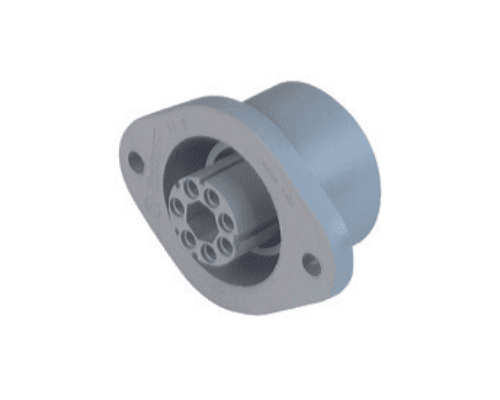

7 Way Flanged Panel Connector for Socket Contacts, IP65 (N6R BFE)

932273106 thumbnail

Part no. : 932273106

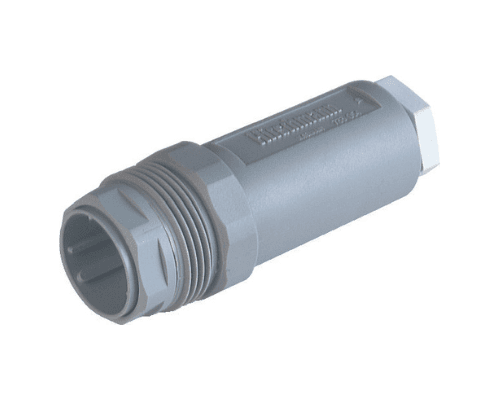

7 Way In-line Cable Connector for Pin Contacts, 7-9mm Straight Cable Entry, IP65 (N6R DM)

931592004 thumbnail

Part no. : 931592004

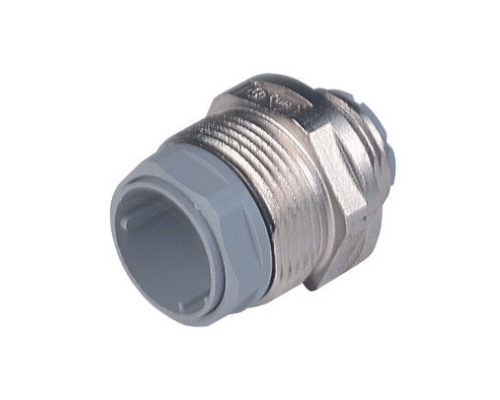

7 Way Jam-Nut Panel Connector for Pin Contacts, IP65 (N6R AM 2 M20)

931592001 thumbnail

Part no. : 931592001

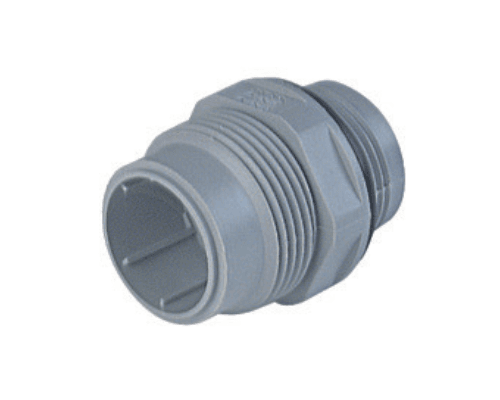

7 Way Jam-Nut Panel Connector for Pin Contacts, IP65 (N6R AM 2)

931592002 thumbnail

Part no. : 931592002

7 Way Jam-Nut Panel Connector for Pin Contacts, IP65 (N6R AM 3)

931592003 thumbnail

Part no. : 931592003

7 Way Jam-Nut Panel Connector for Pin Contacts, IP65 (N6R AM 4)

931773001 thumbnail

Part no. : 931773001

7 Way Jam-Nut Panel Connector for Pin Contacts, IP65 (N6R AM 5)

931434001 thumbnail

Part no. : 931434001

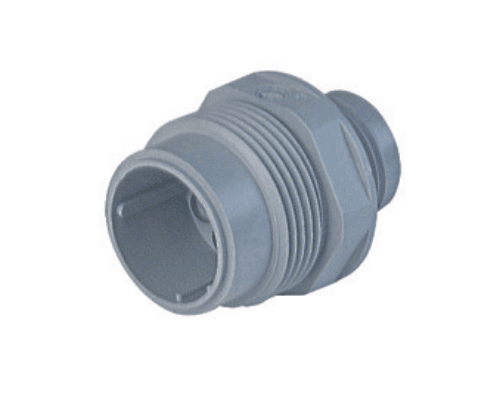

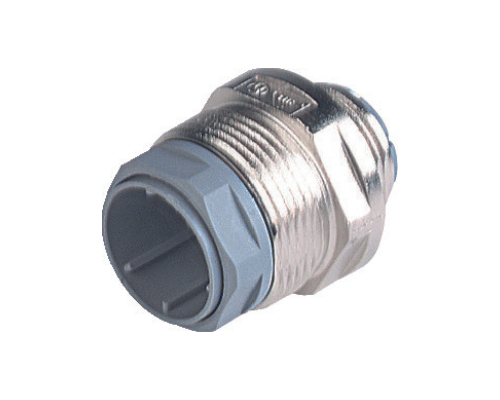

7 Way Jam-Nut Panel Connector for Pin Contacts, IP65 (N6R AM)

931855001 thumbnail

Part no. : 931855001

7 Way Jam-Nut Panel Connector for Socket Contacts, IP65 (N6R AF)

932207406 thumbnail

Part no. : 932207406

7 Way Male Jam-Nut Panel Connector with Solder Contacts, IP65 (N6R AM 2 D M20)

932207206 thumbnail

Part no. : 932207206

7 Way Male Jam-Nut Panel Connector with Solder Contacts, IP65 (N6R AM 2 D)

933710001 thumbnail

Part no. : 933710001

7 Way Male Square Flanged Panel Connector with Solder Contacts, IP65 (N6R BM FA S)

932437206 thumbnail

Part no. : 932437206

7 Way Square Flanged Panel Connector for Pin Contacts, IP65 (N6R BM FA)

932631106 thumbnail

Part no. : 932631106

12 Way Cable Connector for Pin Contacts, 8-10mm Straight Cable Entry, IP65 (N11R EM)

933101100 thumbnail

Part no. : 933101100

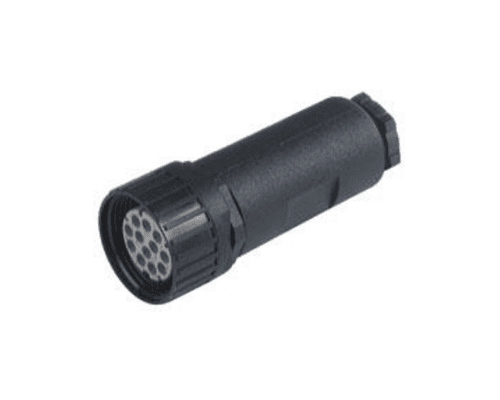

12 Way Cable Connector for Socket Contacts, 12-14mm Straight Cable Entry, IP65 (N11R EF F)

932632106 thumbnail

Part no. : 932632106

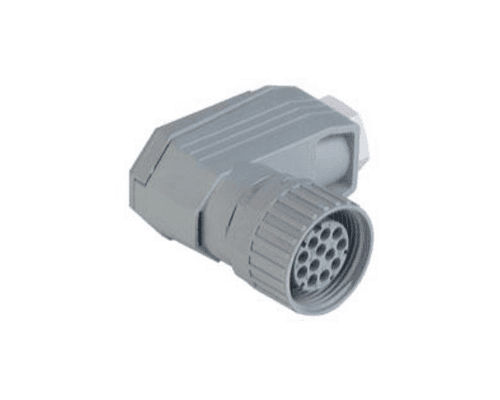

12 Way Cable Connector for Socket Contacts, 8-10mm Angled Cable Entry, IP65 (N11R FF)

932630106 thumbnail

Part no. : 932630106

12 Way Cable Connector for Socket Contacts, 8-10mm Straight Cable Entry, IP65 (N11R EF)

933700001 thumbnail

Part no. : 933700001

12 Way Cable Connector for Socket Contacts, Straight Cable Entry, without Cable Gland, Shieldable, IP65 (N11R EF S)

934337106 thumbnail

Part no. : 934337106

12 Way Jam-Nut Panel Connector for Pin Contacts, IP65 (N11R AM 2 M20)

932627106 thumbnail

Part no. : 932627106

12 Way Jam-Nut Panel Connector for Pin Contacts, IP65 (N11R AM 5)

932626106 thumbnail

Part no. : 932626106

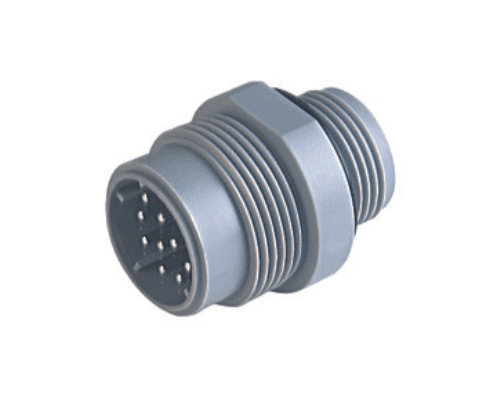

12 Way Jam-Nut Panel Connector for Pin Contacts, IP65 (N11R AM)

932625106 thumbnail

Part no. : 932625106

12 Way Jam-Nut Panel Connector for Socket Contacts, IP65 (N11R AF 5)

934338106 thumbnail

Part no. : 934338106

12 Way Male Jam-Nut Panel Connector with Solder Contacts, IP65 (N11R AM 2 D M20)

933699001 thumbnail

Part no. : 933699001

12 Way Male Square Flanged Panel Connector with Solder Contacts, IP65 (N11R BM FA S)

831002011 thumbnail

Part no. : 831002011

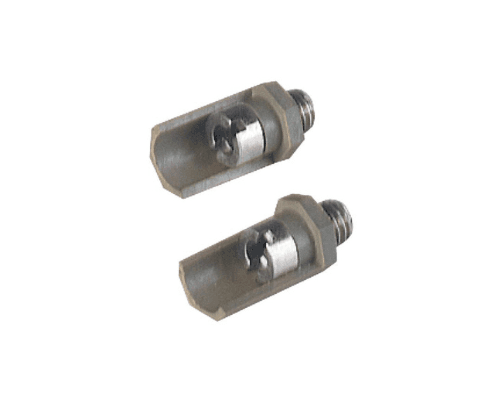

Coding Screw for Hirschmann NR Series (NC 6)

734633001 thumbnail

Part no. : 734633001

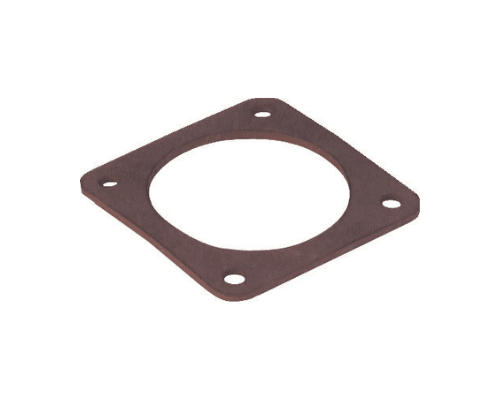

Conductive Gasket for Hirschmann NR Series Square Flanged Panel Connector (N6R-40)

831618001 thumbnail

Part no. : 831618001

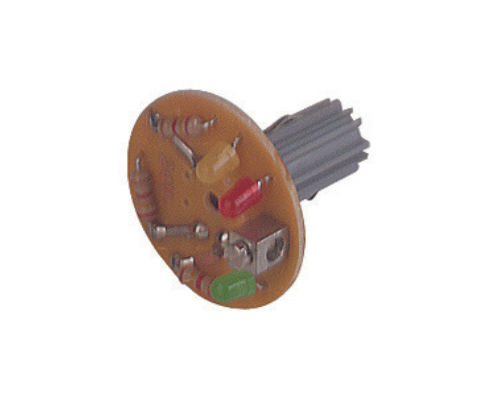

Electronic PCB Insert for Hirschmann NR Series Cable Connector (N6R 3 LED 24 DB)

831411001 thumbnail

Part no. : 831411001

Electronic PCB Insert for Hirschmann NR Series Cable Connector (N6R 3 LED 24)

734606001 thumbnail

Part no. : 734606001

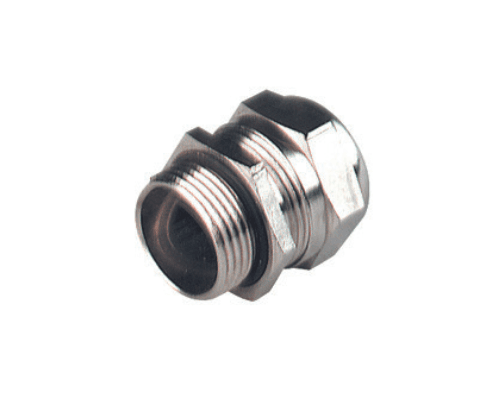

PG13.5 Metal Cable Gland, 12-15mm Cable Entry, Shieldable, IP65 (N6R-42)

734605001 thumbnail

Part no. : 734605001

PG13.5 Metal Cable Gland, 6-12mm Cable Entry, Shieldable, IP65 (N6R-41)

734582001 thumbnail

Part no. : 734582001

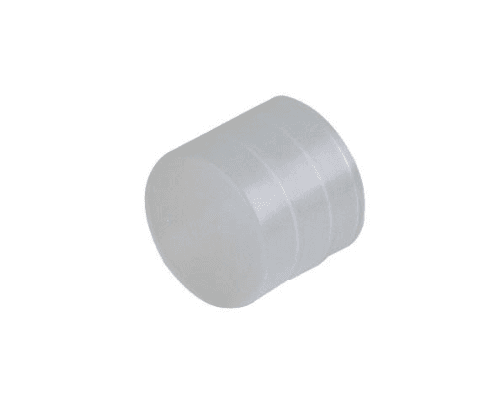

Transportation Cap for Hirschmann NR Series Panel Connector (SHK 4)
