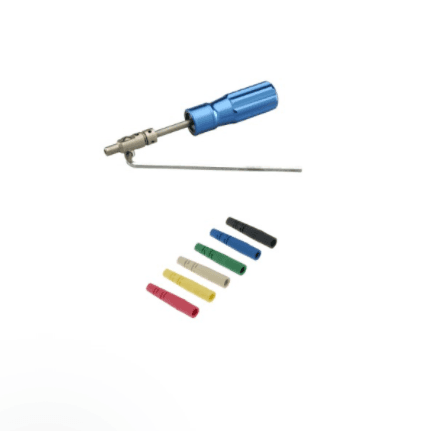

Tooling & Accessories

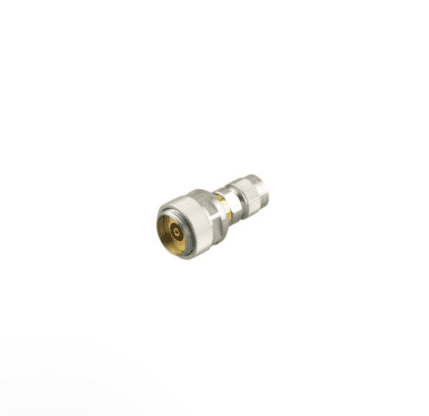

Connector Adapters

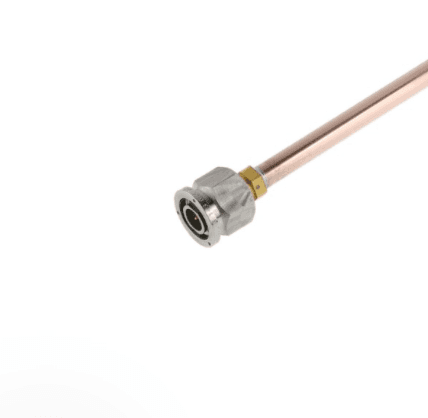

TNC Series / TNC 18 GHz Series

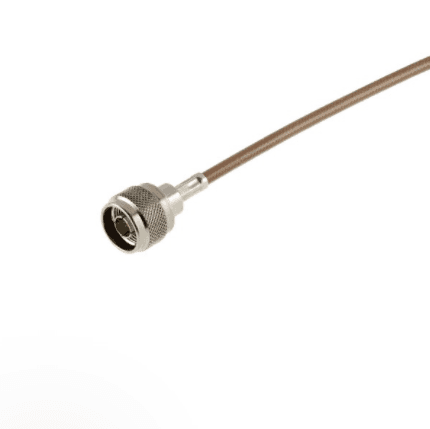

N Series / Composite N Series / N 18 GHz Series

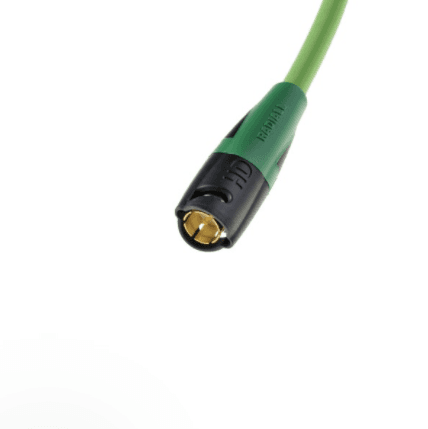

BNC Series / BNC 75 HDTV Series / BNC-TRX Series

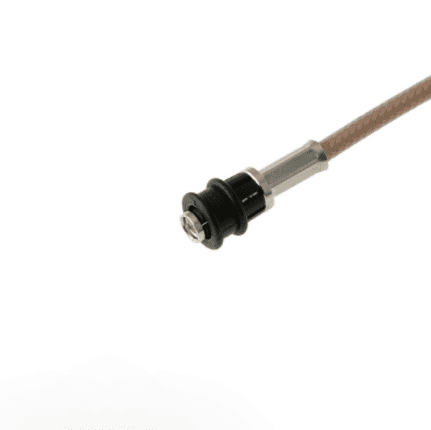

SMB Series / SMB-LOCK Series / SMC Series
What is an RF coaxial connector?
An RF coaxial connector is an electrical connector that has been designed specifically to function at radio frequencies in the multi-megahertz range. RF connectors are typically used with coaxial cables and are designed to maintain the shielding that the coaxial design offers.
RF connectors provide a fastening mechanism (such as thread, bayonet, blind mate and braces) and springs for a low ohmic electric contact while sparing the gold surface, which therefore allows a high number of mating cycles and reduces the insertion force.
What are RF coaxial connectors used for?
Common models of RF coaxial connectors are used for:
- TV receivers
- Two-way radio
- Wi-Fi devices with removable antennas
- Industrial measuring instruments
What are the different types of RF coaxial connector?
There is a wide range of different types of RF coaxial connectors, including:
BNC: The BNC coax connector is used professionally on laboratory instruments including oscilloscopes, as well as RF test equipment transmitters, receivers and almost any RF equipment. The BNC connector is fitted with a bayonet fixing to prevent accidental disconnection during use.
N-type: This high-performance option is used in many RF applications. Larger than its BNC counterpart, the N-type connector has a threaded coupling interface to ensure that it mates correctly. It is available in either 50 ohm or 75 ohm. Both types have mechanical differences that do not allow them to mate. N-type connectors can withstand high power levels of up to 11GHz, with some increasing to 18GHz.
SMA connector: This sub-miniature RF connector is suitable for frequencies from 12GHz, providing a reliable connection thanks to the threaded attachment method. These connectors are increasingly used in areas associated with RF and microwaves.
Order RF Coaxial Connectors
We are an ISO-9001-accredited business offering next-day delivery on stocked items and with full manufacturers’ support. Browse our products below or contact our friendly team today on 01744 815001. You can also complete an enquiry form and we will be in touch.
Why choose us?
At Northern Connectors, we combine an unbeatable range of circular connectors with industry-leading customer service. We work closely with many of the sector’s most trusted manufacturers to provide customers from all industries with the products they need, when they need them.
With more than 35 years of industry experience on our side, we are able to offer responsive, tailored customer support according to your requirements, and can advise you on any queries you might have. Here are some of the benefits of shopping with Northern Connectors:
Authorised Partner
of the industry’s leading manufacturers
Credit Accounts
to simplify the ordering process
Scheduled Orders
over a 12-month
period
Technical Expertise
in-house product
specialists
Personalised Support
designated Coordinators for your specific needs
Certification
ISO 9001 quality management system
What Connector Type Are You Looking For?
Easily find the connection type you need through the categories below:
Get in touch with our connector experts
With over 40 years experience in the industry, we're always happy to share our knowledge and help with connector solutions or product enquiries.
Whether you want to share your specs or already know the connector you require, we're here to advise.
