What should I look for in a connector for automation applications?

Connectors for automation need to meet four key criteria: High transmission capability Modern automated systems demand strong power, signal, and data transmission, increasingly including industrial Ethernet for Industry 4.0 connectivity. 2. Robustness and reliability Automation technology operates across a wide range of environments, from outdoor installations to industrial settings where temperatures can exceed 100°C, so connectors must maintain a secure connection under demanding conditions. 3. Compact design Automated systems need to be as space-efficient as possible, so smaller connectors that fit into tight layouts are preferable. 4. Hybrid connector capability A single hybrid connector can carry power, data, and signals through one cable, reducing space, cost, and installation time compared to multiple single-purpose components.

How do I choose the right HUMMEL connector or cable gland for my application?

The right product depends on your industry and specific requirements, including temperature range, thread type and length, sealing material, clamping range, and required ingress protection. Our technical team can advise on all of these factors, including part number identification and cross-referencing. Contact us on 01744 815 001 or complete an enquiry form and we’ll get back to you.

Hummel Connectors - Hummel Distributor

20 series match your criteria

Refine Your Search

Why Choose HUMMEL Cable Glands and Connector Solutions?

Trusted worldwide brand

HUMMEL AG has long been established as a global leader in industrial connector technology due to the quality, innovation, and technical development of its electrical connectors and cable protector solutions.

A comprehensive product portfolio

The company’s robust portfolio of versatile circular connectors, cable glands, and cable protection products is suitable for a wide range of applications and has been optimised to deliver lasting performance in even the most demanding environments.

Unmatched performance in small yet sturdy housings

The robust yet compact design of circular connectors ensures high power transmission in the smallest of spaces, while the metal housings protect the impact-sensitive contact inserts.

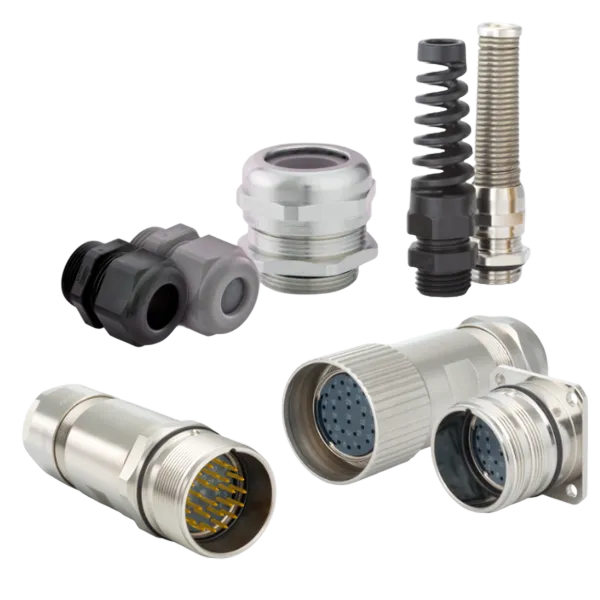

The HUMMEL Connector Series

Northern Connectors offers the following HUMMEL connector series:

Connector type

Locking interface

Key specifications

M12 Power

IEC 61076-2-111 M12x1 screw locking interface

Pin count of 4 or 5, 16A per contact, and offers IP65, IP67, or IP69K ingress protection

M16 Signal & Power

M16x0.75 screw locking interface

Pin count from 3 to 18, 20A per contact, and IP67 or IP69K ingress protection

M23 Signal

M23x1 screw or twist locking interface

Pin counts from 6 to 19, 20A per contact, and IP67 or IP69K ingress protection

M23 Power & Hybrid

M23x1 screw or twist locking interface

Pin counts from 6 to 12, 28A per contact, and IP67 or IP69K ingress protection

M23 RJ45

M23x1 screw locking interface

Houses RJ45 Ethernet connectivity and offers IP67 or IP69K ingress protection

M27 Signal

M27x1 screw locking mechanism

Pin counts of 26 or 28, 8A connectivity per contact, and IP67 or IP69K ingress protection

M40 Power

M40x1.5 screw or twist locking interface

Pin counts of 6 or 8, 55A connectivity per contact, and IP67 or IP69K ingress protection

Northern Connectors – Your HUMMEL Distributor

Northern Connectors is a long-time HUMMEL supplier, with a strong relationship with the brand, giving us unrivalled expertise on all of the products we stock.

As such, our customers can order a wide range of cable glands and connector accessories to suit any rugged and high-performance applications, knowing we will deliver what you need when it comes to cable protection.

With an in-house technical team, you can also access dedicated product specialists, part number identification, and cross-referencing services for part sourcing.

So, whether you need hygienic cable glands or stuffing glands for hazardous areas, we are confident we can provide the HUMMEL connectors and accessories you need.

Order HUMMEL Connectors Today

With rapid service and personalised sales support, next-day delivery on in-stock parts, and a low minimum order value, Northern Connectors can ensure you have what you need to keep operations running or even get ahead of maintenance schedules.

To order today or for site-specific advice, please call us on 01744 815 001 or complete an enquiry form, and we’ll get back to you as soon as we can.
