932631106

Hirschmann / NR Series

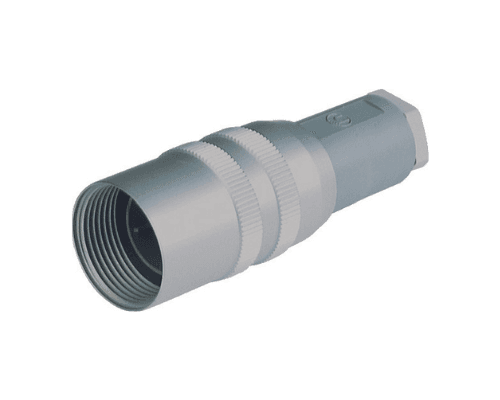

12 Way Cable Connector for Pin Contacts, 8-10mm Straight Cable Entry, IP65 (N11R EM)

932631106 thumbnailImage may be representative of a range of products, see literature to confirm

Available Downloads

Quick Quote

Technical Specification

Part Number932631106
Product TypeConnector
BrandHirschmann
Connector SeriesNR
Backshell IncludedYes
Body OrientationStraight
Connector TypeCable Connector
Contact PlatingSilver
Contacts IncludedYes
Coupling Area MaterialPlastic
Current Rating5A
Voltage Rating60V AC/DC
Electrical NotesSee literature for derating curves
Degree of Ingress ProtectionIP65
EMC ShieldNo
Gender of InsertMale
Housing MaterialPlastic
Keyway/Coding TypeStandard
Locking SystemScrew
Min. Mechanical Mating Cycles50
Max. Wire Gauge/Cross-Sectional Area0.50mm²
Min. Cable Entry (mm)8
Max. Cable Entry (mm)10
Number of Ways12
Operating Temperature-40 to +90°C
Positive Earth (PE)Yes
Shell sizeNA
Termination Method/TechnologyCrimp

About this Series

Hirschmann logo

High-quality products for the automation industry, delivered at great value

In brief:

Robust multi-pin circular connector system with screw locking functionality.

NR connectors offer pin-counts of 7 and 12 with a current carrying capacity of up to 10A per contact.

The series caters for cable OD’s of up to 14mm, has a wire gauge max. of 1.50mm² and is capable of offering IP65 ingress protection in mated state.

Hirschmann NR Series

The Hirschmann NR series is a range of robust circular connectors available in 7 & 12 way and with IP65 environmental protection.

The impact-proof fracture-proof, glass fibre-reinforced housings of the NR series offer a solid connection. With their highly robust characteristics, this circular connector system is able to excel and its compact design lends it to an array of applications.

The built in housings can be supplied with a flange if so desired or for installation in a variety of PG or metric threads and with freely selectable cable output.

Thanks to crimping technology, it is also possible to use in installations that are subject to a lot of vibrational stress.

Key features include:

  • Available in 7 & 12 pin variants (including PE)
  • For voltages up to 250V and currents up to 10A
  • Selection of plastic or metal housings for permanent solutions
  • High degree of transmission safety due to continuous shielding against electro-magnetic radiation
  • Protection class IP65

For a more detailed description of this connector series please see the manufacturer's brochure which is available to download above.
