CONEC Introduce D-Sub SnapLock Hood Kits & Retrofit Assemblies
30/04/2025
CONEC's new SnapLock locking system for D-SUB connectors and hoods enables a fast and secure connection without the need for conventional thumbscrews.

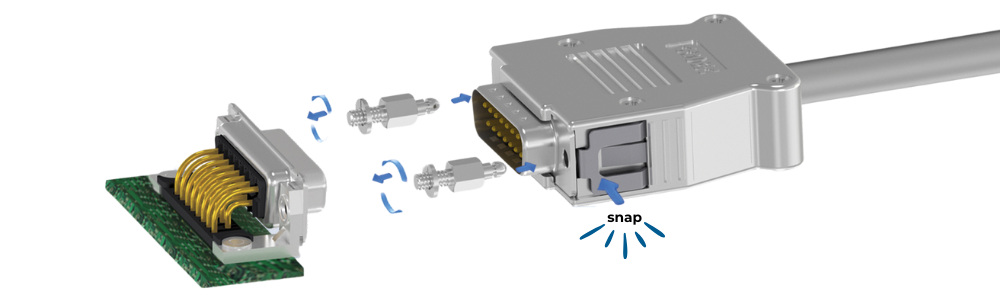

A spring clip integrated into the hood locks onto a latch pin mounted on the mating connector.
Technical Features & Applications
The SnapLock system is specifically designed for applications requiring a robust and vibration-resistant connection. With the option to retrofit using a bolt kit, the system can also be used with standard D-SUB connectors. This opens up a wide range of applications, such as in automation technology, measurement technology, and medical engineering.
The key benefits of the SnapLock system:
- Time savings thanks to tool-free assembly & disassembly
- Enhanced process reliability with a defined locking mechanism
- Vibration resistance, even in demanding environments
- Retrofit capability for existing D-Sub connectors
Expanding the Portfolio: CONEC SnapLock RetroFit Sets & Bundles
With the new CONEC RetroFit Sets, the SnapLock system is now available as a ready-to-use solution.
Pre-wired single and double ended assemblies are offered in 9 & 15 way versions of the metallized SnapLock hood, including a kit with threaded bolts.
The pre-assembled sets are available in three standard lengths: 1.8m, 3m & 5m.
Also newly available are the SnapLock Bundles, which include the SnapLock hood along with the necessary mounting accessories for retrofitting existing systems.
The SnapLock Bundles are offered from 9 to 50 way (shell sizes 1 to 5).
