CONEC D-Sub Connector SnapLock Hoods

In brief:

The D-Sub connector SnapLock locking system enables a fast and secure connection without the need of conventional thumbscrews.

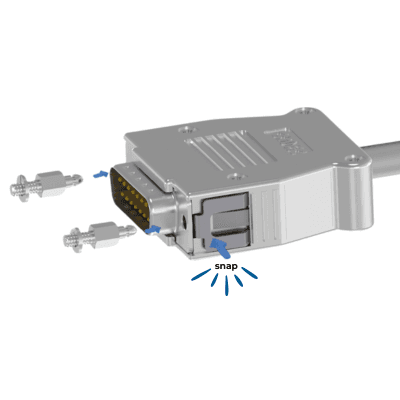

A spring clip integrated into the hood locks onto a latch pin mounted on the panel connector.

Options include SnapLock backshells with accompanying panel latch pins and full pre-wired cable assembly sets.

Conec Logo

A diverse and growing range of D-sub connectors and accessories, interface systems and circular sensor connectors

DownloadDownload Brochure

The CONEC SnapLock locking system for D-Sub connectors and hoods enables a fast and secure connection and locking mechanism without additional screws. A spring clip integrated into the hood locks onto a latch pin mounted on the mating connector.

Technical Features & Applications
The SnapLock system is specifically designed for applications requiring a robust and vibration-resistant connection. With the option to retrofit using a bolt kit, the system can also be used with standard D-Sub connectors. This opens up a wide range of applications, such as in automation technology, measurement technology, and medical engineering.

The key benefits of the SnapLock system:

  • Time savings thanks to tool-free assembly & disassembly
  • Enhanced process reliability with a defined locking mechanism
  • Vibration resistance, even in demanding environments
  • Retrofit capability for existing D-Sub connectors

Expanding the Portfolio: CONEC SnapLock RetroFit Sets & Bundles
With the new CONEC RetroFit Sets, the SnapLock system is now available as a ready-to-use solution.

Pre-wired single and double ended assemblies are offered in 9 & 15 way versions of the metallized SnapLock hood, including a kit with threaded bolts.

The pre-assembled sets are available in three standard lengths: 1.8m, 3m & 5m.

Also newly available are the SnapLock Bundles, which include the SnapLock hood along with the necessary mounting accessories for retrofitting existing systems.

The SnapLock Bundles are offered from 9 to 50 way (shell sizes 1 to 5).

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001.

We have many products in this series, find what you need using the filters below

22 products match your criteria:

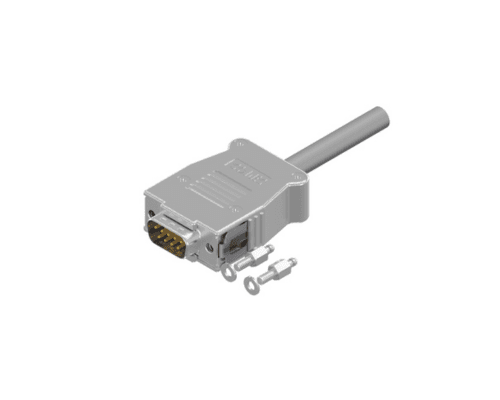

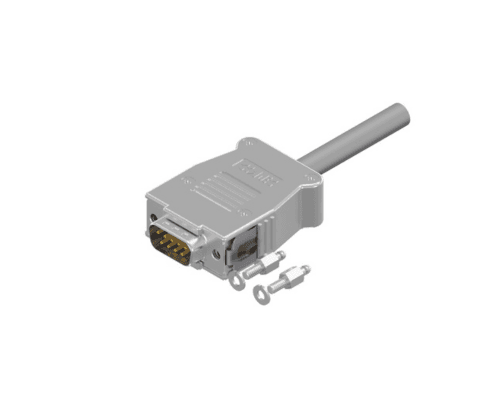

16-512330 thumbnail

Part no. : 16-512330

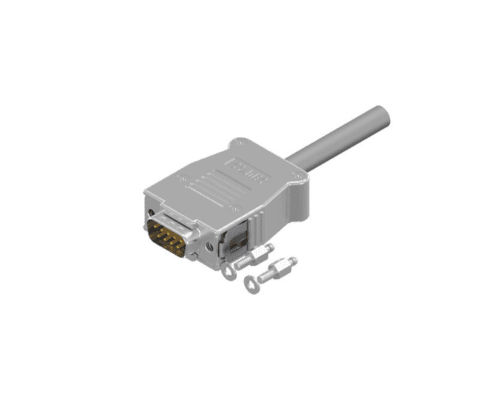

9 Way D-Sub (Standard) SnapLock Cable Assembly, Straight Male to Open End, 1.8m Shielded Cable with Grey PVC Jacket, IP67 (kit includes bolts for panel connector)

16-512340 thumbnail

Part no. : 16-512340

9 Way D-Sub (Standard) SnapLock Cable Assembly, Straight Male to Open End, 3m Shielded Cable with Grey PVC Jacket, IP67 (kit includes bolts for panel connector)

16-512350 thumbnail

Part no. : 16-512350

9 Way D-Sub (Standard) SnapLock Cable Assembly, Straight Male to Open End, 5m Shielded Cable with Grey PVC Jacket, IP67 (kit includes bolts for panel connector)

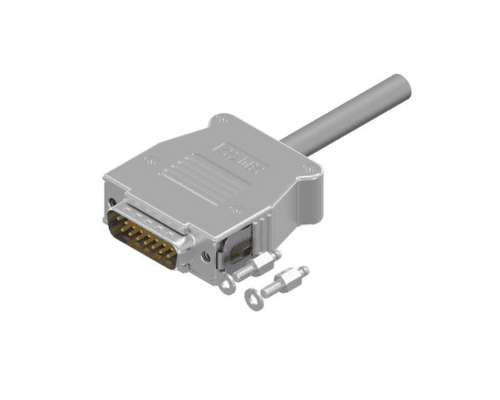

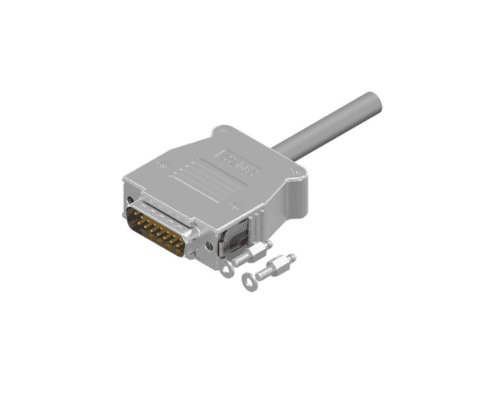

16-512390 thumbnail

Part no. : 16-512390

15 Way D-Sub (Standard) SnapLock Cable Assembly, Straight Male to Open End, 1.8m Shielded Cable with Grey PVC Jacket, IP67 (kit includes bolts for panel connector)

16-512400 thumbnail

Part no. : 16-512400

15 Way D-Sub (Standard) SnapLock Cable Assembly, Straight Male to Open End, 3m Shielded Cable with Grey PVC Jacket, IP67 (kit includes bolts for panel connector)

16-512410 thumbnail

Part no. : 16-512410

15 Way D-Sub (Standard) SnapLock Cable Assembly, Straight Male to Open End, 5m Shielded Cable with Grey PVC Jacket, IP67 (kit includes bolts for panel connector)

16-512360 thumbnail

Part no. : 16-512360

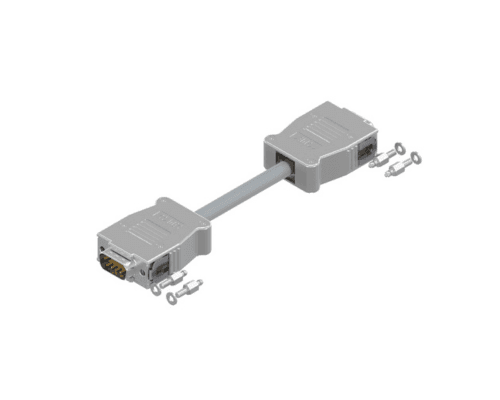

9 Way D-Sub (Standard) SnapLock Cable Assembly, Straight Male to Straight Female, 1.8m Shielded Cable with Grey PVC Jacket, IP67 (kit includes bolts for panel connector)

16-512370 thumbnail

Part no. : 16-512370

9 Way D-Sub (Standard) SnapLock Cable Assembly, Straight Male to Straight Female, 3m Shielded Cable with Grey PVC Jacket, IP67 (kit includes bolts for panel connector)

16-512380 thumbnail

Part no. : 16-512380

9 Way D-Sub (Standard) SnapLock Cable Assembly, Straight Male to Straight Female, 5m Shielded Cable with Grey PVC Jacket, IP67 (kit includes bolts for panel connector)

16-512420 thumbnail

Part no. : 16-512420

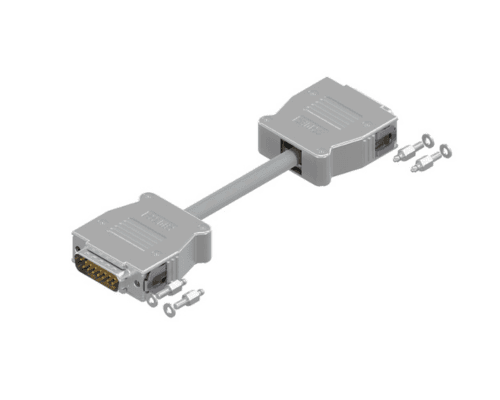

15 Way D-Sub (Standard) SnapLock Cable Assembly, Straight Male to Straight Female, 1.8m Shielded Cable with Grey PVC Jacket, IP67 (kit includes bolts for panel connector)

16-512430 thumbnail

Part no. : 16-512430

15 Way D-Sub (Standard) SnapLock Cable Assembly, Straight Male to Straight Female, 3m Shielded Cable with Grey PVC Jacket, IP67 (kit includes bolts for panel connector)

16-512440 thumbnail

Part no. : 16-512440

15 Way D-Sub (Standard) SnapLock Cable Assembly, Straight Male to Straight Female, 5m Shielded Cable with Grey PVC Jacket, IP67 (kit includes bolts for panel connector)

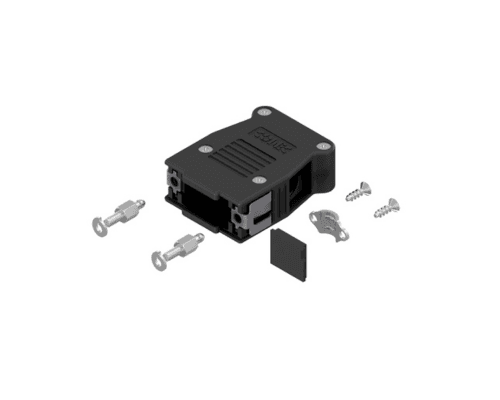

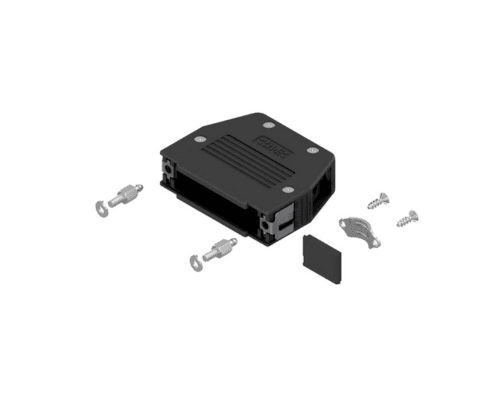

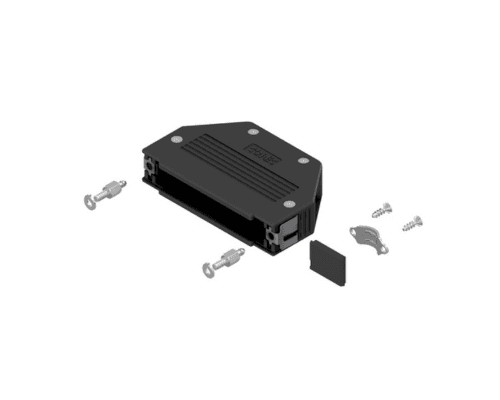

16-003250E thumbnail

Part no. : 16-003250E

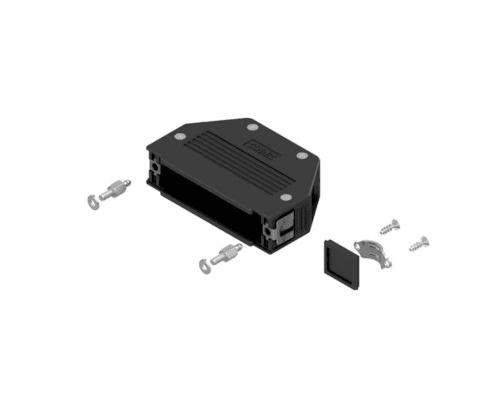

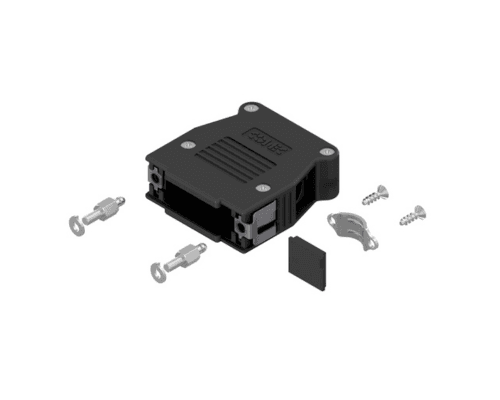

Shell Size 1 Metal D-Sub Cable Connector Backshell, 8.5mm Max. Straight or Angled Cable Entry, Shieldable, Black Plastic Version, IP20 (kit includes bolts for panel connector)

16-003260E thumbnail

Part no. : 16-003260E

Shell Size 2 Metal D-Sub Cable Connector Backshell, 10mm Max. Straight or Angled Cable Entry, Shieldable, Black Plastic Version, IP20 (kit includes bolts for panel connector)

16-003270E thumbnail

Part no. : 16-003270E

Shell Size 3 Metal D-Sub Cable Connector Backshell, 11mm Max. Straight or Angled Cable Entry, Shieldable, Black Plastic Version, IP20 (kit includes bolts for panel connector)

16-003280E thumbnail

Part no. : 16-003280E

Shell Size 4 Metal D-Sub Cable Connector Backshell, 11mm Max. Straight or Angled Cable Entry, Shieldable, Black Plastic Version, IP20 (kit includes bolts for panel connector)

16-003290E thumbnail

Part no. : 16-003290E

Shell Size 5 Metal D-Sub Cable Connector Backshell, 12mm Max. Straight or Angled Cable Entry, Shieldable, Black Plastic Version, IP20 (kit includes bolts for panel connector)

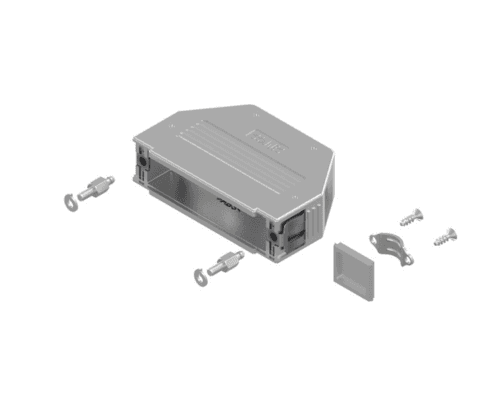

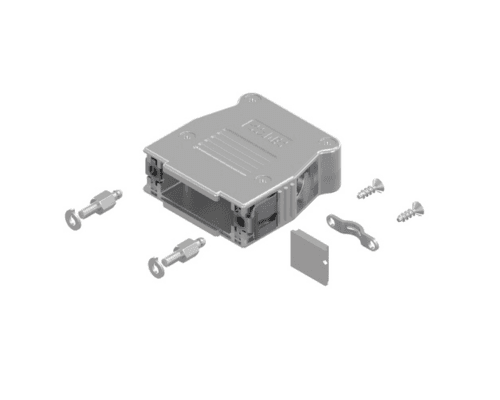

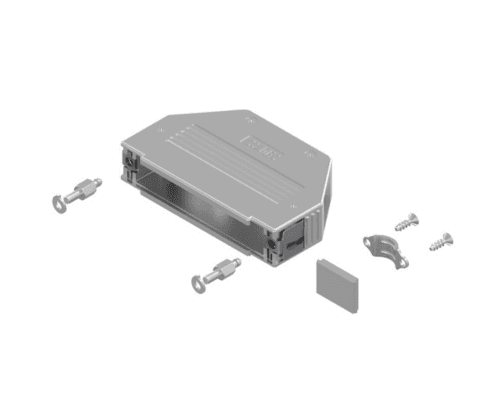

16-003200E thumbnail

Part no. : 16-003200E

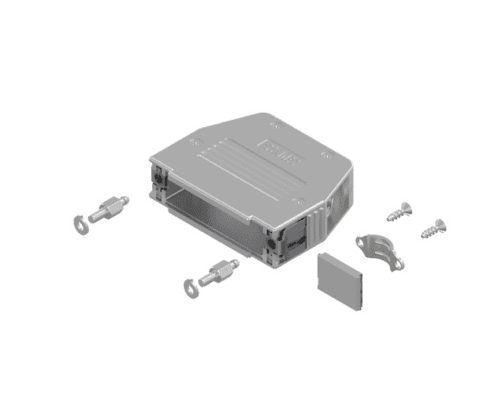

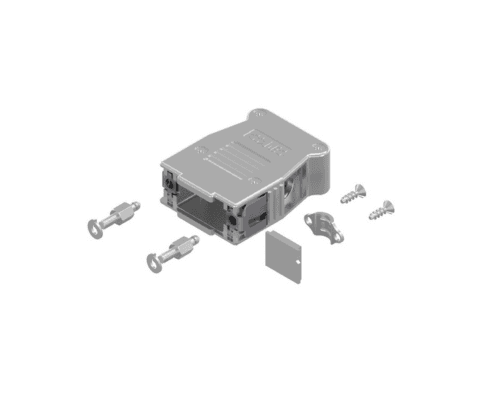

Shell Size 1 Metal D-Sub Cable Connector Backshell, 8.5mm Max. Straight or Angled Cable Entry, Shieldable, Metalised Plastic Version, IP20 (kit includes bolts for panel connector)

16-003210E thumbnail

Part no. : 16-003210E

Shell Size 2 Metal D-Sub Cable Connector Backshell, 10mm Max. Straight or Angled Cable Entry, Shieldable, Metalised Plastic Version, IP20 (kit includes bolts for panel connector)

16-003220E thumbnail

Part no. : 16-003220E

Shell Size 3 Metal D-Sub Cable Connector Backshell, 11mm Max. Straight or Angled Cable Entry, Shieldable, Metalised Plastic Version, IP20 (kit includes bolts for panel connector)

16-003230E thumbnail

Part no. : 16-003230E

Shell Size 4 Metal D-Sub Cable Connector Backshell, 11mm Max. Straight or Angled Cable Entry, Shieldable, Metalised Plastic Version, IP20 (kit includes bolts for panel connector)

16-003240E thumbnail

Part no. : 16-003240E

Shell Size 5 Metal D-Sub Cable Connector Backshell, 12mm Max. Straight or Angled Cable Entry, Shieldable, Metalised Plastic Version, IP20 (kit includes bolts for panel connector)
