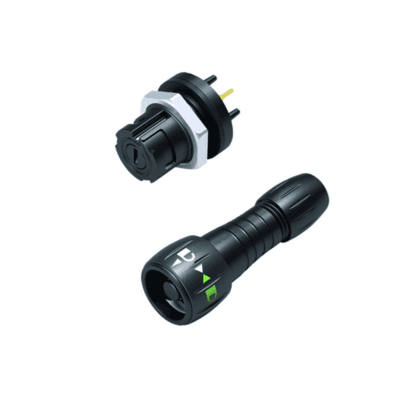

binder Bayonet NCC Subminiature (670 Series)
In brief:
Compact multi-pin circular connector system with bayonet locking mechanism.
NCC Subminiature Bayonet connectors are available in a 5 way format with a current carrying capacity of up to 2A per contact.
The series caters for cable OD’s of up to 5mm, has a wire gauge max. of 0.25mm² and is capable of offering IP67 ingress protection in mated state.
Robust and compact circular connectors from one of the industry’s most trusted brands
The distinctive locking system of the Binder Bayonet NCC allows for over 1000 mating cycles with guaranteed performance which is often much more than that of competitors products.
Available only in an 5 way configuration for now but with further pin counts on the way this Binder connector system really has burst onto the scene with its cutting edge characteristics and aesthetic design.
The system features a receptacle which when disconnected from the mating cable connector is sealed to IP54 with a uniquely designed spring loaded inner insert which pops up to be flush with the outer shell. This design prevents any foreign objects contaminating the contacts when not in use and any water from passing through the connection if placed in a harsh environment without the need of a protection cap.
For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001
We have many products in this series, find what you need using the filters below
6 products match your criteria:
Part no. : 99-0759-010-05

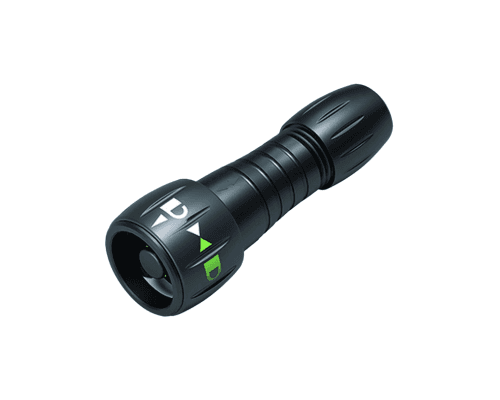

5 Way Bayonet Male Cable Connector with Solder Contacts, 3-5mm Cable Entry, IP67 (670 Series)
Part no. : 09-0762-000-05

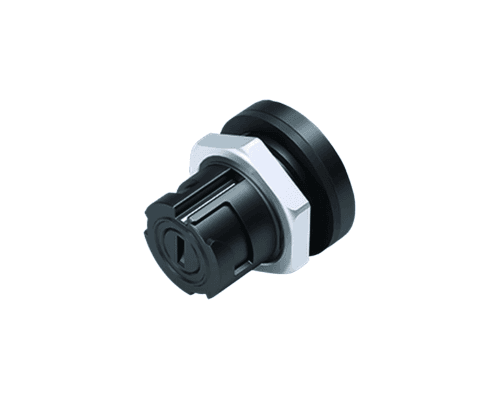

5 Way Bayonet Female Jam-Nut Panel Connector with Solder Contacts, IP67 (670 Series)
Part no. : 09-0762-180-05

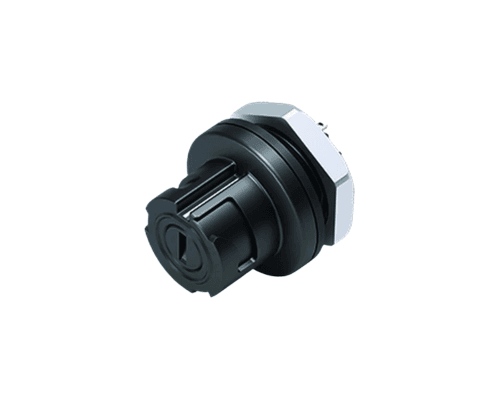

5 Way Bayonet Female Jam-Nut Panel Connector with Solder Contacts, IP67 (670 Series)
Part no. : 09-0762-090-05

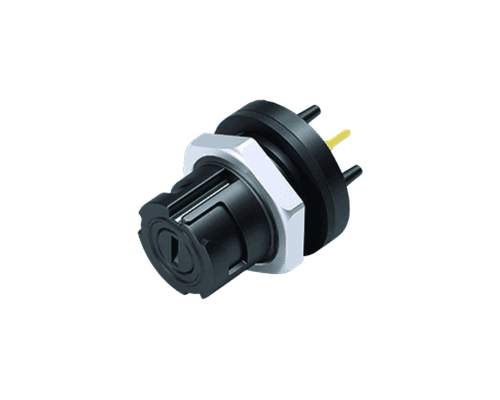

5 Way Bayonet Female Jam-Nut Panel Connector with Dip-Solder Contacts, IP67 (670 Series)
Part no. : 09-0762-190-05
5 Way Bayonet Female Jam-Nut Panel Connector with Dip-Solder Contacts, IP67 (670 Series)
Part no. : 08-0375-000-000

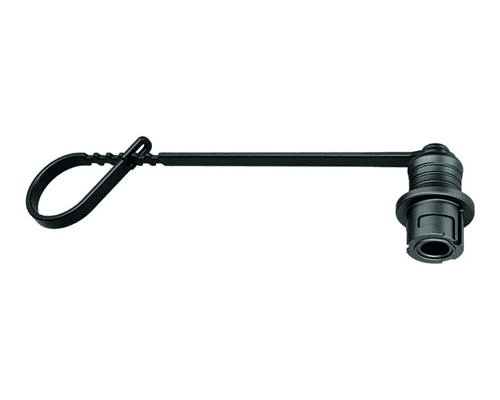

Protection Cover for Cable Connector, with Fixing Rope, IP67 (670 Series)
