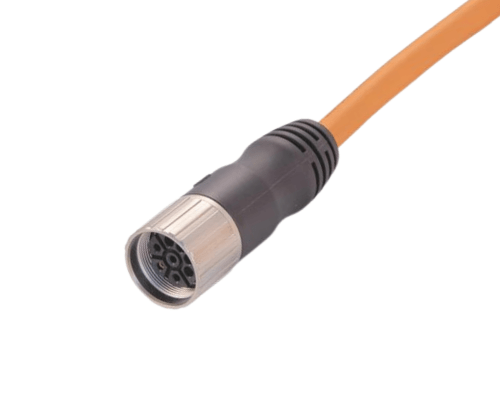

Image may be representative of a range of products, see literature to confirm.
Authorised Partner
of the industry’s leading manufacturers
Credit Accounts
to simplify the ordering process
Scheduled Orders
over a 12-month
period
Technical Expertise
in-house product
specialists
Personalised Support
designated Coordinators for your specific needs
Certification
ISO 9001 quality management system
Series Description
Got a question about this product?Robust circular connector system with industry standard M23x1 screw locking mechanism and IP67 / IP69K ingress protection for use in harsh environments.
M23 Signal & M23 Power/Hybrid connectors offer pin counts from 6-19 with a current carrying capacity of up to 28A.
The series caters for cable OD’s of up to 17mm and a wire gauge max. of 4.00mm²
Technical Specification
- Cable Assembly Type Single Ended
- Cable Jacket Colour Orange
- Cable Jacket Material PUR
- Cable Length 5m
- Cable Operating Temperature -40 to +80°C (fixed)
- Conductor Gauge 16 Awg, 17 Awg
- Connector Operating Temperature -40 to +80°C
- Connector Type 1 6 Way Female
- Connector Type 2 NA
- Contact Plating Silver
- Coupling Area Material Metal
- Current Rating 28A
- Voltage Rating 630V
- Electrical Notes See manufacturers literature for further detail
- Degree of Ingress Protection IP67
- EMC Shield No
- Gender of Insert Female
- Housing Material Thermoplastic Polyurethane
- Keyway/Coding Type Standard
- Locking System Screw
- Min. Mechanical Mating Cycles 1000
- Number of Conductors 6
- Shell Type Cable Connector
