HARTING har-port – service interface connectivity for USB and Ethernet.
Utilising an industry standard M22.5mm panel cut-out the HARTING har-port product range offers customers a selection of connectivity solutions.
With the panel cut out requirements being in line with that used by many other major switch and indicator suppliers, ease of manufacturing of any metal work is guaranteed.
Connection to the internal electronics can be achieved by either the use of an individual HARTING patch lead or by the selection of the har-port variant with an integral pre-terminated cable.
The standard product is IP20 rated but with the addition of a protection cover (available in two styles) IP65/67 can be achieved. A sealing cover for dust protection and a label holder are also available to complete the range of accessories on offer for the HARTING har-port product family.
For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form above or simply call us on 01744 815001
- Type: USB (2.0 A&B, 3.0 A), RJ45
- Locking Mechanism: Latch
- Panel Cut-Out: Standard 22mm
- Panel Thickness: 1-5mm
- Standard Cable Lengths: 0.2-10m
- Ingress Protection: IP20, IP65, IP67
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
HARTING har-port – service interface connectivity for USB and Ethernet.
Utilising an industry standard M22.5mm panel cut-out the HARTING har-port product range offers customers a selection of connectivity solutions.
With the panel cut out requirements being in line with that used by many other major switch and indicator suppliers, ease of manufacturing of any metal work is guaranteed.
Connection to the internal electronics can be achieved by either the use of an individual HARTING patch lead or by the selection of the har-port variant with an integral pre-terminated cable.
The standard product is IP20 rated but with the addition of a protection cover (available in two styles) IP65/67 can be achieved. A sealing cover for dust protection and a label holder are also available to complete the range of accessories on offer for the HARTING har-port product family.
For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form above or simply call us on 01744 815001
- Type: USB (2.0 A&B, 3.0 A), RJ45
- Locking Mechanism: Latch
- Panel Cut-Out: Standard 22mm
- Panel Thickness: 1-5mm
- Standard Cable Lengths: 0.2-10m
- Ingress Protection: IP20, IP65, IP67
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
0945 452 1560
Har-Port Jam-Nut Panel Connector with Integrated Female RJ45 to Female RJ45 Cat. 6A Shielded Coupler, IP20

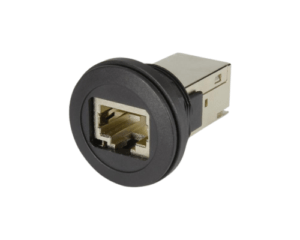

0945 452 1561
Har-Port Jam-Nut Panel Connector with Integrated Female RJ45 to Female RJ45 Cat. 6A Shielded Coupler, Black Version, IP20
0945 452 1500
Har-Port Jam-Nut Panel Connector with Integrated Female RJ45 Cat. 6A to 0.15m Cable with Male RJ45 Cat. 6A, IP20
0945 452 1501
Har-Port Jam-Nut Panel Connector with Integrated Female RJ45 Cat. 6A to 0.2m Cable with Male RJ45 Cat. 6A, IP20
0945 452 1502
Har-Port Jam-Nut Panel Connector with Integrated Female RJ45 Cat. 6A to 0.3m Cable with Male RJ45 Cat. 6A, IP20
0945 452 1503
Har-Port Jam-Nut Panel Connector with Integrated Female RJ45 Cat. 6A to 0.4m Cable with Male RJ45 Cat. 6A, IP20
0945 452 1504
Har-Port Jam-Nut Panel Connector with Integrated Female RJ45 Cat. 6A to 0.5m Cable with Male RJ45 Cat. 6A, IP20
0945 452 1505
Har-Port Jam-Nut Panel Connector with Integrated Female RJ45 Cat. 6A to 0.6m Cable with Male RJ45 Cat. 6A, IP20
0945 452 1506
Har-Port Jam-Nut Panel Connector with Integrated Female RJ45 Cat. 6A to 0.7m Cable with Male RJ45 Cat. 6A, IP20
0945 452 1507
Har-Port Jam-Nut Panel Connector with Integrated Female RJ45 Cat. 6A to 0.8m Cable with Male RJ45 Cat. 6A, IP20
0945 452 1508
Har-Port Jam-Nut Panel Connector with Integrated Female RJ45 Cat. 6A to 0.9m Cable with Male RJ45 Cat. 6A, IP20
0945 452 1509
Har-Port Jam-Nut Panel Connector with Integrated Female RJ45 Cat. 6A to 1m Cable with Male RJ45 Cat. 6A, IP20
0945 452 1510
Har-Port Jam-Nut Panel Connector with Integrated Female RJ45 Cat. 6A to 1.5m Cable with Male RJ45 Cat. 6A, IP20
0945 452 1511
Har-Port Jam-Nut Panel Connector with Integrated Female RJ45 Cat. 6A to 2m Cable with Male RJ45 Cat. 6A, IP20
0945 452 1512
Har-Port Jam-Nut Panel Connector with Integrated Female RJ45 Cat. 6A to 2.5m Cable with Male RJ45 Cat. 6A, IP20
0945 452 1513
Har-Port Jam-Nut Panel Connector with Integrated Female RJ45 Cat. 6A to 3m Cable with Male RJ45 Cat. 6A, IP20
0945 452 1514
Har-Port Jam-Nut Panel Connector with Integrated Female RJ45 Cat. 6A to 3.5m Cable with Male RJ45 Cat. 6A, IP20
0945 452 1515
Har-Port Jam-Nut Panel Connector with Integrated Female RJ45 Cat. 6A to 4m Cable with Male RJ45 Cat. 6A, IP20
0945 452 1516
Har-Port Jam-Nut Panel Connector with Integrated Female RJ45 Cat. 6A to 5m Cable with Male RJ45 Cat. 6A, IP20
0945 452 1517
Har-Port Jam-Nut Panel Connector with Integrated Female RJ45 Cat. 6A to 7.5m Cable with Male RJ45 Cat. 6A, IP20
0945 452 1518
Har-Port Jam-Nut Panel Connector with Integrated Female RJ45 Cat. 6A to 10m Cable with Male RJ45 Cat. 6A, IP20
0945 452 1530
Har-Port Jam-Nut Panel Connector with Integrated Female RJ45 Cat. 6A to 0.15m Cable with Male RJ45 Cat. 6A, IP20

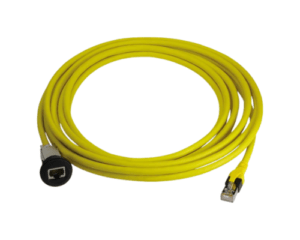

0945 452 1531
Har-Port Jam-Nut Panel Connector with Integrated Female RJ45 Cat. 6A to 0.2m Cable with Male RJ45 Cat. 6A, IP20
0945 452 1532
Har-Port Jam-Nut Panel Connector with Integrated Female RJ45 Cat. 6A to 0.3m Cable with Male RJ45 Cat. 6A, IP20
