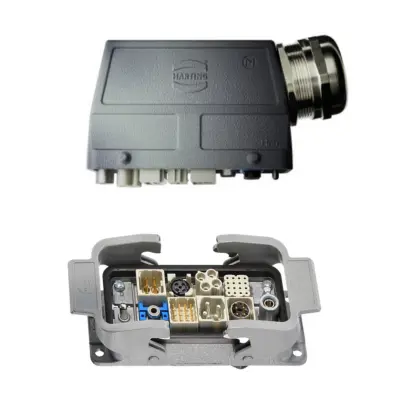

With the Han-Modular® Domino System, HARTING is launching the next level of modular connectors to the market.
It is compatible with the components of the Han-Modular® series, the market standard for modular industrial connectors.
Therefore, the Domino modules can be easily integrated into existing systems; existing frames, hoods and housings or connector modules can be used and complemented.
Just as dominoes have two separate squares, a domino module is made up of two building blocks or cubes. Each domino module consists of a cube with a small tab and a cube with a large tab. The cubes can be flexibly joined to form modules as required.
A Han-Modular® Domino module therefore enables the transmission of power, signals, data or compressed air, as male and female contacts can be combined in one domino module.
- No. of Contacts: 1-448
- Locking Mechanism: Lever, Toggles, Screws
- Contact Termination: Crimp
- Wire Gauge Max: 4.00mm²
- Cable Diameter Range: 5-38mm
- Connector Types: Cable to Panel, Cable to Cable
- Max. Voltage: 32-400V
- Max. Current: 4-16A
- Ingress Protection Max: IP44, IP65, IP67, IP68, IP69K
- Moulded Cable Option: No
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
With the Han-Modular® Domino System, HARTING is launching the next level of modular connectors to the market.
It is compatible with the components of the Han-Modular® series, the market standard for modular industrial connectors.
Therefore, the Domino modules can be easily integrated into existing systems; existing frames, hoods and housings or connector modules can be used and complemented.
Just as dominoes have two separate squares, a domino module is made up of two building blocks or cubes. Each domino module consists of a cube with a small tab and a cube with a large tab. The cubes can be flexibly joined to form modules as required.
A Han-Modular® Domino module therefore enables the transmission of power, signals, data or compressed air, as male and female contacts can be combined in one domino module.
- No. of Contacts: 1-448
- Locking Mechanism: Lever, Toggles, Screws
- Contact Termination: Crimp
- Wire Gauge Max: 4.00mm²
- Cable Diameter Range: 5-38mm
- Connector Types: Cable to Panel, Cable to Cable
- Max. Voltage: 32-400V
- Max. Current: 4-16A
- Ingress Protection Max: IP44, IP65, IP67, IP68, IP69K
- Moulded Cable Option: No
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances

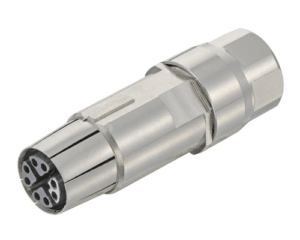

0914 881 2806
Han-Modular 8 Way M12 (X-Coded) Female Insert for Socket Contacts, Metal Union Nut, Shieldable

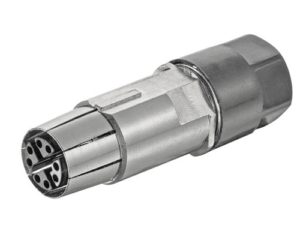

0914 881 2805
Han-Modular 8 Way M12 (X-Coded) Female Insert for Socket Contacts, Shieldable
0914 881 2406

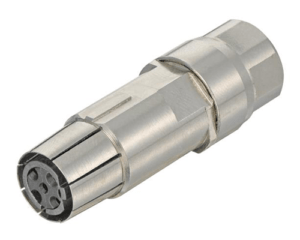

Han-Modular 4 Way M12 (D-Coded) Female Insert for Socket Contacts, Metal Union Nut, Shieldable

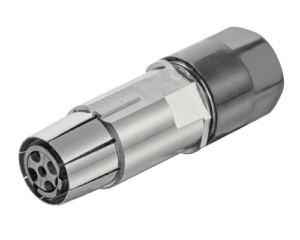

0914 881 2405
Han-Modular 4 Way M12 (D-Coded) Female Insert for Socket Contacts, Shieldable

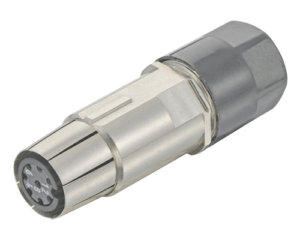

0914 821 2805
Han-Modular 8 Way M12 (A-Coded) Female Insert for Socket Contacts, Shieldable
0914 881 1806

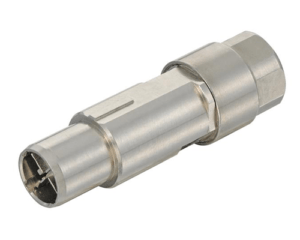

Han-Modular 8 Way M12 (X-Coded) Male Insert for Pin Contacts, Metal Union Nut, Shieldable
0914 881 1805

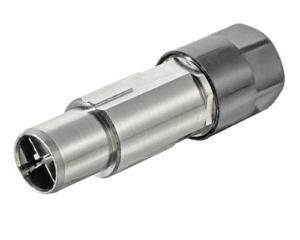

Han-Modular 8 Way M12 (X-Coded) Male Insert for Pin Contacts, Shieldable

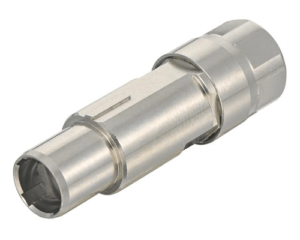

0914 881 1406
Han-Modular 4 Way M12 (D-Coded) Male Insert for Pin Contacts, Metal Union Nut, Shieldable
0914 881 1405
Han-Modular 4 Way M12 (D-Coded) Male Insert for Pin Contacts, Shieldable
0914 821 1805

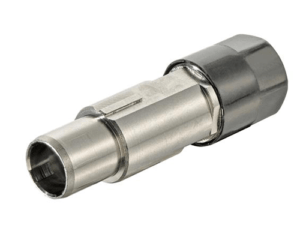

Han-Modular 8 Way M12 (A-Coded) Male Insert for Pin Contacts, Shieldable
0914 900 2000

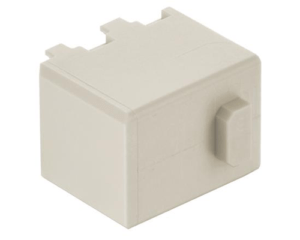

Han-Modular Dummy Module for Empty Slot, Large Tab
0914 900 1000

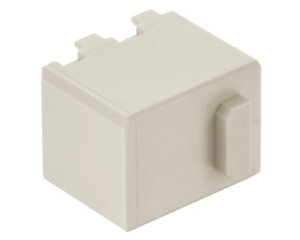

Han-Modular Dummy Module for Empty Slot, Small Tab

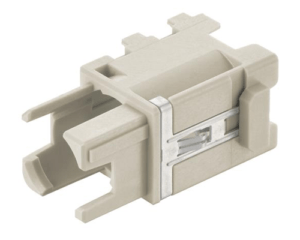

0914 921 2102
Han-Modular-Domino Module for Female M12 Insert, Large Tab, Shieldable

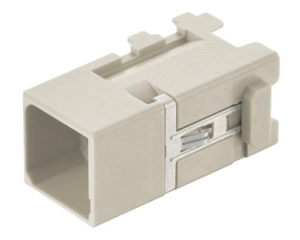

0914 921 2002
Han-Modular-Domino Module for Male M12 Insert, Large Tab, Shieldable
0914 921 1102

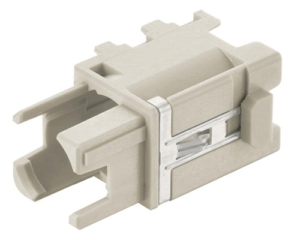

Han-Modular-Domino Module for Female M12 Insert, Small Tab, Shieldable
0914 921 1002

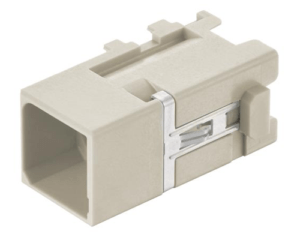

Han-Modular-Domino Module for Male M12 Insert, Small Tab, Shieldable
0914 921 2101

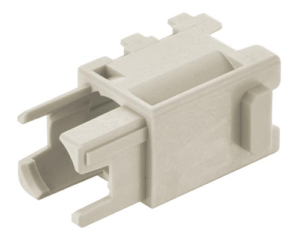

Han-Modular-Domino Module for Female M12 Insert, Large Tab

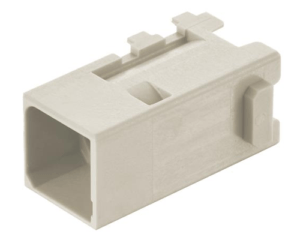

0914 921 2001
Han-Modular-Domino Module for Male M12 Insert, Large Tab
0914 921 1101

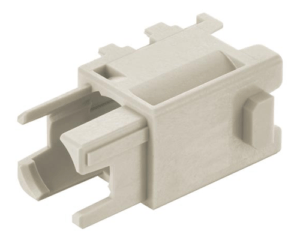

Han-Modular-Domino Module for Female M12 Insert, Small Tab

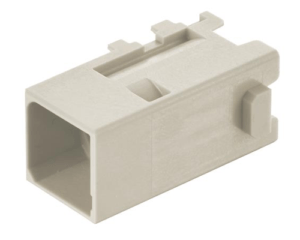

0914 921 1001
Han-Modular-Domino Module for Male M12 Insert, Small Tab
0914 931 2001

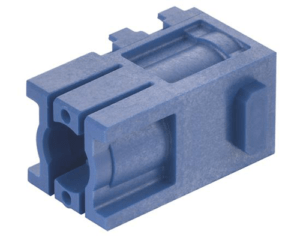

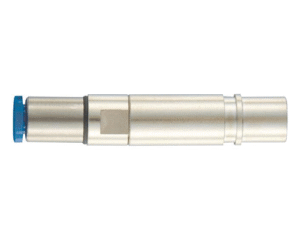

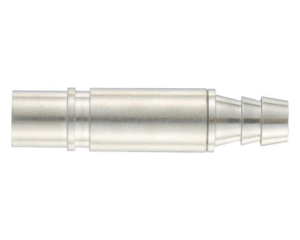

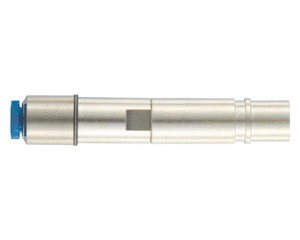

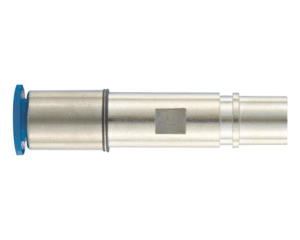

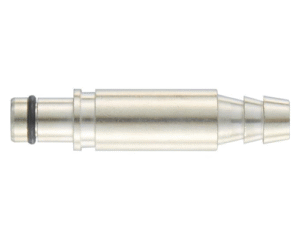

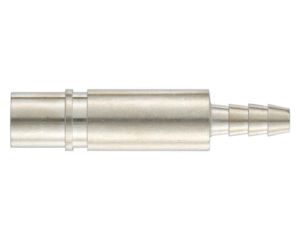

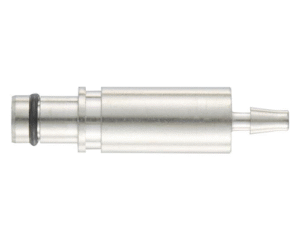

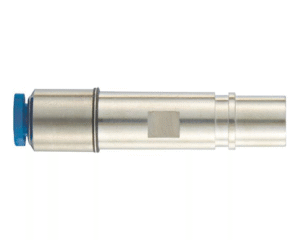

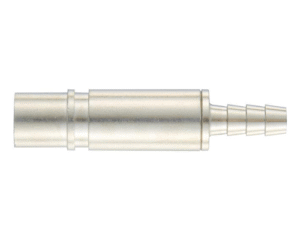

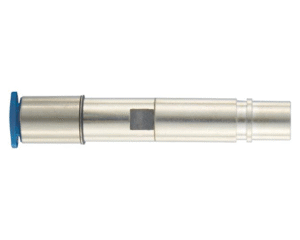

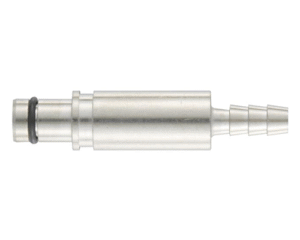

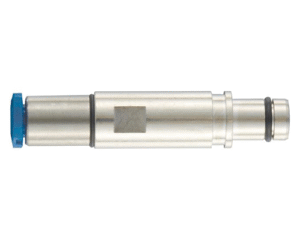

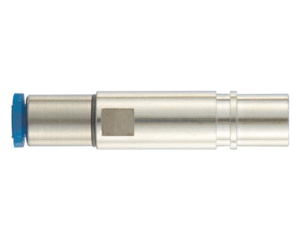

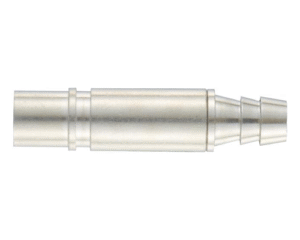

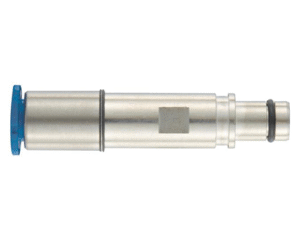

Han-Modular-Domino Module for Pin or Socket Pneumatic Contact, Large Tab

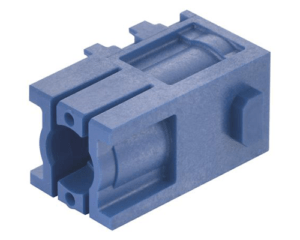

0914 931 1001
Han-Modular-Domino Module for Pin or Socket Pneumatic Contact, Small Tab

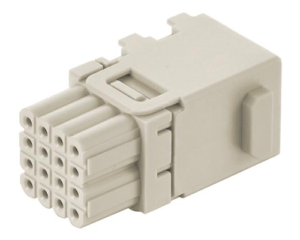

0914 916 2101
Han-Modular-Domino 16 Way Female Module for Socket Contacts, Large Tab, Markings 21-36

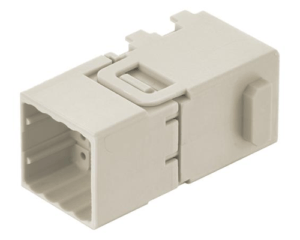

0914 916 2001
Han-Modular-Domino 16 Way Male Module for Pin Contacts, Large Tab, Markings 21-36
