HARTING Han-Compact® is a space‑saving industrial connector system designed to deliver reliable power, signal and data transmission where installation space is limited. As part of the proven Han® rectangular connector family, Han-Compact® combines the robustness required for harsh industrial environments with a significantly reduced form factor. This makes it an ideal choice for modern machine and equipment designs that demand high performance without compromising on panel space, weight or layout flexibility.
The system is based on a modular design concept, allowing different contact types such as power, signal and data to be combined within a single compact housing.
Despite its smaller size, Han-Compact® maintains the high mechanical stability, vibration resistance and ingress protection expected from HARTING connectors, with protection ratings up to IP65 or IP67 when correctly assembled. This ensures dependable operation in demanding applications involving dust, moisture, vibration or frequent mating cycles.
HARTING Han-Compact® connectors are widely used in industrial automation, robotics, machine building and control cabinet construction, where quick installation, easy maintenance and high connection density are essential. By reducing the number and size of connection interfaces, Han Compact helps streamline wiring, simplify assembly and support more compact, efficient machine designs – without sacrificing durability or electrical performance.
For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form above or simply call us on 01744 815001
- No of Contacts: 4-18
- Locking Mechanism: Lever
- Contact Termination: Crimp, Quick-Lock, Axial Screw
- Wire Gauge Max: 10.00mm²
- Cable Diameter Range: 5-18mm
- Connector Types: Cable to Panel, Cable to Cable
- Max. Voltage: 50-690V
- Max. Current: 5-40A
- Ingress Protection Max: IP65
- Pre-wired Options: No
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
HARTING Han-Compact® is a space‑saving industrial connector system designed to deliver reliable power, signal and data transmission where installation space is limited. As part of the proven Han® rectangular connector family, Han-Compact® combines the robustness required for harsh industrial environments with a significantly reduced form factor. This makes it an ideal choice for modern machine and equipment designs that demand high performance without compromising on panel space, weight or layout flexibility.
The system is based on a modular design concept, allowing different contact types such as power, signal and data to be combined within a single compact housing.
Despite its smaller size, Han-Compact® maintains the high mechanical stability, vibration resistance and ingress protection expected from HARTING connectors, with protection ratings up to IP65 or IP67 when correctly assembled. This ensures dependable operation in demanding applications involving dust, moisture, vibration or frequent mating cycles.
HARTING Han-Compact® connectors are widely used in industrial automation, robotics, machine building and control cabinet construction, where quick installation, easy maintenance and high connection density are essential. By reducing the number and size of connection interfaces, Han Compact helps streamline wiring, simplify assembly and support more compact, efficient machine designs – without sacrificing durability or electrical performance.
For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form above or simply call us on 01744 815001
- No of Contacts: 4-18
- Locking Mechanism: Lever
- Contact Termination: Crimp, Quick-Lock, Axial Screw
- Wire Gauge Max: 10.00mm²
- Cable Diameter Range: 5-18mm
- Connector Types: Cable to Panel, Cable to Cable
- Max. Voltage: 50-690V
- Max. Current: 5-40A
- Ingress Protection Max: IP65
- Pre-wired Options: No
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances

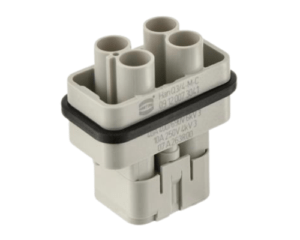

0912 007 3041
Han-Q Size Compact 7 Way Male Insert for Pin Contacts

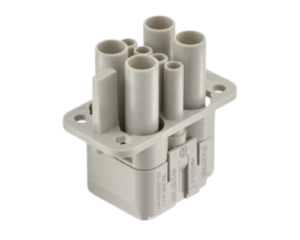

0912 007 3141
Han-Q Size Compact 7 Way Female Insert for Socket Contacts

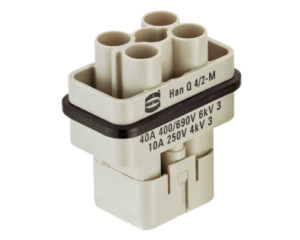

0912 006 3041
Han-Q Size Compact 6 Way Male Insert for Pin Contacts

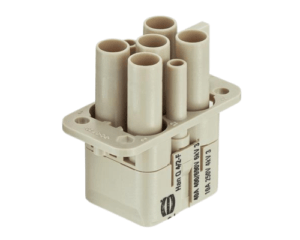

0912 006 3141
Han-Q Size Compact 6 Way Female Insert for Socket Contacts

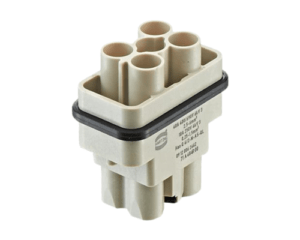

0912 006 2662
Han-Q Size Compact 7 Way Male Insert with Axial Screw Power Contacts & Quick-Lock Signal Contacts
0999 000 0305
Extraction Tool for Han-C 1.50-6.00mm² Contacts
0999 000 0001
Crimp Tool for Han-C, D, E & Yellock Contacts
0999 000 0379
Crimp Tool Adjustment Gauge

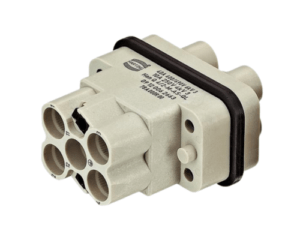

0912 006 2663
Han-Q Size Compact 7 Way Male Insert with Axial Screw Power Contacts & Quick-Lock Signal Contacts
0999 000 0059
Insertion Tool for Han-D Contacts

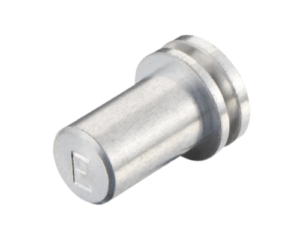

0999 000 0310
Crimp Tool Locator for Han-E Contacts

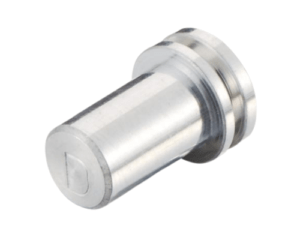

0999 000 0311
Crimp Tool Locator for Han-D Contacts

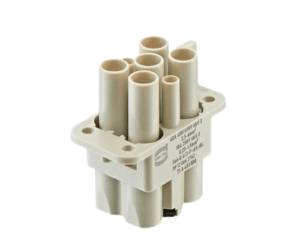

0912 006 2762
Han-Q Size Compact 7 Way Female Insert with Axial Screw Power Contacts & Quick-Lock Signal Contacts

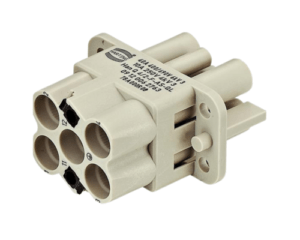

0912 006 2763
Han-Q Size Compact 7 Way Female Insert with Axial Screw Power Contacts & Quick-Lock Signal Contacts

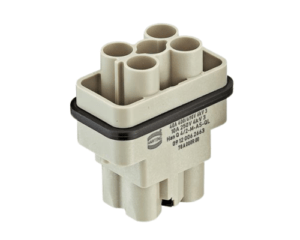

0912 006 2665
Han-Q Size Compact 7 Way Male Insert with Axial Screw Power Contacts, without Signal Contacts

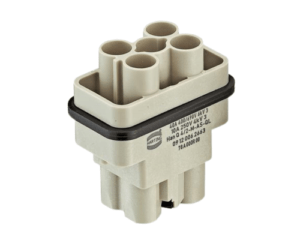

0912 006 2666
Han-Q Size Compact 7 Way Male Insert with Axial Screw Power Contacts, without Signal Contacts

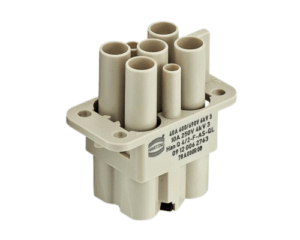

0912 006 2765
Han-Q Size Compact 7 Way Female Insert with Axial Screw Power Contacts, without Signal Contacts

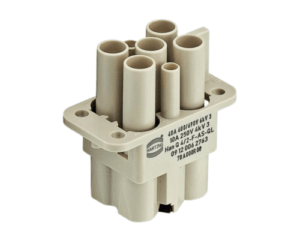

0912 006 2766
Han-Q Size Compact 7 Way Female Insert with Axial Screw Power Contacts, without Signal Contacts

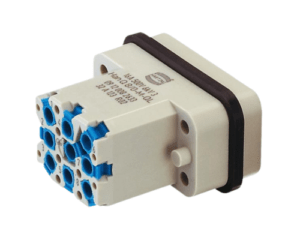

0912 008 2633
Han-Q Size Compact 8 Way Male Insert with Quick-Lock Contacts

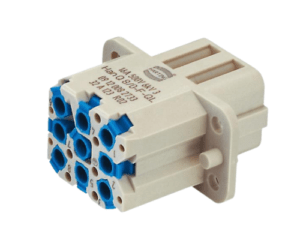

0912 008 2733
Han-Q Size Compact 8 Way Female Insert with Quick-Lock Contacts

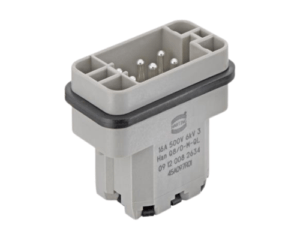

0912 008 2634
Han-Q Size Compact 8 Way Male Insert with Quick-Lock Contacts

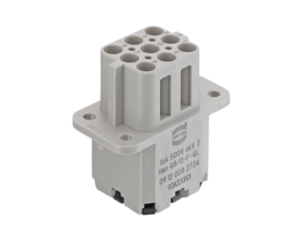

0912 008 2734
Han-Q Size Compact 8 Way Female Insert with Quick-Lock Contacts

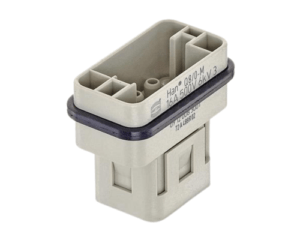

0912 008 3001
Han-Q Size Compact 8 Way Male Insert for Pin Contacts

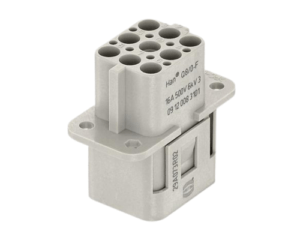

0912 008 3101
Han-Q Size Compact 8 Way Female Insert for Socket Contacts
