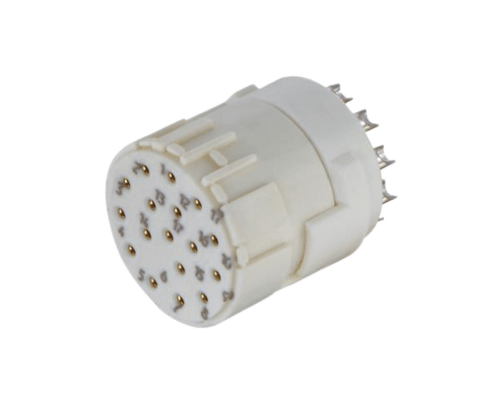

Image may be representative of a range of products, see literature to confirm.
Authorised Partner
of the industry’s leading manufacturers
Credit Accounts
to simplify the ordering process
Scheduled Orders
over a 12-month
period
Technical Expertise
in-house product
specialists
Personalised Support
designated Coordinators for your specific needs
Certification
ISO 9001 quality management system
Series Description
Got a question about this product?Robust circular connector system with industry standard M23x1 screw locking mechanism and IP67 / IP69K ingress protection for use in harsh environments.
M23 Signal & M23 Power/Hybrid connectors offer pin counts from 6-19 with a current carrying capacity of up to 28A.
The series caters for cable OD’s of up to 17mm and a wire gauge max. of 4.00mm²
Technical Specification
- Approvals CSA, UL
- Contact Bearer Material Polyamide
- Contacts Included Yes
- Current Rating 8A
- Voltage Rating 160V
- Electrical Notes Current rating is continuous. Nominal voltage rating according to EN 60664-1, pollution degree 3
- Gender of Contacts Accepted Female
- Max. Wire Gauge/Cross Sectional Area 1.00mm²
- Number of Ways 17
- Operating Temperature -40 to +125°C
- Positive Earth (PE) No
