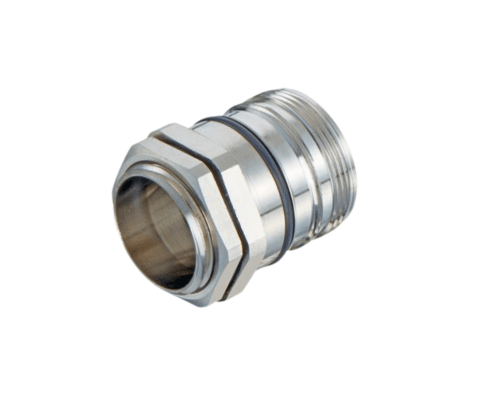

Image may be representative of a range of products, see literature to confirm.
Authorised Partner
of the industry’s leading manufacturers
Credit Accounts
to simplify the ordering process
Scheduled Orders
over a 12-month
period
Technical Expertise
in-house product
specialists
Personalised Support
designated Coordinators for your specific needs
Certification
ISO 9001 quality management system
Series Description
Got a question about this product?Robust circular connector system with industry standard M23x1 screw locking mechanism and IP67 / IP69K ingress protection for use in harsh environments.
M23 Signal & M23 Power/Hybrid connectors offer pin counts from 6-19 with a current carrying capacity of up to 28A.
The series caters for cable OD’s of up to 17mm and a wire gauge max. of 4.00mm²
Technical Specification
- Approvals UL, CSA
- Body Orientation Straight
- Degree of Ingress Protection IP67, IP69K
- EMC Shielding Capability No
- Locking System Screw
- Material Copper-Zinc Alloy
- Min. Mechanical Mating Cycles 1000
- Min. Cable Entry (mm) NA
- Max. Cable Entry (mm) NA
- Mounting Type Panel
