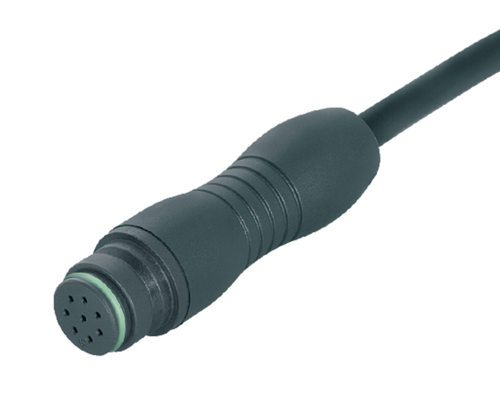

Image may be representative of a range of products, see literature to confirm.
Authorised Partner
of the industry’s leading manufacturers
Credit Accounts
to simplify the ordering process
Scheduled Orders
over a 12-month
period
Technical Expertise
in-house product
specialists
Personalised Support
designated Coordinators for your specific needs
Certification
ISO 9001 quality management system
Sales Description
Got a question about this product?
Technical Specification
- Cable Assembly Type Single Ended
- Cable Jacket Colour Black
- Cable Jacket Material PUR
- Cable Length 2M
- Cable Operating Temperature -40 to +90°C
- Conductor Gauge 0.75mm²
- Connector Operating Temperature -25 to +85°C
- Connector Type 1 5 Way Female
- Connector Type 2 NA
- Contact Plating Gold
- Coupling Area Material Plastic
- Current Rating 5A
- Voltage Rating 125V
- Electrical Notes Rated impluse voltage @ 1500V
- Degree of Ingress Protection IP67
- EMC Sheild No
- Gender of Insert Female
- Housing Material Plastic
- Keyway/Coding Type Standard
- Locking System Snap-in
- Min. Mechanical Mating Cycles 500
- Number of Conductors 5
- Shell Type Cable Connector
