Sales Description

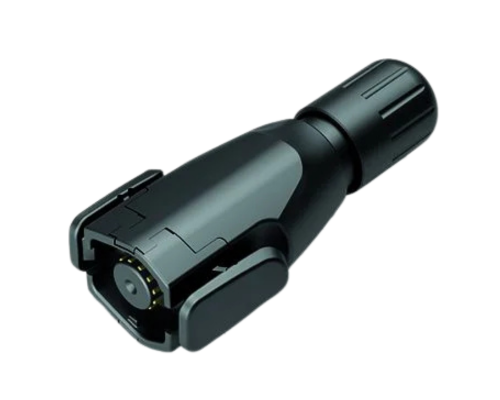

Got a question about this product?Robust multi-pin rectangular connector system with latch locking mechanism.
Snap-in ELC connectors are available in a 12 way format with a current carrying capacity of up to 2A per contact.
The series caters for cable OD’s of up to 8mm, has a wire gauge max. of 0.25mm² and is capable of offering IP54 ingress protection in mated state.
Technical Specification
- Backshell Included Yes
- Body Orientation Straight
- Connector Type Cable Connector
- Contact Plating Gold
- Contacts Included Yes
- Coupling Area Material Plastic
- Current Rating 2A
- Voltage Rating 150V
- Electrical Notes Polution Degree 4
- Degree of Ingress Protection IP54
- EMC Sheilding Capability No
- Gender of Insert Male
- Housing Material Plastic
- Keyway/Coding Type Standard
- Locking System Latch
- Min. Mechanical Mating Cycles 5000
- Max. Wire Gauge/Cross Sectional Area 0.25mm²
- Min. Cable Entry (mm) 6
- Max. Cable Entry (mm) 8
- Number of Ways 12
- Operating Temperature -25°C to 85°C
- Positive Earth (PE) No
- Termination Method/Technology Solder
