binder / Push-Pull Miniature (440 Series)

5 Way Push-Pull Male Jam-Nut Panel Connector with Solder Contacts, IP40 (440 Series)

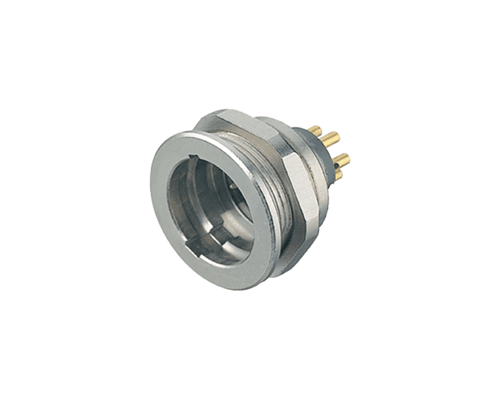

09-4815-25-05 thumbnailImage may be representative of a range of products, see literature to confirm

Available Downloads

Quick Quote

Technical Specification

Part Number09-4815-25-05
Product TypeConnector
Connector SeriesPush-Pull Miniature (440 Series)
Backshell IncludedNo
Body OrientationStraight
Connector TypePanel Connector
Contact PlatingGold
Contacts IncludedYes
Coupling Area MaterialMetal
Current Rating6A
Voltage Rating150V
Electrical Notes250V for Polution Degree 1
Degree of Ingress ProtectionIP67
EMC Shielding CapabilityYes
Gender of InsertMale
Housing MaterialMetal
Keyway/Coding TypeStandard
Locking SystemPush-Pull
Min. Mechanical Mating Cycles1000
Max. Wire Gauge/Cross-Sectional Area0.75mm²
Min. Cable Entry (mm)NA
Max. Cable Entry (mm)NA
Number of Ways5
Operating Temperature-25 to +85°C
Positive Earth (PE)No
Shell sizeNA
Termination Method/TechnologySolder

About this Series

binder connectors

Robust and compact circular connectors from one of the industry’s most trusted brands

In brief:

Compact multi-pin circular connector system with Push-Pull locking mechanism.

Push-Pull miniature connectors offer pin-counts from 3 to 19 with a current carrying capacity of up to 7A per contact.

The series caters for cable OD’s of up to 8mm, has a wire gauge max. of 0.75mm² and is capable of offering IP67 ingress protection in mated state or with the use of a protection cover.

Binder Push-Pull Miniature Connectors 440 series

The binder Push-Pull miniature 440 series is a compact range of plastic bodied circular connectors with a simple but secure locking mechanism ideal for applications with restricted space.

The series has nine different layouts ranging from 3-19 ways in both male and female cable connectors and mating panel receptacles offering both IP40 and IP67 ingress protection.

The connectors allow a max wire gauge of 0.25mm² on 12, 14 and 19 way variants but cater for a larger wire gauge of up to 0.75mm² on 3-8 way options. Cable connectors cater for 4-8mm cable OD and allow for shielding. Panel receptacles are available in both front and rear fastened which further widens their scope.

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001
