Sales Description

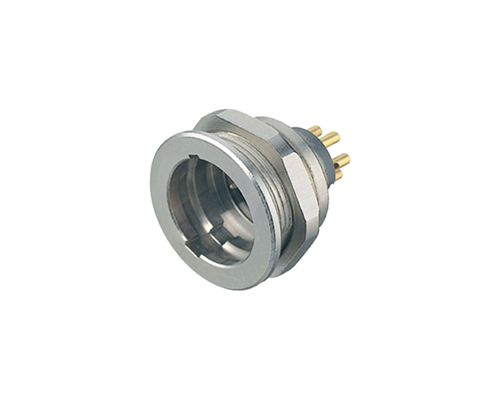

Got a question about this product?Compact multi-pin circular connector system with Push-Pull locking mechanism.
Push-Pull miniature connectors offer pin-counts from 3 to 19 with a current carrying capacity of up to 7A per contact.
The series caters for cable OD’s of up to 8mm, has a wire gauge max. of 0.75mm² and is capable of offering IP67 ingress protection in mated state or with the use of a protection cover.
Technical Specification
- Backshell Included No
- Body Orientation Straight
- Connector Type Panel Connector
- Contact Plating Gold
- Contacts Included Yes
- Coupling Area Material Metal
- Current Rating 5A
- Voltage Rating 32V
- Electrical Notes 60V for Polution Degree 1
- Degree of Ingress Protection IP67
- EMC Sheilding Capability Yes
- Gender of Insert Male
- Housing Material Metal
- Keyway/Coding Type Standard
- Locking System Push-Pull
- Min. Mechanical Mating Cycles 1000
- Max. Wire Gauge/Cross Sectional Area 0.75mm²
- Min. Cable Entry (mm) NA
- Max. Cable Entry (mm) NA
- Number of Ways 8
- Operating Temperature -25 to +85°C
- Positive Earth (PE) No
- Shell Size NA
- Termination Method/Technology Solder
