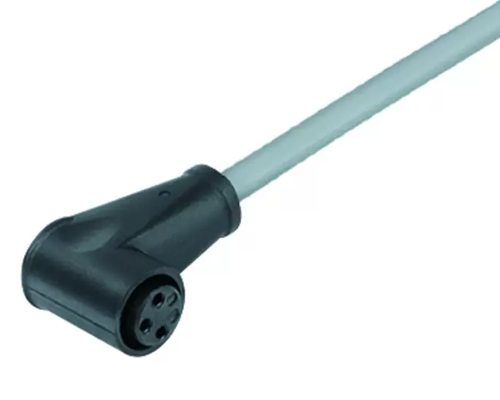

Image may be representative of a range of products, see literature to confirm.
Authorised Partner
of the industry’s leading manufacturers
Credit Accounts
to simplify the ordering process
Scheduled Orders
over a 12-month
period
Technical Expertise
in-house product
specialists
Personalised Support
designated Coordinators for your specific needs
Certification
ISO 9001 quality management system
Sales Description
Got a question about this product?Compact circular connector system with industry standard IEC 61076-2-104 M8x1 screw locking interface.
M8 A-Coded connectors offer pin-counts from 3 to 12 with a current carrying capacity of up to 4A per contact.
The series caters for cable OD’s of up to 5mm, has a wire gauge max. of 0.50mm² and is capable of offering IP65 & IP67 ingress protection in mated state or with the use of a protection cover.
Technical Specification
- Cable Assembly Type Single Ended
- Cable Jacket Colour Grey
- Cable Jacket Material PVC
- Cable Length 5m
- Cable Operating Temperature -25 to +70°C (fixed), -5 to +70°C (flex)
- Conductor Gauge 0.25mm²
- Connector Operating Temperature -25 to +70°C
- Connector Type 1 3 Way Female
- Connector Type 2 NA
- Contact Plating Gold
- Coupling Area Material Plastic
- Current Rating 4A
- Voltage Rating 60V
- Electrical Notes See literature for derating curves
- Degree of Ingress Protection IP67
- EMC Sheild No
- Gender of Insert Female
- Housing Material Plastic
- Keyway/Coding Type A-Coded
- Locking System Snap-in
- Min. Mechanical Mating Cycles 50
- Number of Conductors 3
- Shell Type Cable Connector
