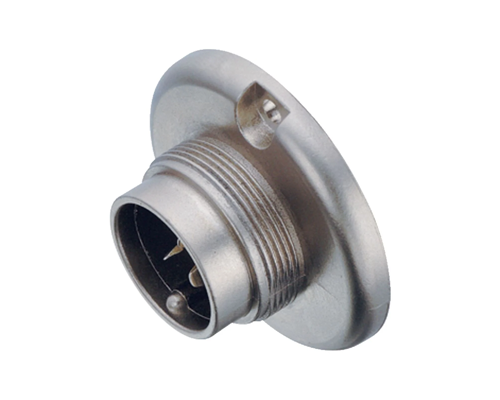

Image may be representative of a range of products, see literature to confirm.
Authorised Partner
of the industry’s leading manufacturers
Credit Accounts
to simplify the ordering process
Scheduled Orders
over a 12-month
period
Technical Expertise
in-house product
specialists
Personalised Support
designated Coordinators for your specific needs
Certification
ISO 9001 quality management system
Sales Description
Got a question about this product?Robust multi-pin circular connector system with Screw locking mechanism.
M25 Power connectors offer pin-counts from 3 to 12 with a current carrying capacity of up to 10A per contact.
The series caters for cable OD’s of up to 8mm, has a wire gauge max. of 1.50mm² and is capable of offering IP40 ingress protection in mated state.
Technical Specification
- Backshell Included NA
- Body Orientation Straight
- Connector Type Panel Connector
- Contact Plating Silver
- Contacts Included Yes
- Coupling Area Material Metal
- Current Rating 10A
- Voltage Rating 250V
- Electrical Notes See literature for derating curves
- Degree of Ingress Protection IP40
- EMC Sheilding Capability No
- Gender of Insert Male
- Housing Material Metal
- Keyway/Coding Type Standard
- Locking System Screw
- Min. Mechanical Mating Cycles 500
- Max. Wire Gauge/Cross Sectional Area 1.50mm²
- Min. Cable Entry (mm) NA
- Max. Cable Entry (mm) NA
- Number of Ways 3
- Operating Temperature -40°C to 85°C
- Positive Earth (PE) No
- Shell Size NA
- Termination Method/Technology Solder
