Sales Description

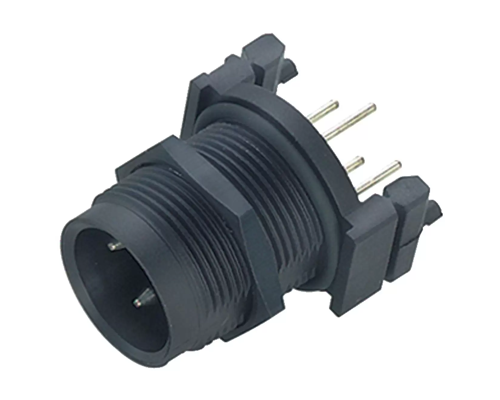

Got a question about this product?Robust multi-pin circular connector system with industry standard M18x1 screw locking functionality.
M18 connectors are available in a 4 way format with a current carrying capacity of up to 16A per contact.
The series caters for cable OD’s of up to 12mm, has a wire gauge max. of 1.50mm² and is capable of offering IP67 ingress protection in mated state.
Technical Specification
- Backshell Included No
- Body Orientation Straight
- Connector Type Panel Connector
- Contact Plating Optalloy
- Contacts Included Yes
- Coupling Area Material Plastic
- Current Rating 5A
- Voltage Rating 250V
- Electrical Notes 4000V Rated impulse voltage
- Degree of Ingress Protection IP67
- EMC Sheilding Capability No
- Gender of Insert Male
- Housing Material Plastic
- Keyway/Coding Type Standard
- Locking System Screw
- Min. Mechanical Mating Cycles 50
- Max. Wire Gauge/Cross Sectional Area NA
- Min. Cable Entry (mm) NA
- Max. Cable Entry (mm) NA
- Number of Ways 4
- Operating Temperature -25 to +85°C
- Positive Earth (PE) No
- Shell Size NA
- Termination Method/Technology Dip-Solder
