99-5609-15-04

binder / M16 IP67 (423, 723, 425 Series)

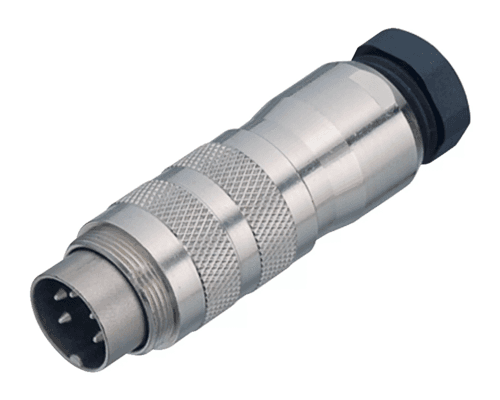

4 Way M16 Male Cable Connector with Solder Contacts, 6-8mm Straight Cable Entry, Shieldable, IP67 (423 Series)

99-5609-15-04 thumbnailImage may be representative of a range of products, see literature to confirm

Available Downloads

Quick Quote

Technical Specification

Part Number99-5609-15-04
Product TypeConnector
Brandbinder
Connector SeriesM16 IP67 (423, 723, 425 Series)
ApprovalsUL
Backshell IncludedYes
Body OrientationStraight
Connector TypeCable Connector
Contact PlatingSilver
Contacts IncludedYes
Coupling Area MaterialMetal
Current Rating6A
Voltage Rating150V
Electrical Notes250V for Polution Degree 1
Degree of Ingress ProtectionIP67
EMC Shielding CapabilityYes
Gender of InsertMale
Housing MaterialMetal
Keyway/Coding TypeStandard
Locking SystemScrew
Min. Mechanical Mating Cycles500
Max. Wire Gauge/Cross-Sectional Area0.75mm²
Min. Cable Entry (mm)6
Max. Cable Entry (mm)8
Number of Ways4
Operating Temperature-30 to +95°C
Positive Earth (PE)No
Shell sizeNA
Termination Method/TechnologySolder

About this Series

binder connectors

Robust and compact circular connectors from one of the industry’s most trusted brands

In brief:

Compact multi-pin circular connector system with Industry Standard M16x0.75 screw locking interface.

M16 IP67 connectors offer pin-counts from 2 to 24 with a current carrying capacity of up to 7A per contact.

The series caters for cable OD’s of up to 10mm, has a wire gauge max. of 1.50mm² and is capable of offering IP67 ingress protection in mated state or with the use of a protection cover.

Binder M16 IP67 Miniature Connectors (423, 723, 425)

binder's M16 IP67 miniature connector series are a wide range of industrial waterproof circulars with rugged shells and with a variety of pin counts.

The M16 series is historically one of binder's most popular ranges due to its fine balance of cost, durability and versatility.

The M16 IP67 series is one of the widest ranges in the Binder portfolio and there are many options including cable versions with straight or angled orientation, short or longer bodies, shieldable or non-shieldable backshells and with solder, screw or crimp termination. The series also boasts a variant which is black in colour therefore non-reflective for covert applications and with a higher level of corrosion resistance.

Panel receptacles are available in either front or rear fastened, with solder cup or crimp contacts or with dip solder pins or flexible PCB for board use.

The series offers a lot of scope with pin counts ranging from 2-8 way with 1.50mm² wire gauge, 12-19 way with 0.25mm² wire gauge and a high density option of 24 way with 0.14mm² wire gauge.

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001
