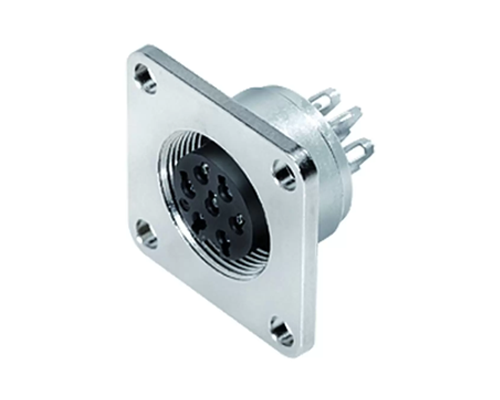

Image may be representative of a range of products, see literature to confirm.
Authorised Partner
of the industry’s leading manufacturers
Credit Accounts
to simplify the ordering process
Scheduled Orders
over a 12-month
period
Technical Expertise
in-house product
specialists
Personalised Support
designated Coordinators for your specific needs
Certification
ISO 9001 quality management system
Sales Description
Got a question about this product?Compact multi-pin circular connector system with Industry Standard M16x0.75 screw locking interface.
M16 IP67 connectors offer pin-counts from 2 to 24 with a current carrying capacity of up to 7A per contact.
The series caters for cable OD’s of up to 10mm, has a wire gauge max. of 1.50mm² and is capable of offering IP67 ingress protection in mated state or with the use of a protection cover.
Technical Specification
- Approvals UL
- Backshell Included No
- Body Orientation Straight
- Connector Type Panel Connector
- Contact Plating Silver
- Contacts Included Yes
- Coupling Area Material Metal
- Current Rating 6A
- Voltage Rating 150V
- Electrical Notes 250V for Polution Degree 1
- Degree of Ingress Protection IP67
- EMC Sheilding Capability Yes
- Gender of Insert Female
- Housing Material Metal
- Keyway/Coding Type Standard
- Locking System Screw
- Min. Mechanical Mating Cycles 500
- Max. Wire Gauge/Cross Sectional Area 0.75mm²
- Min. Cable Entry (mm) NA
- Max. Cable Entry (mm) NA
- Number of Ways 4
- Operating Temperature -30 to +95°C
- Positive Earth (PE) No
- Shell Size NA
- Termination Method/Technology Solder
