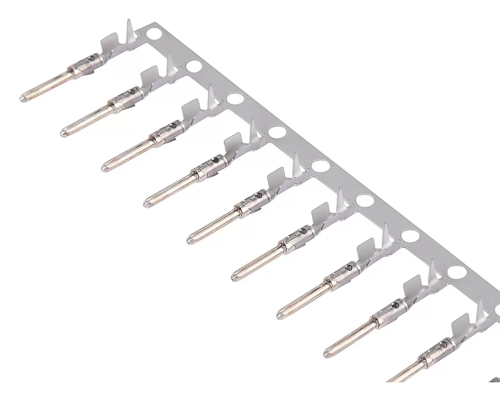

Image may be representative of a range of products, see literature to confirm.
Authorised Partner
of the industry’s leading manufacturers
Credit Accounts
to simplify the ordering process
Scheduled Orders
over a 12-month
period
Technical Expertise
in-house product
specialists
Personalised Support
designated Coordinators for your specific needs
Certification
ISO 9001 quality management system
Sales Description
Got a question about this product?Robust multi-pin circular connector system with with Bayonet locking mechanism.
HEC connectors offer pin-counts of 5 to 12 with a current carrying capacity of up to 32A per contact.
The series caters for cable OD’s of up to 17mm, has a wire gauge max. of 6.00mm² and is capable of offering IP68 & IP69K ingress protection in mated state or with the use of a protection cover.
Technical Specification
- Construction Stamped & Formed
- Delivered On Reel Yes
- Max. Wire Gauge/Cross Sectional Area 1.00mm²
- Plating Silver
- Required Cavity Size 1.5mm
- Termination Method/Technology Crimp
- Typical Pack Size 2000
