08-2434-400-001

binder / Snap-in Miniature (720 Medical Application Series)

Adaptor for Panel Mount Connector, Front-fastened (720 Medical Series)

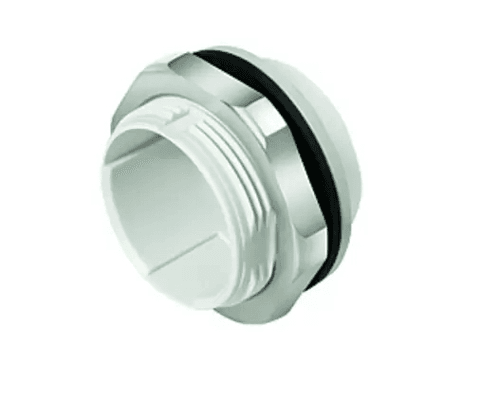

08-2434-400-001 thumbnailImage may be representative of a range of products, see literature to confirm

Available Downloads

Quick Quote

Technical Specification

Part Number08-2434-400-001
Product TypeAccessory
BrandBinder
Connector SeriesSnap-in Miniature (720 Medical Series)
Accessory TypeMounting Adapter

About this Series

binder connectors

Robust and compact circular connectors from one of the industry’s most trusted brands

In brief:

Compact multi-pin circular connector system with Snap-in locking mechanism.

Snap-in miniature IP67 connectors offer pin-counts from 3 to 12 with a current carrying capacity of up to 7A per contact.

The series caters for cable OD’s of up to 8mm, has a wire gauge max. of 0.75mm² and is capable of offering IP67 ingress protection in mated state or with the use of a protection cover.

Binder Snap-in Miniature Connectors for Medical Applications  720

The binder snap-in IP67 series is a fantastic range of waterproof miniature connectors suitable for harsh environments that require a simple locking mechanism.

The original 720 series comes in black as standard but this new introduction aimed at the medical market means the range now also boasts white/grey variants similar to that of RAL 9002.

The field attachable cable connectors have solder cup termination and can be mated in-line for an extension piece or coupled with the solder cup or dip solder panel receptacles. Two metre single ended overmoulded cable versions are also available on request in all pin configurations.

The 720 series has a unique option on the panel receptacle which is front mount / rear fastened as standard. With two optional panel adapters the receptacles can be either switched to be rear mount / front fastened or flush mounted to reduce the chances of accidental damage.

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001
