99-9211-400-04

binder / Snap-in Subminiature (620 Medical Application Series)

4 Way Snap-in Male Jam-Nut Panel Connector with Solder Contacts, IP67 (620 Medical Series)

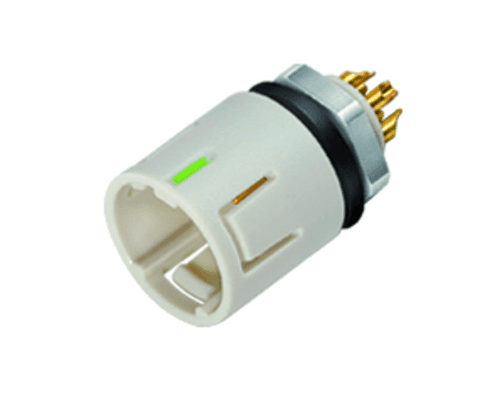

99-9211-400-04 thumbnailImage may be representative of a range of products, see literature to confirm

Available Downloads

Quick Quote

Technical Specification

Part Number99-9211-400-04
Product TypeConnector
BrandBinder
Connector SeriesSnap-in Subminiature (620 Medical Series)
Backshell IncludedNo
Body OrientationStraight
Connector TypePanel Connector
Contact PlatingGold
Contacts IncludedYes
Coupling Area MaterialPlastic
Current Rating2.5A
Voltage Rating125V
Electrical NotesRated impluse voltage @ 1500V
Degree of Ingress ProtectionIP67
EMC Shielding CapabilityNo
Gender of InsertMale
Housing MaterialPlastic
Keyway/Coding TypeStandard
Locking SystemSnap-in
Min. Mechanical Mating Cycles500
Max. Wire Gauge/Cross-Sectional Area0.25mm²
Min. Cable Entry (mm)NA
Max. Cable Entry (mm)NA
Number of Ways4
Operating Temperature-25 to +85°C
Positive Earth (PE)No
Shell sizeNA
Termination Method/TechnologySolder

About this Series

binder connectors

Robust and compact circular connectors from one of the industry’s most trusted brands

In brief:

Compact multi-pin circular connector system with Snap-in locking mechanism.

Snap-in subminiature IP67 connectors offer pin-counts from 3 to 8 with a current carrying capacity of up to 3A per contact.

The series caters for cable OD’s of up to 5mm, has a wire gauge max. of 0.25mm² and is capable of offering IP67 ingress protection in mated state or with the use of a protection cover.

Binder Snap-in Subminiature Connectors for Medical Applications 620

The binder snap-in IP67 series is a fantastic range of waterproof subminiature connectors suitable for harsh environments that require a simple locking mechanism.

The original 620 series comes in black as standard but this new introdction aimed at the medical market means the range now also boasts white/grey variants similar to that of RAL 9002.

The field attachable cable connectors have solder cup termination and can be mated in-line for an extension piece or coupled with the solder cup or dip solder panel receptacles.

The 620 series has a unique option on the panel receptacle which is front mount / rear fastened as standard.  With two optional panel adapters the receptacles can be either switched to be rear mount / front fastened or flush mounted to reduce the chances of accidental damage.

For a more detailed description of this connector series please see the manufacturer's brochure which is available to download above.
