binder Snap-in IP40 Subminiature (719, 709 Series)

Binder Snap-in IP40 Subminiature Connectors (719, 709 Series)

In brief:

Compact multi-pin circular connector system with Snap-in locking mechanism.

Snap-in subminiature IP40 connectors offer pin-counts from 3 to 5 with a current carrying capacity of up to 3A per contact.

The series caters for cable OD’s of up to 5mm, has a wire gauge max. of 0.25mm² and is capable of offering IP40 ingress protection in mated state.

binder connectors

Robust and compact circular connectors from one of the industry’s most trusted brands

DownloadDownload Brochure

The binder snap-in IP40 series is a small range of subminiature connectors suitable for low-cost applications that require a simple locking mechanism.

The series offers field attachable cable versions with or without strain relief in 3, 4 and 5 way with solder cup termination or as a single ended overmould in 2 & 5 metres as standard.

Panel mount receptacles come with termination options of both solder and dip solder for PCB use.

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001.

We have many products in this series, find what you need using the filters below

39 products match your criteria:

09-9747-00-03 thumbnail

Part no. : 09-9747-00-03

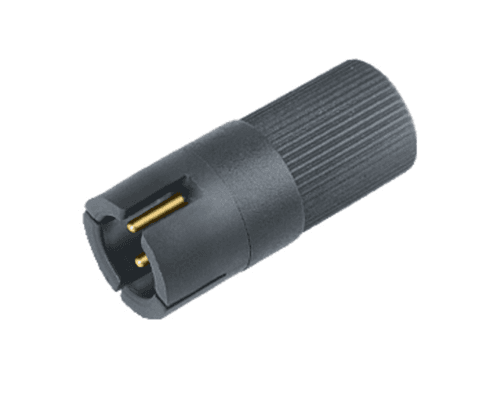

3 Way Snap-in Male Cable Connector with Solder Contacts, 3.6mm Max. Straight Cable Entry, IP40 (719 Series)

09-9767-00-04 thumbnail

Part no. : 09-9767-00-04

4 Way Snap-in Male Cable Connector with Solder Contacts, 3.6mm Max. Straight Cable Entry, IP40 (719 Series)

09-9789-00-05 thumbnail

Part no. : 09-9789-00-05

5 Way Snap-in Male Cable Connector with Solder Contacts, 3.6mm Max. Straight Cable Entry, IP40 (719 Series)

09-9747-70-03 thumbnail

Part no. : 09-9747-70-03

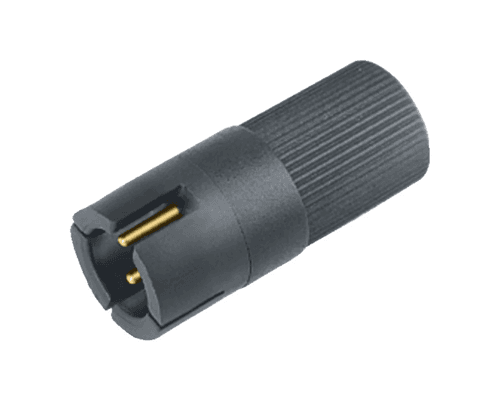

3 Way Snap-in Male Cable Connector with Solder Contacts, 3-4mm Straight Cable Entry, IP40 (719 Series)

09-9747-71-03 thumbnail

Part no. : 09-9747-71-03

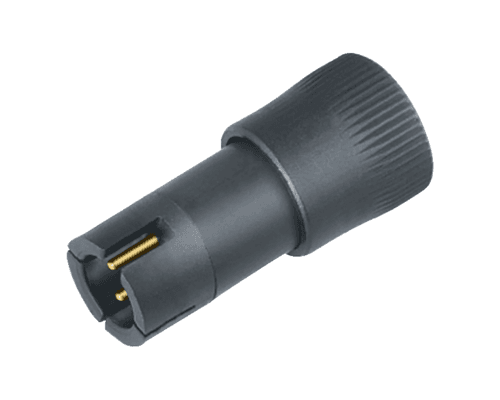

3 Way Snap-in Male Cable Connector with Solder Contacts, 4-5mm Straight Cable Entry, IP40 (719 Series)

09-9767-70-04 thumbnail

Part no. : 09-9767-70-04

4 Way Snap-in Male Cable Connector with Solder Contacts, 3-4mm Straight Cable Entry, IP40 (719 Series)

09-9767-71-04 thumbnail

Part no. : 09-9767-71-04

4 Way Snap-in Male Cable Connector with Solder Contacts, 4-5mm Straight Cable Entry, IP40 (719 Series)

09-9789-71-05 thumbnail

Part no. : 09-9789-71-05

5 Way Snap-in Male Cable Connector with Solder Contacts, 4-5mm Straight Cable Entry, IP40 (719 Series)

09-9748-00-03 thumbnail

Part no. : 09-9748-00-03

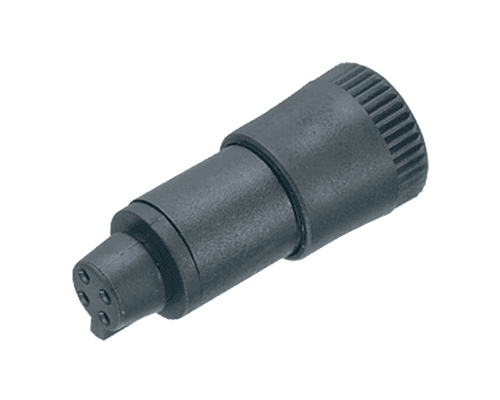

3 Way Snap-in Female Cable Connector with Solder Contacts, 3.6mm Max. Straight Cable Entry, IP40 (719 Series)

09-9764-00-04 thumbnail

Part no. : 09-9764-00-04

4 Way Snap-in Female Cable Connector with Solder Contacts, 3.6mm Max. Straight Cable Entry, IP40 (719 Series)

09-9790-00-05 thumbnail

Part no. : 09-9790-00-05

5 Way Snap-in Female Cable Connector with Solder Contacts, 3.6mm Max. Straight Cable Entry, IP40 (719 Series)

09-9748-70-03 thumbnail

Part no. : 09-9748-70-03

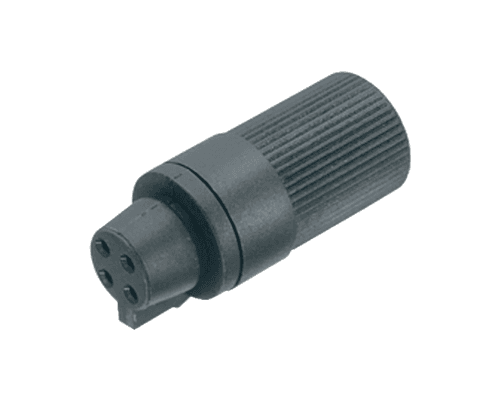

3 Way Snap-in Female Cable Connector with Solder Contacts, 3-4mm Straight Cable Entry, IP40 (719 Series)

09-9748-71-03 thumbnail

Part no. : 09-9748-71-03

3 Way Snap-in Female Cable Connector with Solder Contacts, 4-5mm Straight Cable Entry, IP40 (719 Series)

09-9764-70-04 thumbnail

Part no. : 09-9764-70-04

4 Way Snap-in Female Cable Connector with Solder Contacts, 3-4mm Straight Cable Entry, IP40 (719 Series)

09-9764-71-04 thumbnail

Part no. : 09-9764-71-04

4 Way Snap-in Female Cable Connector with Solder Contacts, 4-5mm Straight Cable Entry, IP40 (719 Series)

09-9790-71-05 thumbnail

Part no. : 09-9790-71-05

5 Way Snap-in Female Cable Connector with Solder Contacts, 4-5mm Straight Cable Entry, IP40 (719 Series)

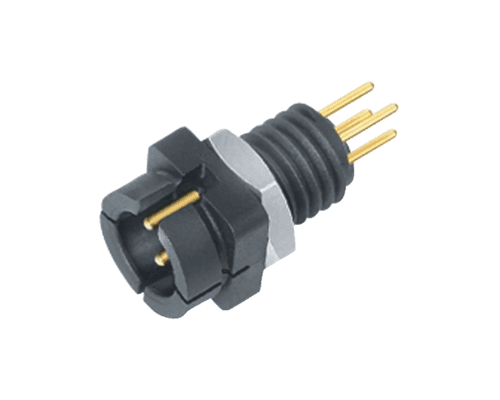

09-9749-30-03 thumbnail

Part no. : 09-9749-30-03

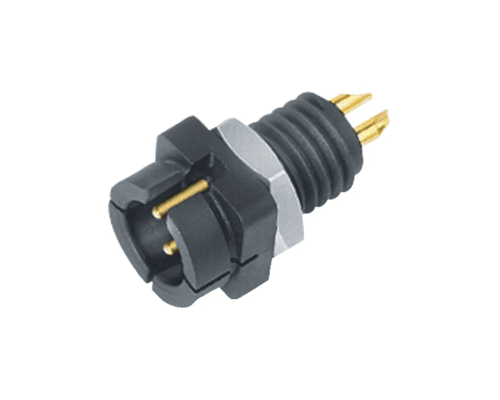

3 Way Snap-in Male Jam-Nut Panel Connector with Solder Contacts, IP40 (719 Series)

09-9765-30-04 thumbnail

Part no. : 09-9765-30-04

4 Way Snap-in Male Jam-Nut Panel Connector with Solder Contacts, IP40 (719 Series)

09-9791-30-05 thumbnail

Part no. : 09-9791-30-05

5 Way Snap-in Male Jam-Nut Panel Connector with Solder Contacts, IP40 (719 Series)

09-9749-20-03 thumbnail

Part no. : 09-9749-20-03

3 Way Snap-in Male Jam-Nut Panel Connector with Dip-Solder Contacts, IP40 (719 Series)

09-9765-20-04 thumbnail

Part no. : 09-9765-20-04

4 Way Snap-in Male Jam-Nut Panel Connector with Dip-Solder Contacts, IP40 (719 Series)

09-9791-20-05 thumbnail

Part no. : 09-9791-20-05

5 Way Snap-in Male Jam-Nut Panel Connector with Dip-Solder Contacts, IP40 (719 Series)

09-9750-30-03 thumbnail

Part no. : 09-9750-30-03

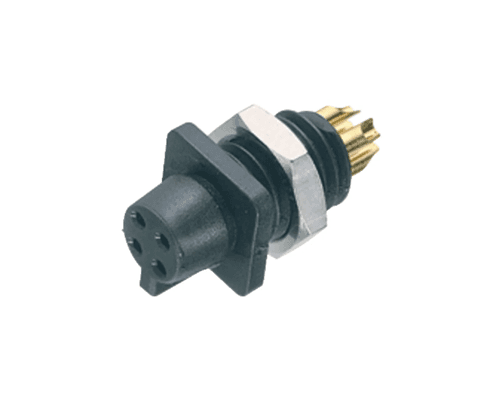

3 Way Snap-in Female Jam-Nut Panel Connector with Solder Contacts, IP40 (719 Series)

09-9766-30-04 thumbnail

Part no. : 09-9766-30-04

4 Way Snap-in Female Jam-Nut Panel Connector with Solder Contacts, IP40 (719 Series)

09-9792-30-05 thumbnail

Part no. : 09-9792-30-05

5 Way Snap-in Female Jam-Nut Panel Connector with Solder Contacts, IP40 (719 Series)

09-9750-20-03 thumbnail

Part no. : 09-9750-20-03

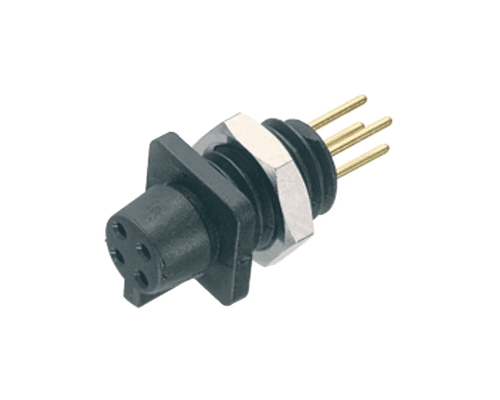

3 Way Snap-in Female Jam-Nut Panel Connector with Dip-Solder Contacts, IP40 (719 Series)

09-9766-20-04 thumbnail

Part no. : 09-9766-20-04

4 Way Snap-in Female Jam-Nut Panel Connector with Dip-Solder Contacts, IP40 (719 Series)

09-9792-20-05 thumbnail

Part no. : 09-9792-20-05

5 Way Snap-in Female Jam-Nut Panel Connector with Dip-Solder Contacts, IP40 (719 Series)

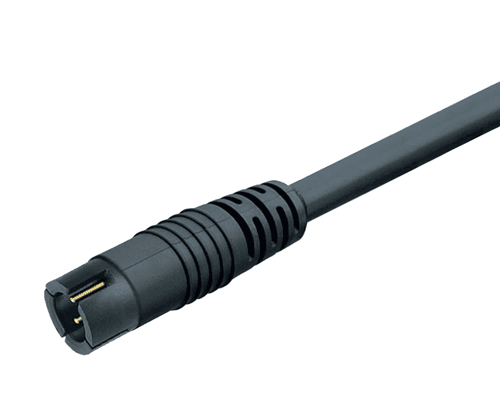

79-9001-12-03 thumbnail

Part no. : 79-9001-12-03

3 Way Snap-in Cable Assembly, Straight Male to Open End, 2m Cable with Black PVC Jacket, IP40 (709 Series)

79-9003-12-04 thumbnail

Part no. : 79-9003-12-04

4 Way Snap-in Cable Assembly, Straight Male to Open End, 2m Cable with Black PVC Jacket, IP40 (709 Series)

79-9001-15-03 thumbnail

Part no. : 79-9001-15-03

3 Way Snap-in Cable Assembly, Straight Male to Open End, 5m Cable with Black PVC Jacket, IP40 (709 Series)

79-9003-15-04 thumbnail

Part no. : 79-9003-15-04

4 Way Snap-in Cable Assembly, Straight Male to Open End, 5m Cable with Black PVC Jacket, IP40 (709 Series)

79-9005-15-05 thumbnail

Part no. : 79-9005-15-05

5 Way Snap-in Cable Assembly, Straight Male to Open End, 5m Cable with Black PVC Jacket, IP40 (709 Series)

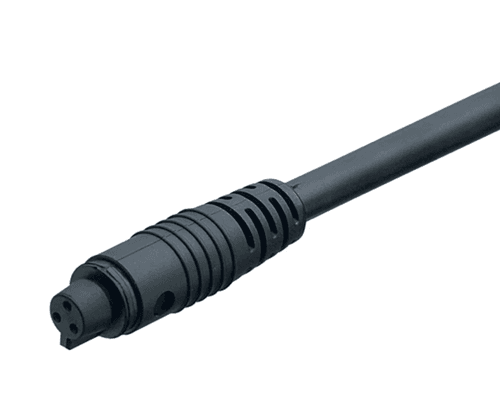

79-9002-12-03 thumbnail

Part no. : 79-9002-12-03

3 Way Snap-in Cable Assembly, Straight Female to Open End, 2m Cable with Black PVC Jacket, IP40 (709 Series)

79-9004-12-04 thumbnail

Part no. : 79-9004-12-04

4 Way Snap-in Cable Assembly, Straight Female to Open End, 2m Cable with Black PVC Jacket, IP40 (709 Series)

79-9006-12-05 thumbnail

Part no. : 79-9006-12-05

5 Way Snap-in Cable Assembly, Straight Female to Open End, 2m Cable with Black PVC Jacket, IP40 (709 Series)

79-9002-15-03 thumbnail

Part no. : 79-9002-15-03

3 Way Snap-in Cable Assembly, Straight Female to Open End, 5m Cable with Black PVC Jacket, IP40 (709 Series)

79-9004-15-04 thumbnail

Part no. : 79-9004-15-04

4 Way Snap-in Cable Assembly, Straight Female to Open End, 5m Cable with Black PVC Jacket, IP40 (709 Series)

79-9006-15-05 thumbnail

Part no. : 79-9006-15-05

5 Way Snap-in Cable Assembly, Straight Female to Open End, 5m Cable with Black PVC Jacket, IP40 (709 Series)
