09-0035-00-03
binder / M25 Power (691 Series)3 Way M25 Male Flanged Panel Connector with Solder Contacts, IP40 (691 Series)

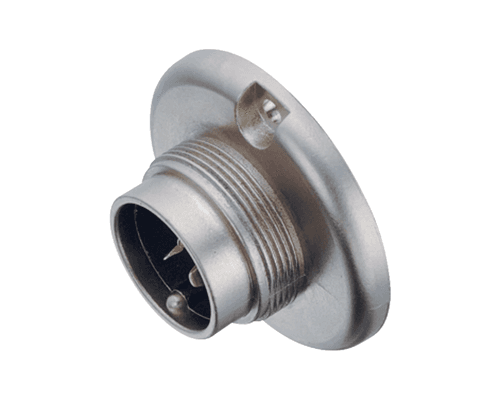

3 Way M25 Male Flanged Panel Connector with Solder Contacts, IP40 (691 Series)
Robust and compact circular connectors from one of the industry’s most trusted brands
Robust multi-pin circular connector system with Screw locking mechanism.
M25 Power connectors offer pin-counts from 3 to 12 with a current carrying capacity of up to 10A per contact.
The series caters for cable OD’s of up to 8mm, has a wire gauge max. of 1.50mm² and is capable of offering IP40 ingress protection in mated state.
binder's M25 Power series is a range of industrial circular connectors with pin counts ranging from 3-12 and with IP40 environmental protection.
The connectors are secured with a screw locking mechanism and have solder termination.
Cable versions cater for 5-8mm cable OD with panel receptacles allowing up to 1.50mm² wire gauge on both 3 & 5 pole options.
For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.
