09-0441-090-04

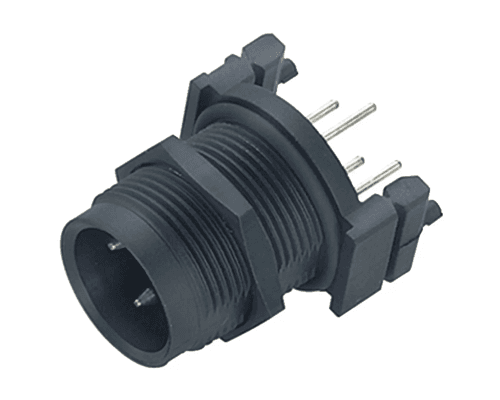

binder / M18 (714 Series)4 Way M18 Male Jam-Nut Panel Connector with Dip-Solder Contacts, IP67 (714 Series)
4 Way M18 Male Jam-Nut Panel Connector with Dip-Solder Contacts, IP67 (714 Series)
Robust and compact circular connectors from one of the industry’s most trusted brands
Robust multi-pin circular connector system with industry standard M18x1 screw locking functionality.
M18 connectors are available in a 4 way format with a current carrying capacity of up to 16A per contact.
The series caters for cable OD’s of up to 12mm, has a wire gauge max. of 1.50mm² and is capable of offering IP67 ingress protection in mated state.
The M18 or 714 series from Binder is quite a narrow range of electrical connectors with only a 4 way variant in female cable plug or male receptacle.
The field attachable cable connector uses screw termination and caters for up to 1.50mm² wire gauge and either 6.5-8 or 10-12mm cable OD.
Receptacles are offered as a transparent version for use with sensor technology or in the standard black plastic bodies with front or rear fastened lock nut.
For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.
