binder / M18 (714 Series)

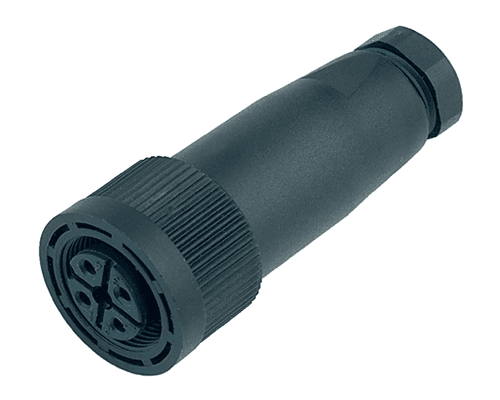

4 Way M18 Female Cable Connector with Screw Contacts, 6.5-8mm Straight Cable Entry, IP67 (714 Series)

09-0440-010-04 thumbnailImage may be representative of a range of products, see literature to confirm

Available Downloads

Quick Quote

Technical Specification

Part Number09-0440-010-04
Product TypeConnector
Connector SeriesM18 (714 Series)
Backshell IncludedYes
Body OrientationStraight
Connector TypeCable Connector
Contact PlatingOptalloy
Contacts IncludedYes
Coupling Area MaterialPlastic
Current Rating16A
Voltage Rating250V
Electrical Notes4000V Rated impulse voltage
Degree of Ingress ProtectionIP67
EMC Shielding CapabilityNo
Gender of InsertFemale
Housing MaterialPlastic
Keyway/Coding TypeStandard
Locking SystemScrew
Min. Mechanical Mating Cycles50
Max. Wire Gauge/Cross-Sectional Area1.50mm²
Min. Cable Entry (mm)6.5
Max. Cable Entry (mm)8
Number of Ways4
Operating Temperature-25 to +85°C
Positive Earth (PE)No
Shell sizeNA
Termination Method/TechnologySolder

About this Series

binder connectors

Robust and compact circular connectors from one of the industry’s most trusted brands

In brief:

Robust multi-pin circular connector system with industry standard M18x1 screw locking functionality.

M18 connectors are available in a 4 way format with a current carrying capacity of up to 16A per contact.

The series caters for cable OD’s of up to 12mm, has a wire gauge max. of 1.50mm² and is capable of offering IP67 ingress protection in mated state.

Binder M18 Sensor & Automation Connectors 714

The M18 or 714 series from Binder is quite a narrow range of electrical connectors with only a 4 way variant in female cable plug or male receptacle.

The field attachable cable connector uses screw termination and caters for up to 1.50mm² wire gauge and either 6.5-8 or 10-12mm cable OD.

Receptacles are offered as a transparent version for use with sensor technology or in the standard black plastic bodies with front or rear fastened lock nut.

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001
