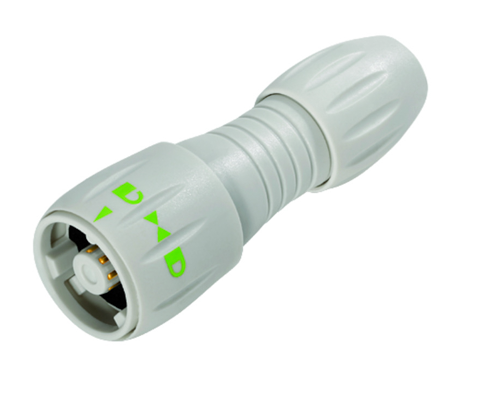

Image may be representative of a range of products, see literature to confirm.
Authorised Partner
of the industry’s leading manufacturers
Credit Accounts
to simplify the ordering process
Scheduled Orders
over a 12-month
period
Technical Expertise
in-house product
specialists
Personalised Support
designated Coordinators for your specific needs
Certification
ISO 9001 quality management system
Sales Description
Got a question about this product?Compact multi-pin circular connector system with bayonet locking mechanism.
NCC Miniature Bayonet connectors are available in a 8 way format with a current carrying capacity of up to 2A per contact.
The series caters for cable OD’s of up to 8mm, has a wire gauge max. of 0.25mm² and is capable of offering IP67 ingress protection in both mated and unmated state.
Technical Specification
- Backshell Included No
- Body Orientation Straight
- Connector Type Panel Connector
- Contact Plating Gold
- Contacts Included Yes
- Coupling Area Material Plastic
- Current Rating 2A
- Voltage Rating 175V
- Electrical Notes 1750V Rated Impulse Voltage
- Degree of Ingress Protection IP67
- EMC Sheilding Capability No
- Gender of Insert Female
- Housing Material Plastic
- Keyway/Coding Type Standard
- Locking System Bayonet
- Min. Mechanical Mating Cycles 5000
- Max. Wire Gauge/Cross Sectional Area 0.25mm²
- Min. Cable Entry (mm) NA
- Max. Cable Entry (mm) NA
- Number of Ways 8
- Operating Temperature -25 to +85°C
- Positive Earth (PE) No
- Shell Size NA
- Termination Method/Technology Solder
