Series Description

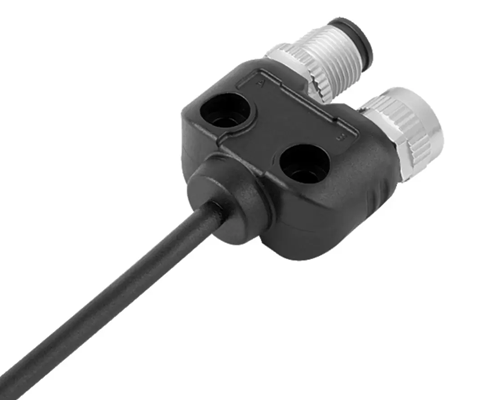

Got a question about this product?A selection of M8 (A-Coded) and M12 (A-Coded) inter-series adapters, splitters and connecting cables.
Technical Specification
- Approvals UL
- Cable Assembly Type Single Ended
- Cable Jacket Colour Black
- Cable Jacket Material PUR
- Cable Length 2m
- Cable Operating Temperature -25 to +80°C (fixed), -5 to +80°C (flex)
- Conductor Gauge 0.25mm²
- Connector Operating Temperature -25 to +85°C
- Connector Type 1 4 Way Male & Female
- Connector Type 2 NA
- Contact Plating Gold
- Coupling Area Material Metal
- Current Rating 4A
- Voltage Rating 250V
- Electrical Notes See literature for derating curves
- Degree of Ingress Protection IP67
- EMC Shield No
- Gender of Insert Male/Female
- Housing Material Metal
- Keyway/Coding Type A-Coded
- Locking System Screw
- Min. Mechanical Mating Cycles 100
- Number of Conductors 4
- Shell Type Cable Connector
