WISKA ShieldGLAND^® replaces the use of the conventional BW/CW gland for cable termination. It offers superior protection (IP68) against dust, dirt and water. Furthermore the ShieldGLAND^®’s polyamide outerbody eliminates the need for a shroud helping to save time and improve ease of installation. Finally the finished look creates a much cleaner final installation. The ShieldGLAND^® has also been designed to work with our iconic COMBI junction box series and accessories.

Features:
-High protection class (IP68)
-High quality material: polyamide/brass
-No shroud required
-Suitable for armoured, non-armoured and SY/CY cables
-Available in M20, M25 & M32 sizes

Flexible Design
Thanks to its flexible design the ShieldGLAND® can be used with armoured, SY, CY and non-armoured cables. The ShieldGLAND®’s versatile clamping olive can simply be switched to take either armoured or SY, CY making installation quick and easy.

The ShieldGLAND^®’s unique adaptable insert allows a wider range of cable acceptance due to its two part sealing gasket. Simply leave as is or remove inner sealing insert depending on your cable requirement.

Variety
ShieldGLANDS are available in different combinations to suit your applications needs:

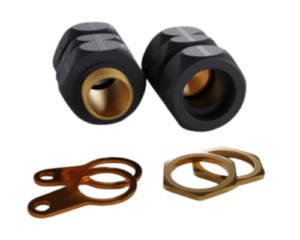

1. ShieldGLAND Standard = 2 x glands, 2 x lock-nuts, 2 x earth tags

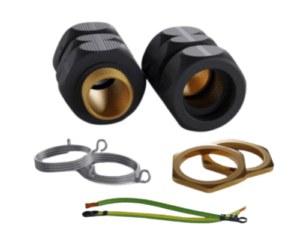

2. ShieldGLAND Pro = 2 x glands, 2 x lock-nuts, 2 x E-springs, 2 x earth fly leads

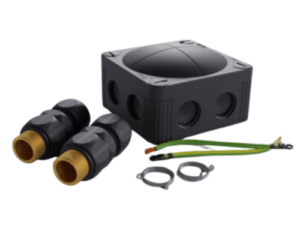

3. ShieldGLAND Elite = 2 x glands, 2 x E-springs, 2 x earth fly leads, 1 x COMBI 308 junction box

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form above or simply call us on 01744 815001

Housing Material: Polyamide, Brass
Temperature Rating: -40°C to +120°C
Clamping Insert: TPE
Thread Types: Metric
Cable Diameter Range: 7-36mm
Ingress Protection: IP68

Electrical Notes

See literature for derating curves

Safety Notes

Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury

Ingress Protection Notes

Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise

Additional accessories may also be required to maintain IP rating in some instances
