Series Description

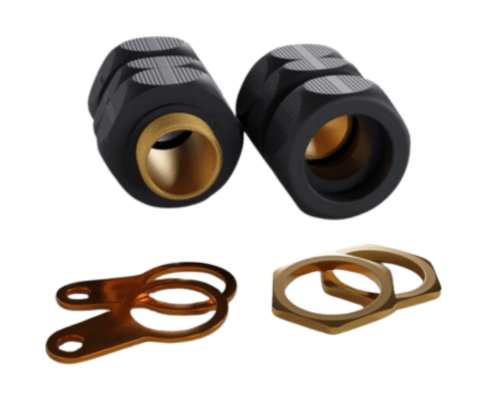

Got a question about this product?IP68 polyamide/brass hybrid cable gland suitable for standard, shielded & armoured cables.
The ShieldGLAND® replaces the use of the conventional BW/CW gland for cable termination. It offers superior protection against dust, dirt and water.
A polyamide outer-body eliminates the need for a shroud helping to save time and improve ease of installation.
Technical Specification
- Body Orientation Straight
- Cable Seal Material TPE
- Colour Black
- Degree of Ingress Protection IP68
- EMC Shielding Capability Yes
- Housing Material Polyamide, Brass
- Locking Nut Included Yes
- Min. Cable Entry (mm) 17
- Max. Cable Entry (mm) 28
- Operating Temperature -40 to +120°C
- Panel Seal Included Yes
- Thread Length 13mm
- Thread Type M25 x 1.5
