BVND-M638GT

PMA / PMAFIX Series

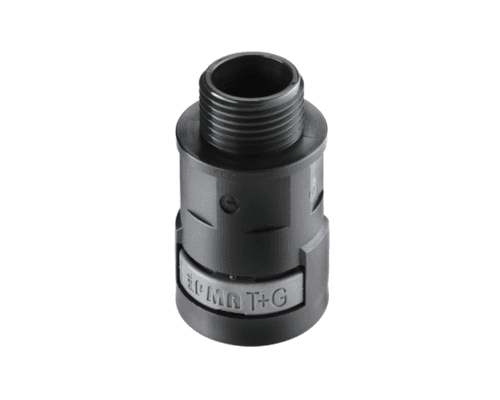

PMAFIX Conduit Connector with M63 Male Plastic Thread, Fits NW 48 / Metric 50 Conduit, Straight Entry, Black Version, IP66

Image may be representative of a range of products, see literature to confirm

Available Downloads

Datasheet

Brochure

Quick Quote

Technical Specification

Part NumberBVND-M638GT

Product TypeConduit Connector

BrandPMA

ApprovalsUL, CSA

Body ColourBlack

Body MaterialPolyamide 6

Degree of Ingress ProtectionIP66

Fits Conduit Size Metric50

Fits Conduit Size NW48

Lock Nut for Thread IncludedNo

Operating Temperature-50 to +105°C

OrientationStraight

Panel Thread Length19mm

Panel Thread MaterialPolyamide 6

Panel Thread TypeM63 x 1.5

About this Series

A leading provider of cable protection equipment, able to withstand all weather conditions.

In brief:

Large range of connectors for PMA conduits with the patented PMA safety clip system.

Connectors are available with a range of thread types, design styles and with IP66 or IP68 ingress protection.

Fittings are made from specially formulated polyamide 6, free from halogens and are REACH and RoHS compliant.

Large range of connectors for PMA conduits with the patented PMA safety clip system.

Connectors are available with a range of thread types, design styles and with IP66 or IP68/IP69K ingress protection (when static).

IP66 connectors are fitted with a pre- installed universal safety clip which ensures a quick “push-in” installation. IP68 connectors for increased requirements will be delivered with a special conduit seal cap.

The new PMAFIX IP68GT fittings combine the simplest push-in assembly with the highest sealing performance.

This product line offers solutions that meet the highest expectations: IP66 & IP68 / IP69K in static state.

It is based on a perfected system technology that makes installation easy. You can choose from a very large, varied range of connectors and conduit which have demonstrated their dependability in all types of applications for more than 30 years.

For a more detailed description of this connector series please see the manufacturer's brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001.
