HUMMEL M27 Signal Series
In brief:
Robust multi-pin circular connector system with M27x1 screw locking mechanism.
M27 connectors offer pin-counts of 26 and 28 with a current carrying capacity of up to 8A per contact.
The series caters for cable OD’s of up to 17mm, has a wire gauge max. of 1.00mm² and is capable of offering IP67 & IP69K ingress protection in mated state or with the use of a protection cover.
A renowned manufacturer known for quality, innovation and technical development, offering circular connectors, cable glands and cable protection
Download BrochureHummel M27 series is a range of robust waterproof circular connectors for use in tough environments.
The M27 system is sealed to IP67 and IP69K in mated condition thus provides a ruggedized sealed connection at all times.
26 & 28 way variants offer a current carrying capacity of up to 8A.

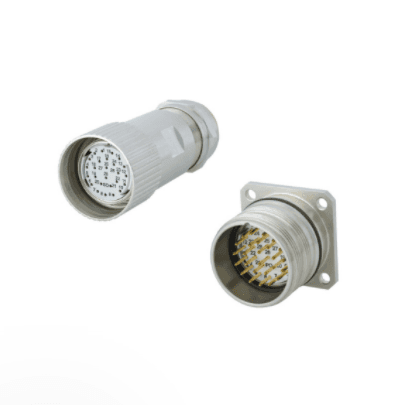

Cable shells are available with both male and female thread for an in-line connection or can be mated with the panel receptacle which is available with male thread only.
Shells, inserts and contacts have individual part numbers to reduce inventory levels if a number of pinouts are used and to allow the user to tailor their setup.
For a more detailed description of this connector series please see the manufacturer's brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001.
We have many products in this series, find what you need using the filters below
23 products match your criteria:
Part no. : 7.110.500.000

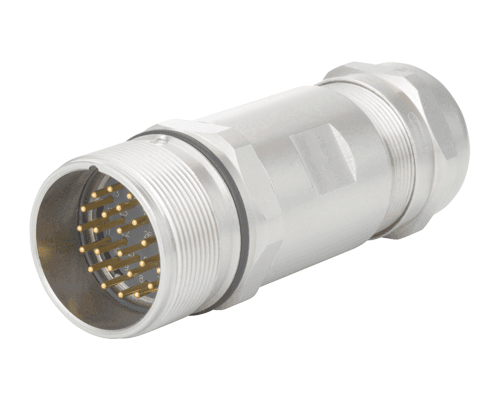

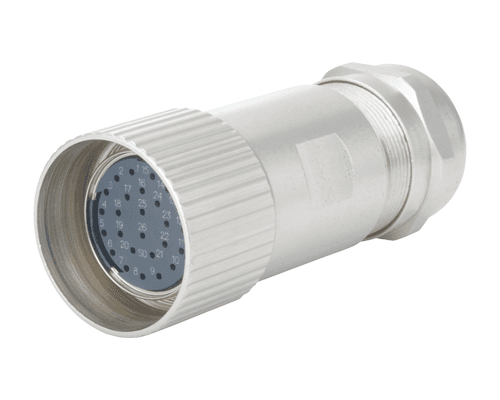

M27 (Signal) Cable Connector Shell, Female Locking Thread, 7-12mm Straight Cable Entry, Shieldable, IP67 & IP69K
Part no. : 7.110.600.000
M27 (Signal) Cable Connector Shell, Female Locking Thread, 11-17mm Straight Cable Entry, Shieldable, IP67 & IP69K
Part no. : 7.210.500.000
M27 (Signal) Cable Connector Shell, Male Locking Thread, 7-12mm Straight Cable Entry, Shieldable, IP67 & IP69K
Part no. : 7.210.600.000
M27 (Signal) Cable Connector Shell, Male Locking Thread, 11-17mm Straight Cable Entry, Shieldable, IP67 & IP69K

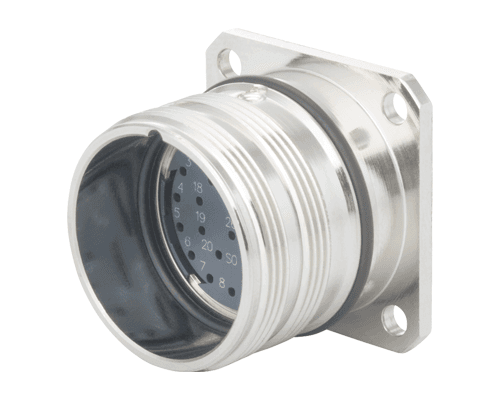

Part no. : 7.410.700.000
M27 (Signal) Square Flanged Panel Connector Shell, Male Locking Thread, IP67 & IP69K
Part no. : 7.001.926.103

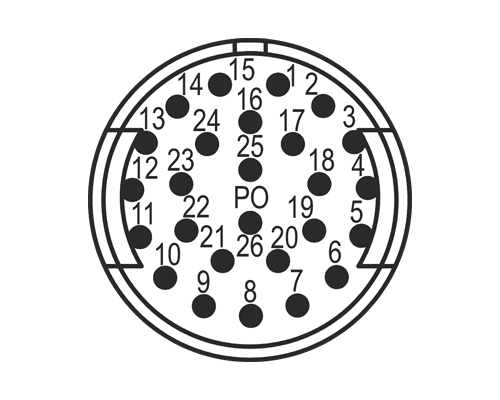

26 Way M27 (Signal) Male Insert with Solder Contacts
Part no. : 7.003.926.101
26 Way M27 (Signal) Male Insert for Pin Contacts
Part no. : 7.001.926.127
26 Way M27 (Signal) Male Insert with Dip-Solder Contacts
Part no. : 7.001.926.104

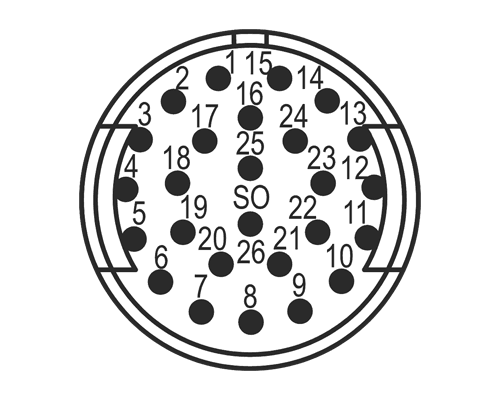

26 Way M27 (Signal) Female Insert with Solder Contacts
Part no. : 7.003.926.102
26 Way M27 (Signal) Female Insert for Socket Contacts

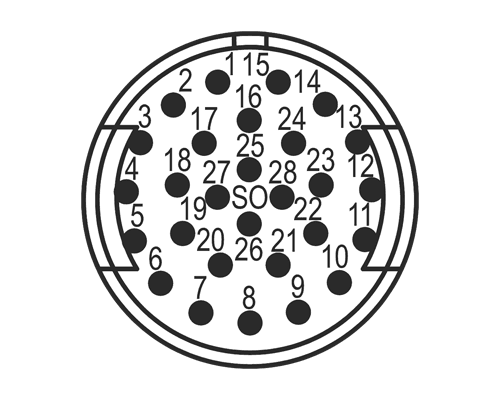

Part no. : 7.001.928.103

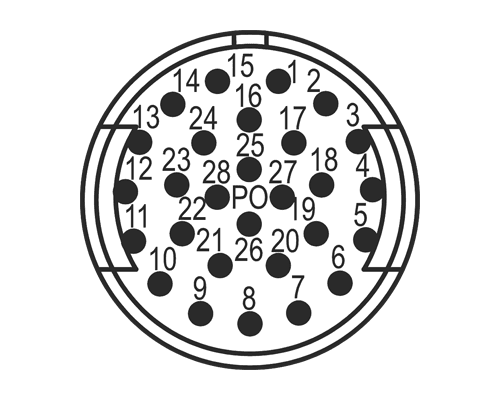

28 Way M27 (Signal) Male Insert with Solder Contacts
Part no. : 7.001.928.104
28 Way M27 (Signal) Female Insert with Solder Contacts
Part no. : 7.010.971.001

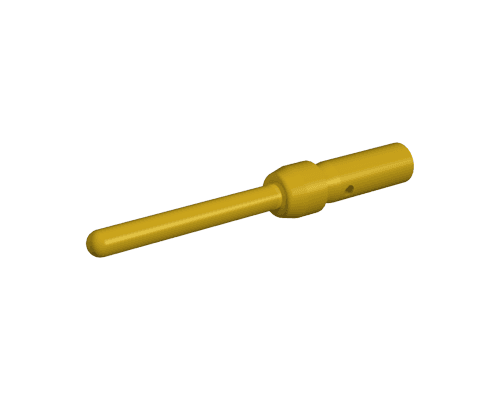

1mm Crimp Pin Contact, Machined Construction, Gold Plating, 0.14-0.56mm²

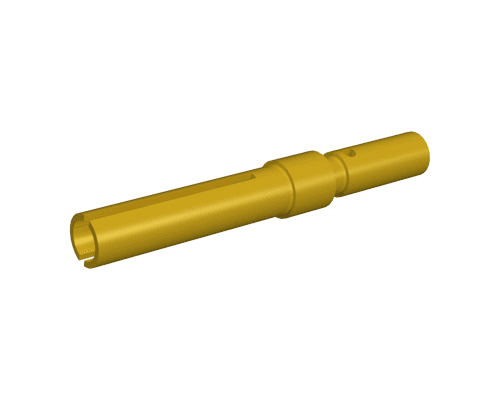

Part no. : 7.010.971.002
1mm Crimp Socket Contact, Machined Construction, Gold Plating, 0.14-0.56mm²
Part no. : 7.000.980.167

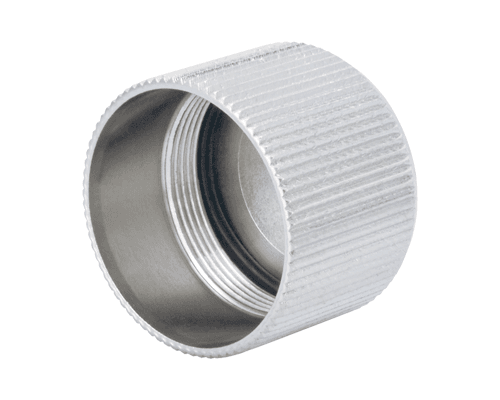

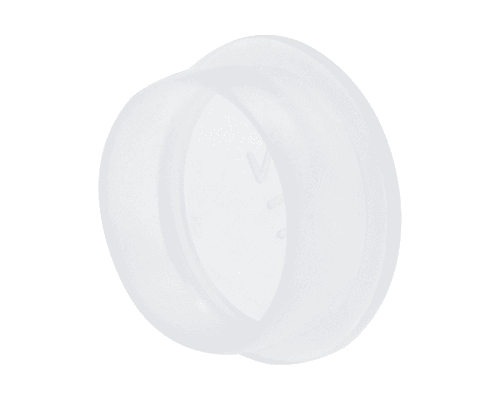

Protection Cover for Connectors with Male Locking Thread, without Fixing Rope, Plastic Version
Part no. : 7.000.980.168
Protection Cover for Connectors with Female Locking Thread, without Fixing Rope, Plastic Version
Part no. : 7.010.900.169
Protection Cover for Connectors with Female Locking Thread, without Fixing Rope, IP67 & IP69K

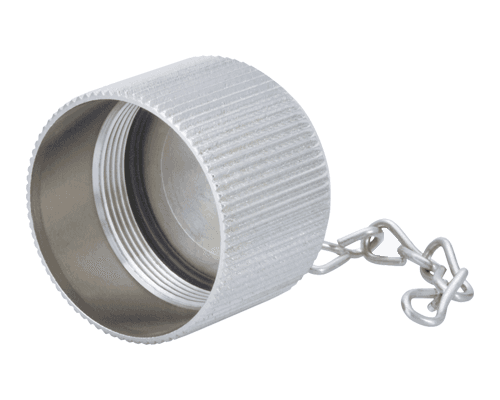

Part no. : 7.010.9S0.707
Protection Cover for Connectors with Female Locking Thread, with Fixing Rope, IP67 & IP69K

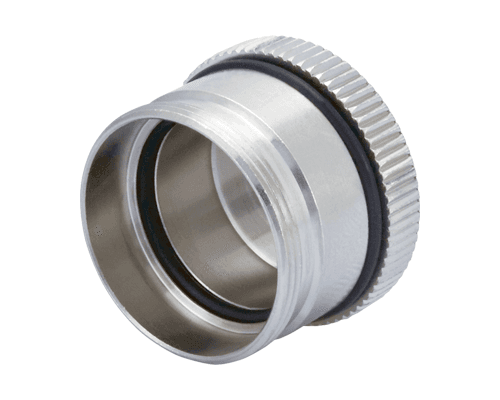

Part no. : 7.010.900.170
Protection Cover for Connectors with Male Locking Thread, without Fixing Rope, IP67 & IP69K

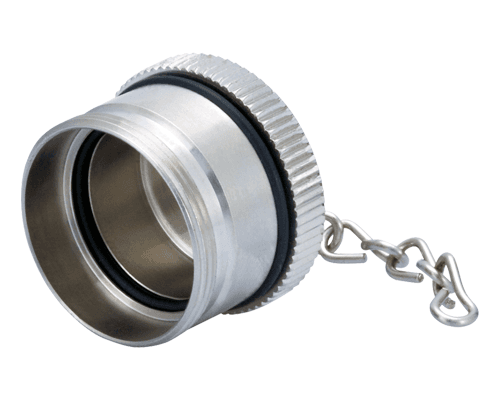

Part no. : 7.010.9S0.708
Protection Cover for Connectors with Male Locking Thread, with Fixing Rope, IP67 & IP69K
Part no. : 7.000.900.901

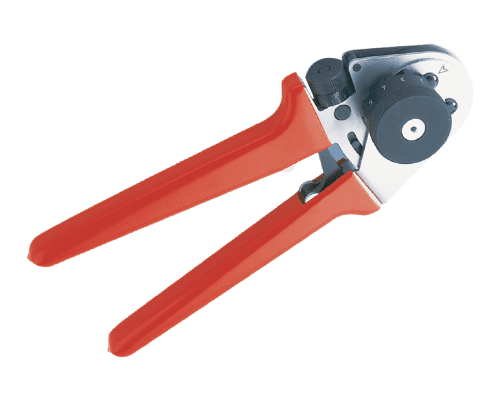

Crimp Tool for Machined Contacts
Part no. : 7.000.900.904
Crimp Tool for Machined Contacts

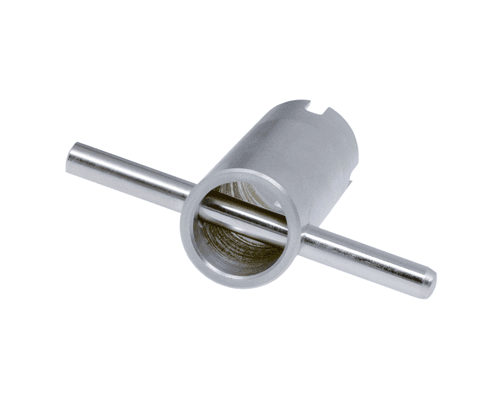

Part no. : 7.010.900.110
Assembly Tool for M27 Cable Connector with Female Locking Thread
