HARTING Har-flex® Series

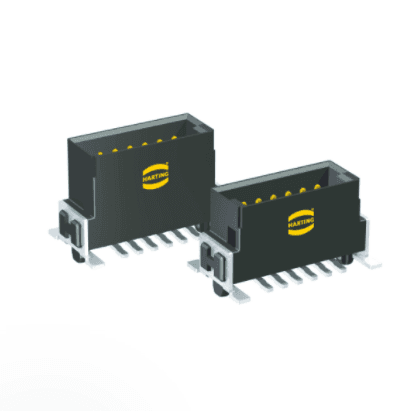

HARTING Har-flex® PCB Connectors

In brief:

General-purpose PCB connector series for internal and external Device Connectivity. HARTING Har-flex ®offers a broad choice of configurations between 6 & 100 in even numbered positions. This flexibility in the choice of number of contacts, combined with high density contact spacing, allow the designer to maximise the use of PCB real estate, thereby achieving overall space savings and cost effectiveness.

Harting logo

German-engineered industrial connectors and components, utilising industry-leading interconnect technology

DownloadDownload Brochure

With har-flex®, HARTING has developed a general-purpose PCB connector series for internal and external Device Connectivity. The continuous scalability by an even number of contacts, i.e. from 6 to 100, of the HARTING‘s har-flex® mezzanine connector series is a special feature forming an ideal basis for customized applications.

The advantage is clearly evident considering that the connector is always optimized to suit specific applications on the device PCB, while also covering the medium- and small-scale volume range that is typical for the production of industrial devices.

This flexibility is new - HARTING turns an individual design into a standard component. No special tooling changes are needed for customer-specific solutions, thus HARTING can realize a short delivery time.

Product Diversity
The har-flex® product range with SMT termination technology is based on a 1.27mm grid. With its diverse variants, HARTING provides connectivity solutions for many different board-to-board and cable-to-board applications. For example, two straight connectors are used for the mezzanine application, two angled connectors for PCBs on one level, and a combination allows the well-known pairing of mother and daughter cards. By using an IDC flat band cable, two PCBs with large space between can be connected.

For a more detailed description of this connector series please see the manufacturer's brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001
