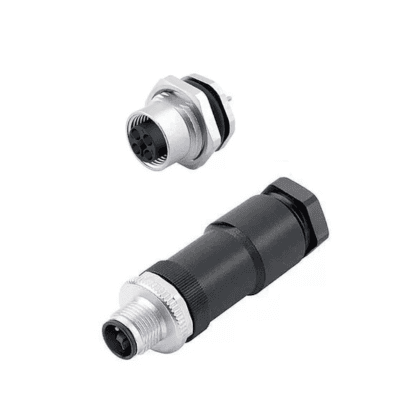

binder M12 T-Coded / M12 L-Coded (813, 823 Series)

In brief:

Compact circular connector system with industry standard IEC 61076-2-111 M12x1 screw locking interface.

M12 T & L-Coded connectors offer pin-counts of 4 and 5 with a current carrying capacity of up to 16A per contact.

The series caters for cable OD’s of up to 13mm, has a wire gauge max. of 2.50mm² and is capable of offering IP67 ingress protection in mated state or with the use of a protection cover.

binder connectors

Robust and compact circular connectors from one of the industry’s most trusted brands

DownloadDownload Brochure

Connectors of the 813 series with screw locking according to DIN EN 61076-2-111 are T-coded for DC applications.

T-coded versions have 4 contacts with a rated current of 12A at 63VDC.

The straight and angled cable connectors have screw terminals, but are also available with moulded cable.

Flange connectors have dip solder terminals, but also stranded wires.

Connectors of the 823 series with screw locking according to DIN EN 61076-2-111 are L-coded for DC applications.

L-coded versions have 4+FE contacts with a rated current of 12A/16A at 63VDC.

The straight and angled cable connectors have screw terminal connection.

Flanged connectors are available with dip solder terminals as well as with stranded wires.

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001.

We have many products in this series, find what you need using the filters below

37 products match your criteria:

99-0629-19-04 thumbnail

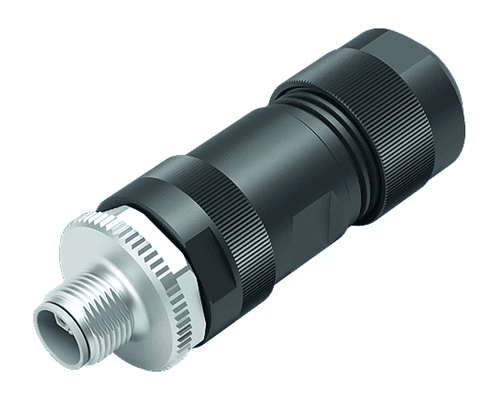

Part no. : 99-0629-19-04

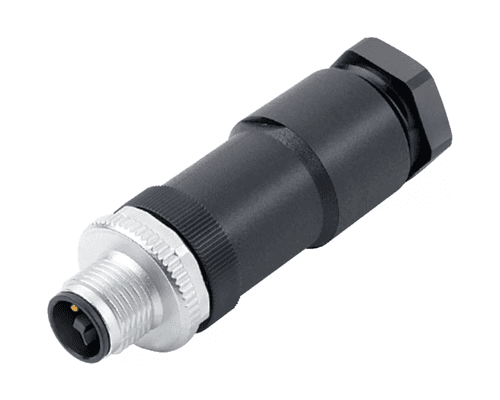

4 Way M12 (T-Coded) Male Cable Connector with Screw Contacts, 8-10mm Straight Cable Entry, IP67 (813 Series)

99-0629-58-04 thumbnail

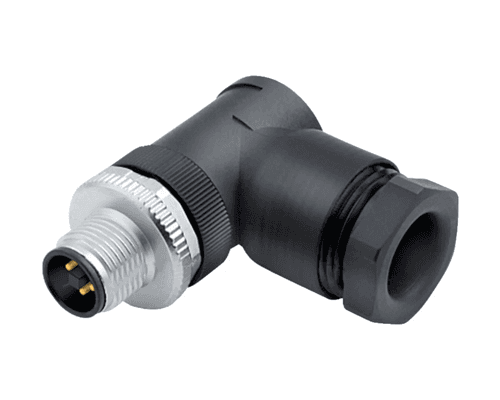

Part no. : 99-0629-58-04

4 Way M12 (T-Coded) Male Cable Connector with Screw Contacts, 8-10mm Angled Cable Entry, IP67 (813 Series)

99-1631-814-04 thumbnail

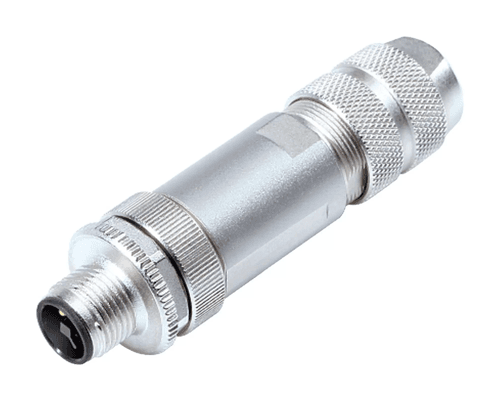

Part no. : 99-1631-814-04

4 Way M12 (T-Coded) Male Cable Connector with Screw Contacts, 5-8mm Straight Cable Entry, Shieldable, IP67 (813 Series)

99-1631-812-04 thumbnail

Part no. : 99-1631-812-04

4 Way M12 (T-Coded) Male Cable Connector with Screw Contacts, 8-9mm Straight Cable Entry, Shieldable, IP67 (813 Series)

99-0639-29-05 thumbnail

Part no. : 99-0639-29-05

5 Way M12 (L-Coded) Male Cable Connector with Screw Contacts, 8-13mm Straight Cable Entry, IP67 (813 Series)

99-0630-19-04 thumbnail

Part no. : 99-0630-19-04

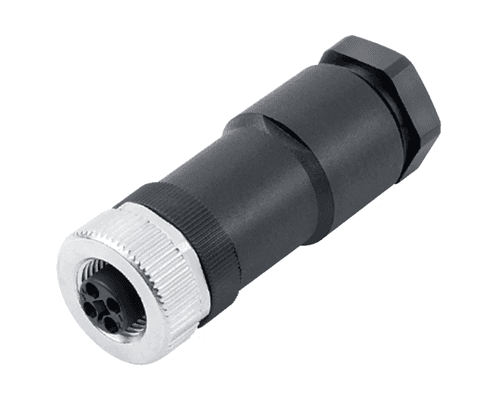

4 Way M12 (T-Coded) Female Cable Connector with Screw Contacts, 8-10mm Straight Cable Entry, IP67 (813 Series)

99-0630-58-04 thumbnail

Part no. : 99-0630-58-04

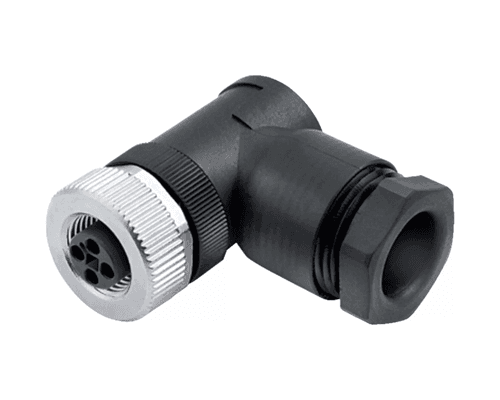

4 Way M12 (T-Coded) Female Cable Connector with Screw Contacts, 8-10mm Angled Cable Entry, IP67 (813 Series)

99-1632-814-04 thumbnail

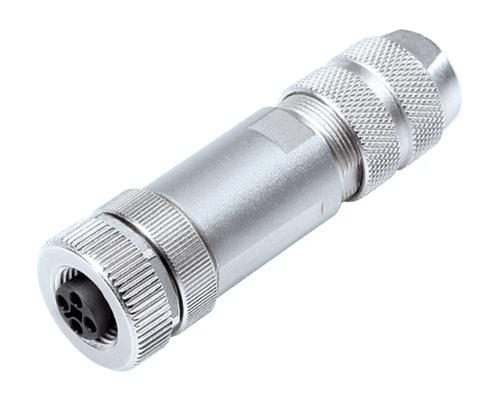

Part no. : 99-1632-814-04

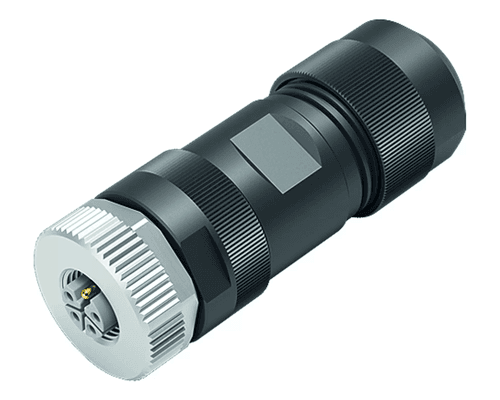

4 Way M12 (T-Coded) Female Cable Connector with Screw Contacts, 5-8mm Straight Cable Entry, Shieldable, IP67 (813 Series)

99-1632-812-04 thumbnail

Part no. : 99-1632-812-04

4 Way M12 (T-Coded) Female Cable Connector with Screw Contacts, 8-9mm Straight Cable Entry, Shieldable, IP67 (813 Series)

99-0640-29-05 thumbnail

Part no. : 99-0640-29-05

5 Way M12 (L-Coded) Female Cable Connector with Screw Contacts, 8-13mm Straight Cable Entry, IP67 (813 Series)

99-0633-500-04 thumbnail

Part no. : 99-0633-500-04

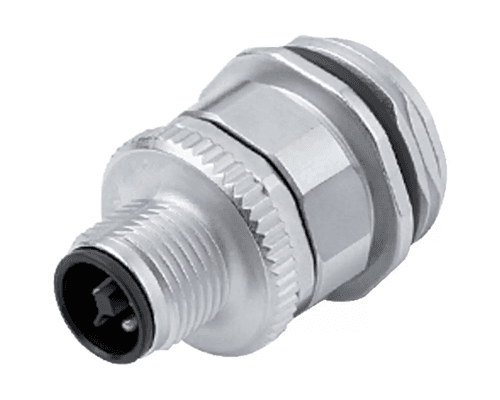

4 Way M12 (T-Coded) Male Jam-Nut Panel Connector with Screw Contacts, IP67 (813 Series)

09-0631-90-04 thumbnail

Part no. : 09-0631-90-04

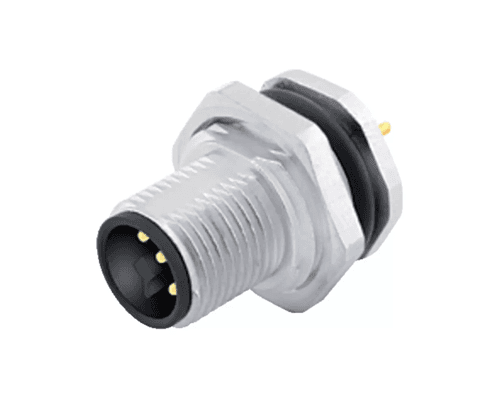

4 Way M12 (T-Coded) Male Jam-Nut Panel Connector with Dip-Solder Contacts, IP67 (813 Series)

09-0631-300-04 thumbnail

Part no. : 09-0631-300-04

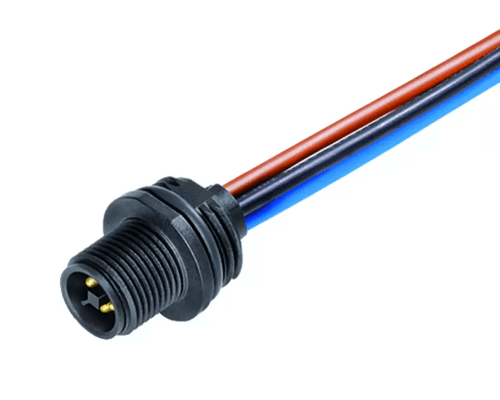

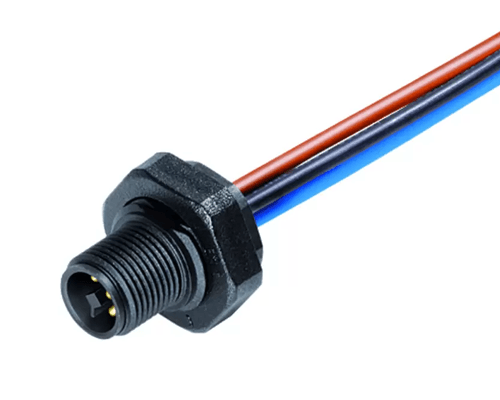

4 Way M12 (T-Coded) Male Jam-Nut Panel Connector with Pre-wired Contacts, Full Plastic Version, IP67 (813 Series)

09-0631-320-04 thumbnail

Part no. : 09-0631-320-04

4 Way M12 (T-Coded) Male Jam-Nut Panel Connector with Pre-wired Contacts, Full Plastic Version, IP67 (813 Series)

09-0631-700-04 thumbnail

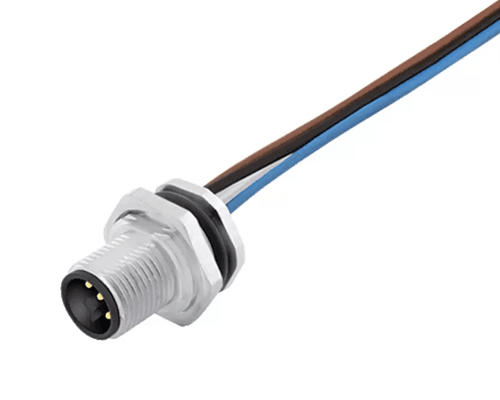

Part no. : 09-0631-700-04

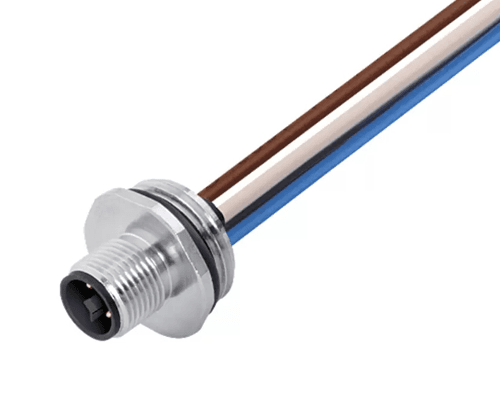

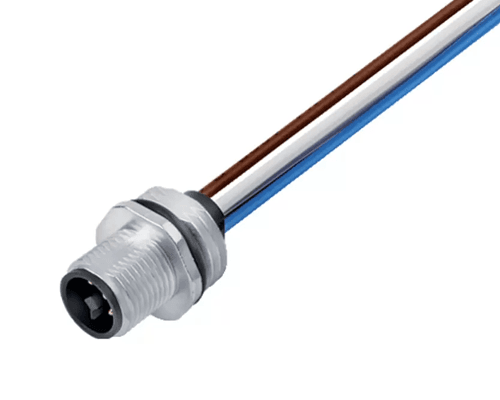

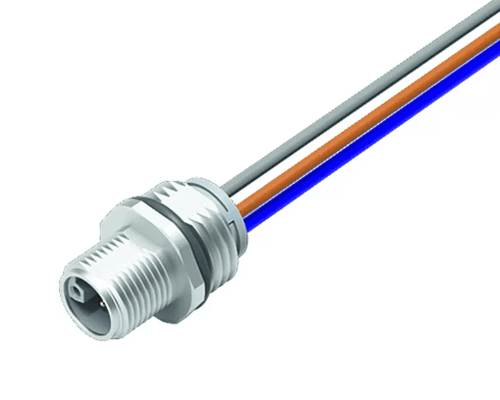

4 Way M12 (T-Coded) Male Jam-Nut Panel Connector with Pre-wired Contacts, IP67 (813 Series)

09-0631-120-04 thumbnail

Part no. : 09-0631-120-04

4 Way M12 (T-Coded) Male Jam-Nut Panel Connector with Pre-wired Contacts, IP67 (813 Series)

09-0631-642-04 thumbnail

Part no. : 09-0631-642-04

4 Way M12 (T-Coded) Male Jam-Nut Panel Connector with Pre-wired Contacts, IP67 (813 Series)

09-0631-070-04 thumbnail

Part no. : 09-0631-070-04

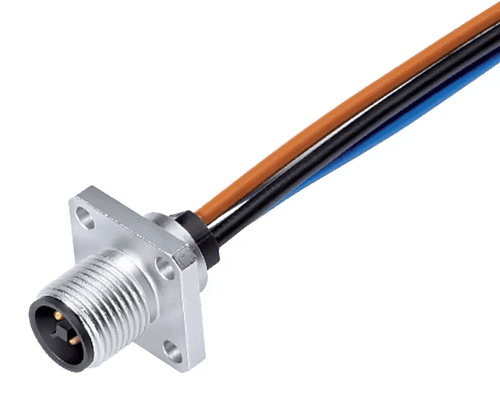

4 Way M12 (T-Coded) Male Square Flanged Panel Connector with Pre-wired Contacts, IP67 (813 Series)

99-0634-500-04 thumbnail

Part no. : 99-0634-500-04

4 Way M12 (T-Coded) Female Jam-Nut Panel Connector with Screw Contacts, IP67 (813 Series)

09-0632-90-04 thumbnail

Part no. : 09-0632-90-04

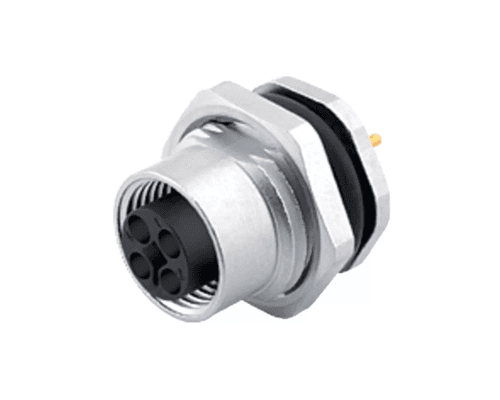

4 Way M12 (T-Coded) Female Jam-Nut Panel Connector with Dip-Solder Contacts, IP67 (813 Series)

09-0632-300-04 thumbnail

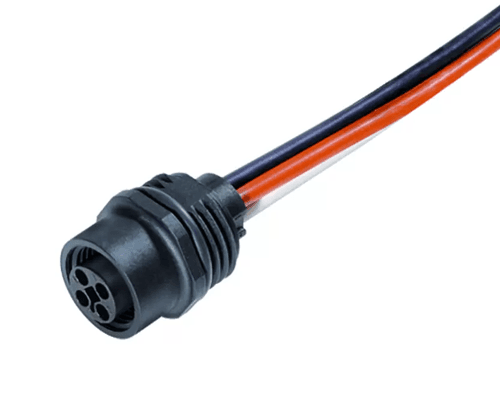

Part no. : 09-0632-300-04

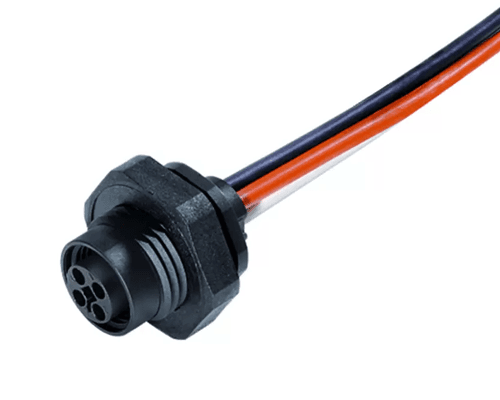

4 Way M12 (T-Coded) Female Jam-Nut Panel Connector with Pre-wired Contacts, Full Plastic Version, IP67 (813 Series)

09-0632-321-04 thumbnail

Part no. : 09-0632-321-04

4 Way M12 (T-Coded) Female Jam-Nut Panel Connector with Pre-wired Contacts, Full Plastic Version, IP67 (813 Series)

09-0632-700-04 thumbnail

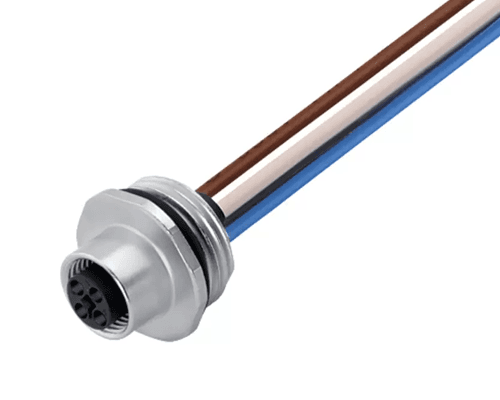

Part no. : 09-0632-700-04

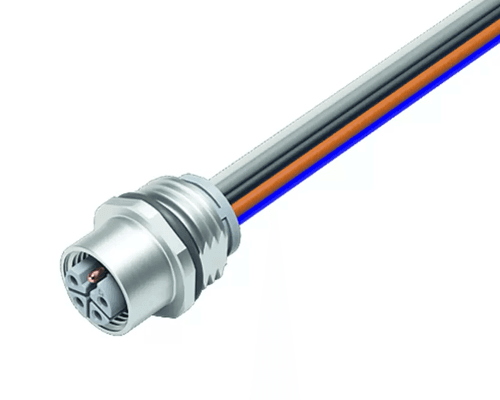

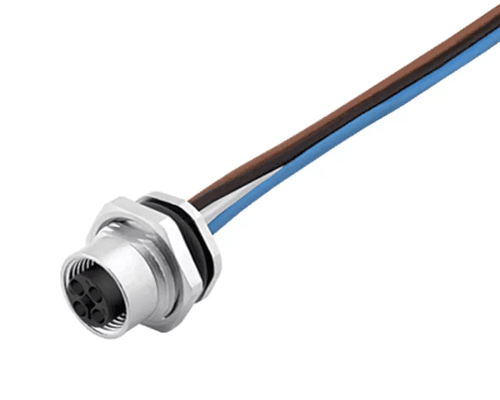

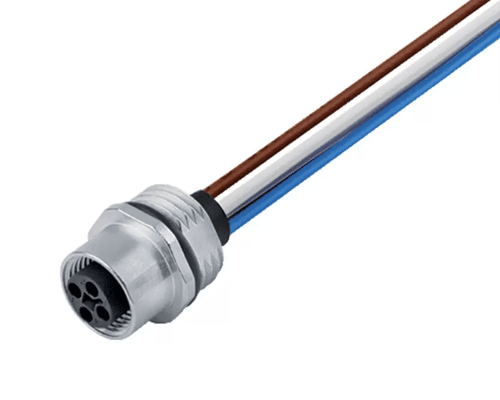

4 Way M12 (T-Coded) Female Jam-Nut Panel Connector with Pre-wired Contacts, IP67 (813 Series)

09-0632-120-04 thumbnail

Part no. : 09-0632-120-04

4 Way M12 (T-Coded) Female Jam-Nut Panel Connector with Pre-wired Contacts, IP67 (813 Series)

09-0632-642-04 thumbnail

Part no. : 09-0632-642-04

4 Way M12 (T-Coded) Female Jam-Nut Panel Connector with Pre-wired Contacts, IP67 (813 Series)

09-0632-070-04 thumbnail

Part no. : 09-0632-070-04

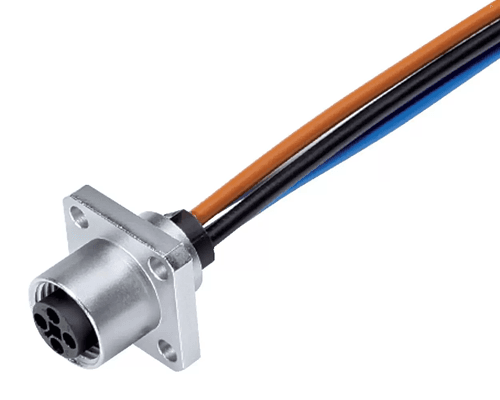

4 Way M12 (T-Coded) Female Square Flanged Panel Connector with Pre-wired Contacts, IP67 (813 Series)

09-0641-700-05 thumbnail

Part no. : 09-0641-700-05

5 Way M12 (L-Coded) Male Jam-Nut Panel Connector with Pre-wired Contacts, IP67 (813 Series)

09-0642-700-05 thumbnail

Part no. : 09-0642-700-05

5 Way M12 (L-Coded) Female Jam-Nut Panel Connector with Pre-wired Contacts, IP67 (813 Series)

77-0629-0000-50704-0200 thumbnail

Part no. : 77-0629-0000-50704-0200

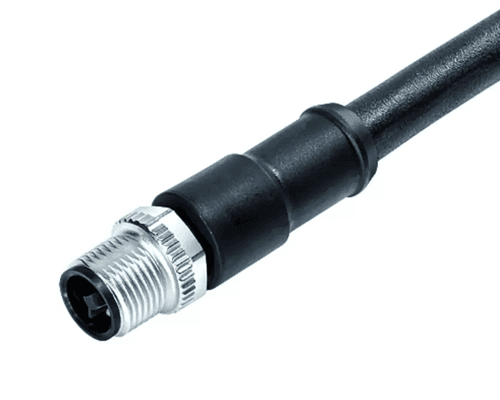

4 Way M12 (T-Coded) Cable Assembly, Straight Male to Open End, 2m Cable with Black PUR Jacket, IP67 (813 Series)

77-0629-0000-50704-0500 thumbnail

Part no. : 77-0629-0000-50704-0500

4 Way M12 (T-Coded) Cable Assembly, Straight Male to Open End, 5m Cable with Black PUR Jacket, IP67 (813 Series)

77-0627-0000-50704-0200 thumbnail

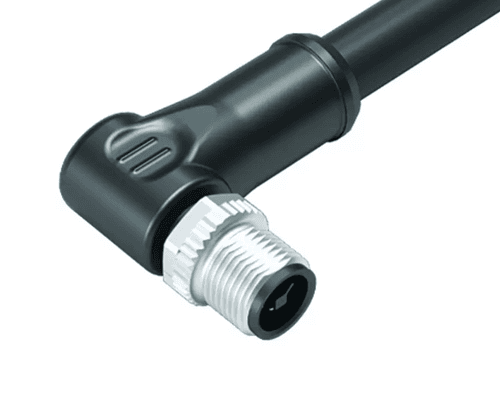

Part no. : 77-0627-0000-50704-0200

4 Way M12 (T-Coded) Cable Assembly, Angled Male to Open End, 2m Cable with Black PUR Jacket, IP67 (813 Series)

77-0627-0000-50704-0500 thumbnail

Part no. : 77-0627-0000-50704-0500

4 Way M12 (T-Coded) Cable Assembly, Angled Male to Open End, 5m Cable with Black PUR Jacket, IP67 (813 Series)

77-0630-0000-50704-0200 thumbnail

Part no. : 77-0630-0000-50704-0200

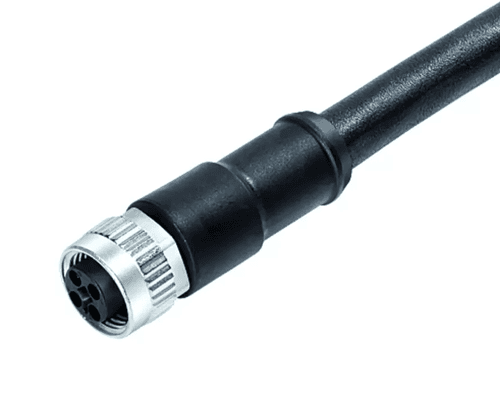

4 Way M12 (T-Coded) Cable Assembly, Straight Female to Open End, 2m Cable with Black PUR Jacket, IP67 (813 Series)

77-0630-0000-50704-0500 thumbnail

Part no. : 77-0630-0000-50704-0500

4 Way M12 (T-Coded) Cable Assembly, Straight Female to Open End, 5m Cable with Black PUR Jacket, IP67 (813 Series)

77-0634-0000-50704-0200 thumbnail

Part no. : 77-0634-0000-50704-0200

4 Way M12 (T-Coded) Cable Assembly, Angled Female to Open End, 2m Cable with Black PUR Jacket, IP67 (813 Series)

77-0634-0000-50704-0500 thumbnail

Part no. : 77-0634-0000-50704-0500

4 Way M12 (T-Coded) Cable Assembly, Angled Female to Open End, 5m Cable with Black PUR Jacket, IP67 (813 Series)

16-0959-000 thumbnail

Part no. : 16-0959-000

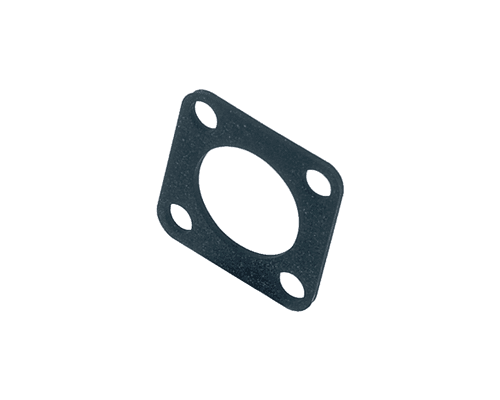

Gasket for Square Flanged Panel Connector
