binder Push-Pull Subminiature (430 Series)

binder Push-Pull Subminiature Connectors (430 Series)

In brief:

Compact multi-pin circular connector system with push-pull locking mechanism.

Push-pull subminiature connectors offer pin-counts from 3 to 8 with a current carrying capacity of up to 4A per contact.

The series caters for cable OD’s of up to 5mm, has a wire gauge max. of 0.25mm² and is capable of offering IP67 ingress protection in mated state or with the use of a protection cover.

binder connectors

Robust and compact circular connectors from one of the industry’s most trusted brands

DownloadDownload Brochure

The binder push-pull series is a compact range of circular connectors designed for tight spaces and applications which require quick release but one that wouldn’t disconnect if snagged unlike the snap-in varieties.

binder’s push-pull subminiature is one of a few versions of push-pull connection seen in the portfolio and offers both IP40 & IP67 environmental protection.

The system offers 3 to 8 pole options both in field attachable cable plug and panel receptacle with solder cup termination.

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001

We have many products in this series, find what you need using the filters below

58 products match your criteria:

99-4905-00-03 thumbnail

Part no. : 99-4905-00-03

3 Way Push-Pull Male Cable Connector with Solder Contacts, 3.5-5mm Straight Cable Entry, Shieldable, IP67 (430 Series)

99-4909-00-04 thumbnail

Part no. : 99-4909-00-04

4 Way Push-Pull Male Cable Connector with Solder Contacts, 3.5-5mm Straight Cable Entry, Shieldable, IP67 (430 Series)

99-4913-00-05 thumbnail

Part no. : 99-4913-00-05

5 Way Push-Pull Male Cable Connector with Solder Contacts, 3.5-5mm Straight Cable Entry, Shieldable, IP67 (430 Series)

99-4925-00-07 thumbnail

Part no. : 99-4925-00-07

7 Way Push-Pull Male Cable Connector with Solder Contacts, 3.5-5mm Straight Cable Entry, Shieldable, IP67 (430 Series)

99-4929-00-08 thumbnail

Part no. : 99-4929-00-08

8 Way Push-Pull Male Cable Connector with Solder Contacts, 3.5-5mm Straight Cable Entry, Shieldable, IP67 (430 Series)

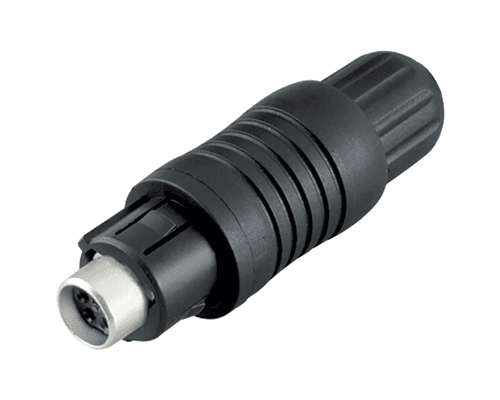

99-4906-00-03 thumbnail

Part no. : 99-4906-00-03

3 Way Push-Pull Female Cable Connector with Solder Contacts, 3.5-5mm Straight Cable Entry, Shieldable, IP67 (430 Series)

99-4910-00-04 thumbnail

Part no. : 99-4910-00-04

4 Way Push-Pull Female Cable Connector with Solder Contacts, 3.5-5mm Straight Cable Entry, Shieldable, IP67 (430 Series)

99-4914-00-05 thumbnail

Part no. : 99-4914-00-05

5 Way Push-Pull Female Cable Connector with Solder Contacts, 3.5-5mm Straight Cable Entry, Shieldable, IP67 (430 Series)

99-4926-00-07 thumbnail

Part no. : 99-4926-00-07

7 Way Push-Pull Female Cable Connector with Solder Contacts, 3.5-5mm Straight Cable Entry, Shieldable, IP67 (430 Series)

99-4930-00-08 thumbnail

Part no. : 99-4930-00-08

8 Way Push-Pull Female Cable Connector with Solder Contacts, 3.5-5mm Straight Cable Entry, Shieldable, IP67 (430 Series)

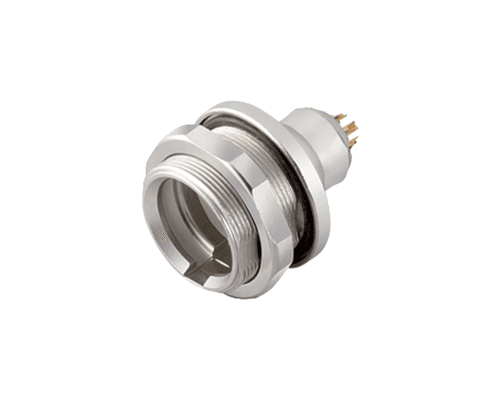

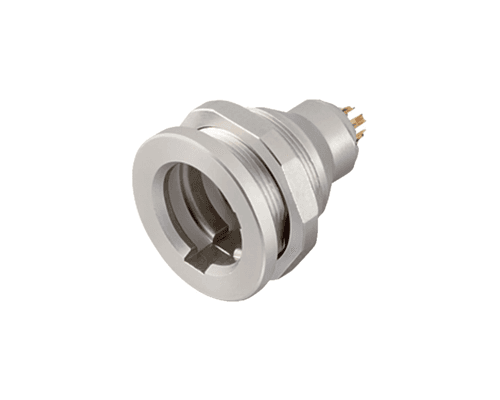

09-4907-025-03 thumbnail

Part no. : 09-4907-025-03

3 Way Push-Pulll Male Jam-Nut Panel Connector with Solder Contacts, IP40 (430 Series)

09-4911-025-04 thumbnail

Part no. : 09-4911-025-04

4 Way Push-Pulll Male Jam-Nut Panel Connector with Solder Contacts, IP40 (430 Series)

09-4927-025-07 thumbnail

Part no. : 09-4927-025-07

7 Way Push-Pull Male Jam-Nut Panel Connector with Solder Contacts, IP40 (430 Series)

09-4931-025-08 thumbnail

Part no. : 09-4931-025-08

8 Way Push-Pull Male Jam-Nut Panel Connector with Solder Contacts, IP40 (430 Series)

09-4907-015-03 thumbnail

Part no. : 09-4907-015-03

3 Way Push-Pull Male Jam-Nut Panel Connector with Solder Contacts, IP67 (430 Series)

09-4911-015-04 thumbnail

Part no. : 09-4911-015-04

4 Way Push-Pull Male Jam-Nut Panel Connector with Solder Contacts, IP67 (430 Series)

09-4915-015-05 thumbnail

Part no. : 09-4915-015-05

5 Way Push-Pull Male Jam-Nut Panel Connector with Solder Contacts, IP67 (430 Series)

09-4927-015-07 thumbnail

Part no. : 09-4927-015-07

7 Way Push-Pull Male Jam-Nut Panel Connector with Solder Contacts, IP67 (430 Series)

09-4931-015-08 thumbnail

Part no. : 09-4931-015-08

8 Way Push-Pull Male Jam-Nut Panel Connector with Solder Contacts, IP67 (430 Series)

09-4907-00-03 thumbnail

Part no. : 09-4907-00-03

3 Way Push-Pull Male Jam-Nut Panel Connector with Solder Contacts, IP67 (430 Series)

09-4911-00-04 thumbnail

Part no. : 09-4911-00-04

4 Way Push-Pull Male Jam-Nut Panel Connector with Solder Contacts, IP67 (430 Series)

09-4915-00-05 thumbnail

Part no. : 09-4915-00-05

5 Way Push-Pull Male Jam-Nut Panel Connector with Solder Contacts, IP67 (430 Series)

09-4931-00-08 thumbnail

Part no. : 09-4931-00-08

8 Way Push-Pull Male Jam-Nut Panel Connector with Solder Contacts, IP67 (430 Series)

09-4907-080-03 thumbnail

Part no. : 09-4907-080-03

3 Way Push-Pull Male Jam-Nut Panel Connector with Solder Contacts, IP67 (430 Series)

09-4915-080-05 thumbnail

Part no. : 09-4915-080-05

5 Way Push-Pull Male Jam-Nut Panel Connector with Solder Contacts, IP67 (430 Series)

09-4927-080-07 thumbnail

Part no. : 09-4927-080-07

7 Way Push-Pull Male Jam-Nut Panel Connector with Solder Contacts, IP67 (430 Series)

09-4931-080-08 thumbnail

Part no. : 09-4931-080-08

8 Way Push-Pull Male Jam-Nut Panel Connector with Solder Contacts, IP67 (430 Series)

09-4907-081-03 thumbnail

Part no. : 09-4907-081-03

3 Way Push-Pull Male Jam-Nut Panel Connector with Solder Contacts, IP67 (430 Series)

09-4911-081-04 thumbnail

Part no. : 09-4911-081-04

4 Way Push-Pull Male Jam-Nut Panel Connector with Solder Contacts, IP67 (430 Series)

09-4915-081-05 thumbnail

Part no. : 09-4915-081-05

5 Way Push-Pull Male Jam-Nut Panel Connector with Solder Contacts, IP67 (430 Series)

09-4927-081-07 thumbnail

Part no. : 09-4927-081-07

7 Way Push-Pull Male Jam-Nut Panel Connector with Solder Contacts, IP67 (430 Series)

09-4931-081-08 thumbnail

Part no. : 09-4931-081-08

8 Way Push-Pull Male Jam-Nut Panel Connector with Solder Contacts, IP67 (430 Series)

09-4908-025-03 thumbnail

Part no. : 09-4908-025-03

3 Way Push-Pull Female Jam-Nut Panel Connector with Solder Contacts, IP40 (430 Series)

09-4912-025-04 thumbnail

Part no. : 09-4912-025-04

4 Way Push-Pull Female Jam-Nut Panel Connector with Solder Contacts, IP40 (430 Series)

09-4916-025-05 thumbnail

Part no. : 09-4916-025-05

7 Way Push-Pull Female Jam-Nut Panel Connector with Solder Contacts, IP40 (430 Series)

09-4932-025-08 thumbnail

Part no. : 09-4932-025-08

8 Way Push-Pull Female Jam-Nut Panel Connector with Solder Contacts, IP40 (430 Series)

09-4908-015-03 thumbnail

Part no. : 09-4908-015-03

3 Way Push-Pull Female Jam-Nut Panel Connector with Solder Contacts, IP67 (430 Series)

09-4912-015-04 thumbnail

Part no. : 09-4912-015-04

4 Way Push-Pull Female Jam-Nut Panel Connector with Solder Contacts, IP67 (430 Series)

09-4916-015-05 thumbnail

Part no. : 09-4916-015-05

5 Way Push-Pull Female Jam-Nut Panel Connector with Solder Contacts, IP67 (430 Series)

09-4928-015-07 thumbnail

Part no. : 09-4928-015-07

7 Way Push-Pull Female Jam-Nut Panel Connector with Solder Contacts, IP67 (430 Series)

09-4932-015-08 thumbnail

Part no. : 09-4932-015-08

8 Way Push-Pull Female Jam-Nut Panel Connector with Solder Contacts, IP67 (430 Series)

09-4908-00-03 thumbnail

Part no. : 09-4908-00-03

3 Way Push-Pull Female Jam-Nut Panel Connector with Solder Contacts, IP67 (430 Series)

09-4912-00-04 thumbnail

Part no. : 09-4912-00-04

4 Way Push-Pull Female Jam-Nut Panel Connector with Solder Contacts, IP67 (430 Series)

09-4916-00-05 thumbnail

Part no. : 09-4916-00-05

5 Way Push-Pull Female Jam-Nut Panel Connector with Solder Contacts, IP67 (430 Series)

09-4928-00-07 thumbnail

Part no. : 09-4928-00-07

7 Way Push-Pull Female Jam-Nut Panel Connector with Solder Contacts, IP67 (430 Series)

09-4932-00-08 thumbnail

Part no. : 09-4932-00-08

8 Way Push-Pull Female Jam-Nut Panel Connector with Solder Contacts, IP67 (430 Series)

09-4908-080-03 thumbnail

Part no. : 09-4908-080-03

3 Way Push-Pull Female Jam-Nut Panel Connector with Solder Contacts, IP67 (430 Series)

09-4912-080-04 thumbnail

Part no. : 09-4912-080-04

4 Way Push-Pull Female Jam-Nut Panel Connector with Solder Contacts, IP67 (430 Series)

09-4916-080-05 thumbnail

Part no. : 09-4916-080-05

5 Way Push-Pull Female Jam-Nut Panel Connector with Solder Contacts, IP67 (430 Series)

09-4928-080-07 thumbnail

Part no. : 09-4928-080-07

7 Way Push-Pull Female Jam-Nut Panel Connector with Solder Contacts, IP67 (430 Series)

09-4932-080-08 thumbnail

Part no. : 09-4932-080-08

8 Way Push-Pull Female Jam-Nut Panel Connector with Solder Contacts, IP67 (430 Series)

09-4908-081-03 thumbnail

Part no. : 09-4908-081-03

3 Way Push-Pull Female Jam-Nut Panel Connector with Solder Contacts, IP67 (430 Series)

09-4912-081-04 thumbnail

Part no. : 09-4912-081-04

4 Way Push-Pull Female Jam-Nut Panel Connector with Solder Contacts, IP67 (430 Series)

09-4916-081-05 thumbnail

Part no. : 09-4916-081-05

5 Way Push-Pull Female Jam-Nut Panel Connector with Solder Contacts, IP67 (430 Series)

09-4928-081-07 thumbnail

Part no. : 09-4928-081-07

7 Way Push-Pull Female Jam-Nut Panel Connector with Solder Contacts, IP67 (430 Series)

09-4932-081-08 thumbnail

Part no. : 09-4932-081-08

8 Way Push-Pull Female Jam-Nut Panel Connector with Solder Contacts, IP67 (430 Series)

08-2965-000-000 thumbnail

Part no. : 08-2965-000-000

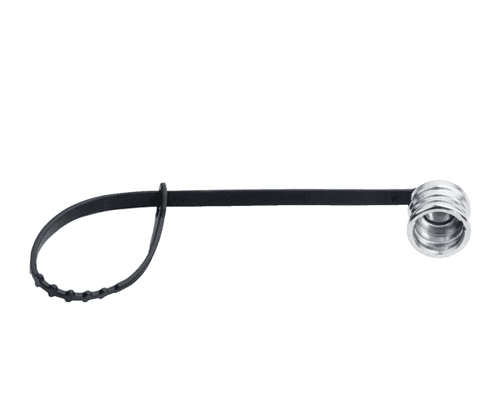

Protection Cover for Cable Connector, with Fixing Rope, IP67 (430 Series)

08-2966-000-000 thumbnail

Part no. : 08-2966-000-000

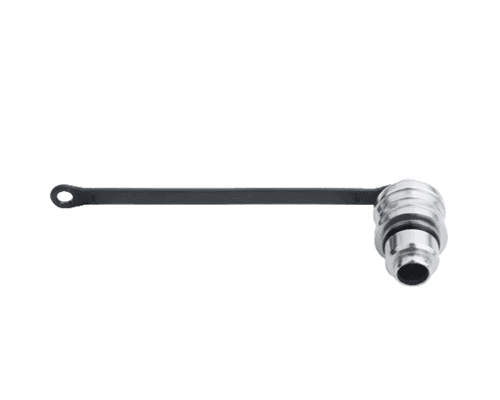

Protection Cover for Panel Connector, with Fixing Rope, IP67 (430 Series)
