Series Description

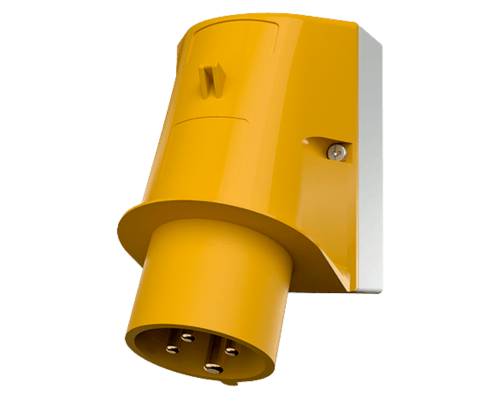

Got a question about this product?Wall mounted inlets for internal and external fixing.
Available in 3, 4 & 5 pole and with IP44 & IP67 environmental sealing.
Conforming to the IEC/EN 60309-1 & IEC/EN 60309-2 functionality & safety standards.
Technical Specification
- Backshell Included Yes
- Body Orientation Straight
- Connector Type Panel Connector
- Contact Bearer Material Plastic
- Contact Plating Brass
- Contacts Included Yes
- Coupling Area Material Plastic
- Current Rating 16A
- Voltage Rating 110V
- Electrical Notes See manufacturers literature for further detail
- Degree of Ingress Protection IP44
- EMC Shielding Capability No
- Gender of Insert Male
- Housing Material Plastic
- Indoor/Outdoor Use Indoor, Outdoor
- Keyway/Coding Type Standard
- Locking System Push-Fit
- Min. Mechanical Mating Cycles 1000
- Max. Wire Gauge/Cross Sectional Area 2.50mm²
- Min. Cable Entry (mm) Determined by accessory used
- Max. Cable Entry (mm) Determined by accessory used
- Number of Ways 4
- Operating Temperature -25 to +40°C
- Positive Earth (PE) Yes
- Shell Size NA
- Termination Method/Technology Screw
