Mennekes wall‑mounted inlet connectors provide safe, durable, and compliant power entry solutions for industrial and commercial installations.
Available in 3, 4, % 5‑pole configurations with current ratings from 16A to 125A and voltage options from 110–500V, they meet IEC/EN 60309‑1 and 60309‑2 standards for global compatibility.
Built for demanding environments, these inlets offer robust IP44 or IP67 protection, ensuring reliable performance against dust, water and harsh conditions.
Certain models feature rear cable entry, knock‑out sections, or aluminium housings for added durability and installation flexibility.
All Mennekes inlets use secure screw‑terminal connections and are tested by independent bodies such as VDE, EAC and CQC, ensuring long service life and dependable electrical safety across industrial applications
For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.
- No. of Contacts: 3-5
- Locking Mechanism: Push-fit, Locking Ring
- Contact Termination: Screw
- Wire Gauge Max: 35.00mm²
- Max. Voltage: 110-500V
- Max. Current: 16-125A
- Ingress Protection Max: IP44, IP67
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
Mennekes wall‑mounted inlet connectors provide safe, durable, and compliant power entry solutions for industrial and commercial installations.
Available in 3, 4, % 5‑pole configurations with current ratings from 16A to 125A and voltage options from 110–500V, they meet IEC/EN 60309‑1 and 60309‑2 standards for global compatibility.
Built for demanding environments, these inlets offer robust IP44 or IP67 protection, ensuring reliable performance against dust, water and harsh conditions.
Certain models feature rear cable entry, knock‑out sections, or aluminium housings for added durability and installation flexibility.
All Mennekes inlets use secure screw‑terminal connections and are tested by independent bodies such as VDE, EAC and CQC, ensuring long service life and dependable electrical safety across industrial applications
For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.
- No. of Contacts: 3-5
- Locking Mechanism: Push-fit, Locking Ring
- Contact Termination: Screw
- Wire Gauge Max: 35.00mm²
- Max. Voltage: 110-500V
- Max. Current: 16-125A
- Ingress Protection Max: IP44, IP67
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances

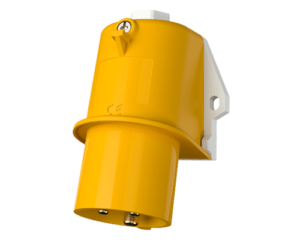

843
3 Way Male Surface Mount Panel Connector with Screw Contacts, M20 Cable Inlet, 16A, 110V/Yellow Type, IP44

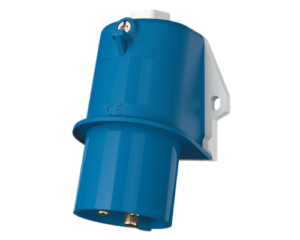

844
3 Way Male Surface Mount Panel Connector with Screw Contacts, M20 Cable Inlet, 16A, 230V/Blue Type, IP44

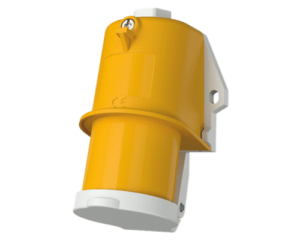

846
3 Way Male Surface Mount Panel Connector with Screw Contacts, M20 Cable Inlet & Integrated Protection Cover, 16A, 110V/Yellow Type, IP44

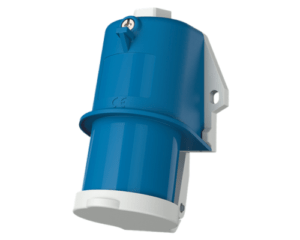

847
3 Way Male Surface Mount Panel Connector with Screw Contacts, M20 Cable Inlet & Integrated Protection Cover, 16A, 230V/Blue Type, IP44

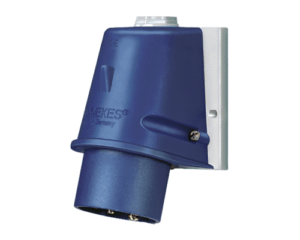

802
3 Way Male Surface Mount Panel Connector with Screw Contacts, M25 Cable Inlet, 32A, 230V/Blue Type, IP44
800
4 Way Male Surface Mount Panel Connector with Screw Contacts, M25 Cable Inlet, 16A, 400V/Red Type, IP44

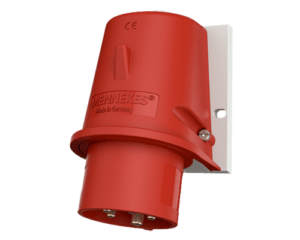

801
5 Way Male Surface Mount Panel Connector with Screw Contacts, M25 Cable Inlet, 16A, 400V/Red Type, IP44

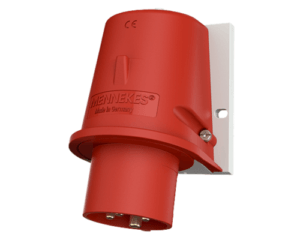

803
4 Way Male Surface Mount Panel Connector with Screw Contacts, M25 Cable Inlet, 32A, 400V/Red Type, IP44

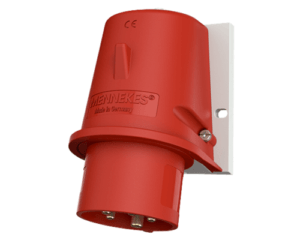

804
5 Way Male Surface Mount Panel Connector with Screw Contacts, M32 Cable Inlet, 32A, 400V/Red Type, IP44
331

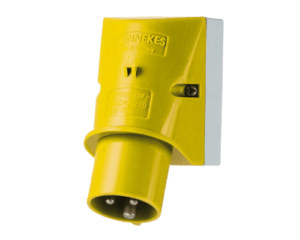

3 Way Male Surface Mount Panel Connector with Screw Contacts, M20 Cable Inlet, 16A, 110V/Yellow Type, IP44

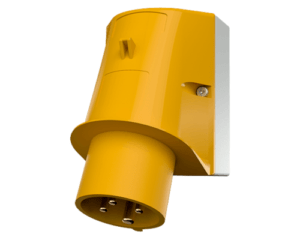

334
4 Way Male Surface Mount Panel Connector with Screw Contacts, M20 Cable Inlet, 16A, 110V/Yellow Type, IP44

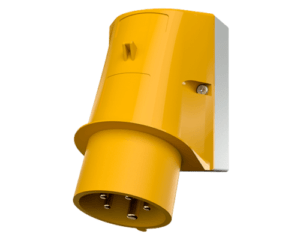

340
5 Way Male Surface Mount Panel Connector with Screw Contacts, M20 Cable Inlet, 16A, 110V/Yellow Type, IP44

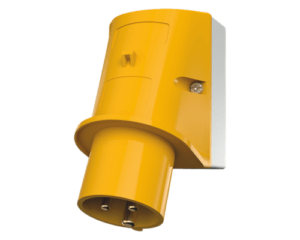

343
3 Way Male Surface Mount Panel Connector with Screw Contacts, M32 Cable Inlet, 32A, 110V/Yellow Type, IP44
352
5 Way Male Surface Mount Panel Connector with Screw Contacts, M32 Cable Inlet, 32A, 110V/Yellow Type, IP44

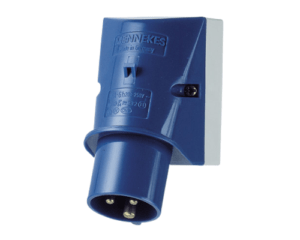

332
3 Way Male Surface Mount Panel Connector with Screw Contacts, M20 Cable Inlet, 16A, 230V/Blue Type, IP44
335
4 Way Male Surface Mount Panel Connector with Screw Contacts, M20 Cable Inlet, 16A, 230V/Blue Type, IP44

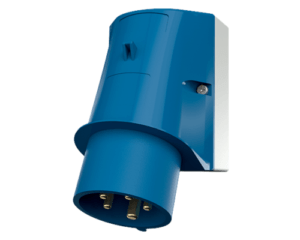

341
5 Way Male Surface Mount Panel Connector with Screw Contacts, M20 Cable Inlet, 16A, 230V/Blue Type, IP44

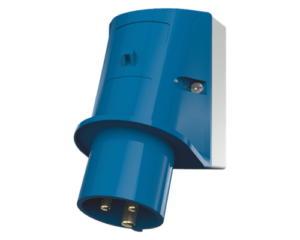

344
3 Way Male Surface Mount Panel Connector with Screw Contacts, M32 Cable Inlet, 32A, 230V/Blue Type, IP44

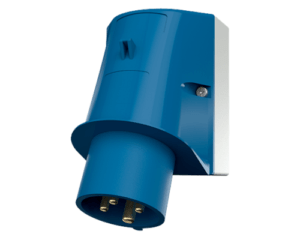

347
4 Way Male Surface Mount Panel Connector with Screw Contacts, M32 Cable Inlet, 32A, 230V/Blue Type, IP44
353
5 Way Male Surface Mount Panel Connector with Screw Contacts, M32 Cable Inlet, 32A, 230V/Blue Type, IP44

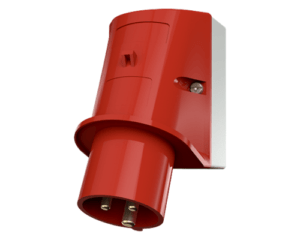

333
3 Way Male Surface Mount Panel Connector with Screw Contacts, M20 Cable Inlet, 16A, 400V/Red Type, IP44
336
4 Way Male Surface Mount Panel Connector with Screw Contacts, M20 Cable Inlet, 16A, 400V/Red Type, IP44
342
5 Way Male Surface Mount Panel Connector with Screw Contacts, M20 Cable Inlet, 16A, 400V/Red Type, IP44
345

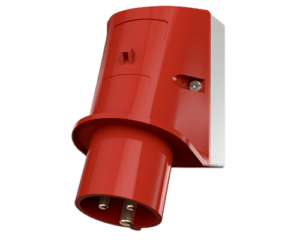

3 Way Male Surface Mount Panel Connector with Screw Contacts, M32 Cable Inlet, 32A, 400V/Red Type, IP44
