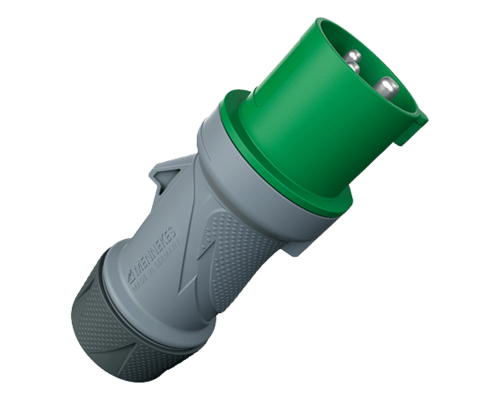

Image may be representative of a range of products, see literature to confirm.
Authorised Partner
of the industry’s leading manufacturers
Credit Accounts
to simplify the ordering process
Scheduled Orders
over a 12-month
period
Technical Expertise
in-house product
specialists
Personalised Support
designated Coordinators for your specific needs
Certification
ISO 9001 quality management system
Series Description
Got a question about this product?Cable Plugs available in 3, 4 & 5 pole and with choices of yellow, blue, red, black and green coloured shells to represent the working voltage.
Mennekes cable plugs have versions allowing for 16 to 63A and 110 to 500V.
Conforming to the IEC/EN 60309-1 & IEC/EN 60309-2 functionality & safety standards.
Technical Specification
- Approvals VDE
- Backshell Included Yes
- Body Orientation Straight
- Connector Type Cable Connector
- Contact Plating Nickel
- Contacts Included Yes
- Coupling Area Material Plastic
- Current Rating 16A
- Voltage Rating 50-500V
- Degree of Ingress Protection IP54
- EMC Shielding Capability No
- Gender of Insert Male
- Housing Material Plastic
- Indoor/Outdoor Use Indoor, Outdoor
- Keyway/Coding Type Standard
- Locking System Push-Fit
- Min. Mechanical Mating Cycles 1000
- Max. Wire Gauge/Cross Sectional Area 2.50mm²
- Min. Cable Entry (mm) 7
- Max. Cable Entry (mm) 13
- Number of Ways 3
- Operating Temperature -25 to +40°C
- Positive Earth (PE) Yes
- Shell Type NA
- Termination Method/Technology Screw
