Featuring IP67 / IP69K ingress protection and industry standard M23x1 screw locking mechanism, the M23-Signal connector system from HUMMEL is particularly robust, making it the perfect choice for use in harsh environments. The circular connectors form part of a series that caters for cable ODs of up to 17mm.
The waterproof connectors are sealed to IP67 and IP69K in mated conditions, and therefore ensure an excellent and constant sealed connection. Cable connectors are available in both straight or angled orientation with various pin counts ranging from 6 to 19 providing a current carrying capacity of up to 20A.
Both front and rear mount options are available on the panel connector shells and with optional rear cable strain relief.
To help limit inventory levels and to enable customers to tweak the setup and amend for their own specifications, individual parts have been included on:
- Contacts
- Inserts
- Shells
For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.
- No. of Contacts: 6-19
- Locking Mechanism: Screw, Twist Lock (Twilock & Twilock-S)
- Contact Termination: Crimp, Solder, Dip-Solder
- Wire Gauge Max: 2.50mm²
- Cable Diameter Range: 3-17mm
- Connector Types: Cable to Panel, Cable to Cable
- Max. Voltage: 100-300V
- Max. Current: 8-20A
- Ingress Protection Max: IP67, IP69K
- Pre-wired Options: On Request
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
Featuring IP67 / IP69K ingress protection and industry standard M23x1 screw locking mechanism, the M23-Signal connector system from HUMMEL is particularly robust, making it the perfect choice for use in harsh environments. The circular connectors form part of a series that caters for cable ODs of up to 17mm.
The waterproof connectors are sealed to IP67 and IP69K in mated conditions, and therefore ensure an excellent and constant sealed connection. Cable connectors are available in both straight or angled orientation with various pin counts ranging from 6 to 19 providing a current carrying capacity of up to 20A.
Both front and rear mount options are available on the panel connector shells and with optional rear cable strain relief.
To help limit inventory levels and to enable customers to tweak the setup and amend for their own specifications, individual parts have been included on:
- Contacts
- Inserts
- Shells
For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.
- No. of Contacts: 6-19
- Locking Mechanism: Screw, Twist Lock (Twilock & Twilock-S)
- Contact Termination: Crimp, Solder, Dip-Solder
- Wire Gauge Max: 2.50mm²
- Cable Diameter Range: 3-17mm
- Connector Types: Cable to Panel, Cable to Cable
- Max. Voltage: 100-300V
- Max. Current: 8-20A
- Ingress Protection Max: IP67, IP69K
- Pre-wired Options: On Request
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances

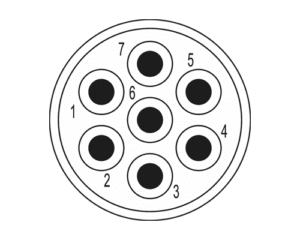

7.003.907.102
7 Way M23 (Signal) Female Insert for Socket Contacts
7.003.912.101
12 Way M23 (Signal) Male Insert for Pin Contacts

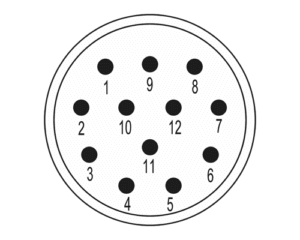

7.003.912.112
12 Way M23 (Signal) Female Insert for Socket Contacts, PE on Position 9

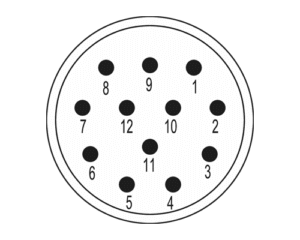

7.003.912.111
12 Way M23 (Signal) Male Insert for Pin Contacts, PE on Position 9
7.003.912.102
12 Way M23 (Signal) Female Insert for Socket Contacts
7.003.917.101
17 Way M23 (Signal) Male Insert for Pin Contacts

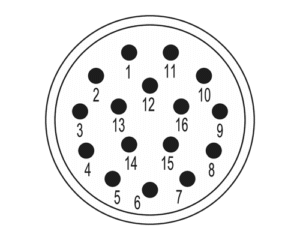

7.003.916.102
16 Way M23 (Signal) Female Insert for Socket Contacts

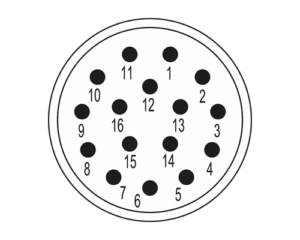

7.003.916.101
16 Way M23 (Signal) Male Insert for Pin Contacts
7.003.919.102
19 Way M23 (Signal) Female Insert for Socket Contacts
7.003.919.101
19 Way M23 (Signal) Male Insert for Pin Contacts
7.003.917.102
17 Way M23 (Signal) Female Insert for Socket Contacts

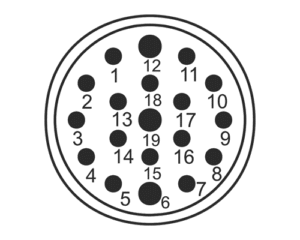

7.003.919.112
19 Way M23 (Signal) Female Insert for Socket Contacts, PE on Position 12

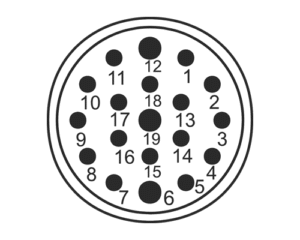

7.003.919.111
19 Way M23 (Signal) Male Insert for Pin Contacts, PE on Position 12
7.003.981.102
9 Way M23 (Signal) Female Insert for Socket Contacts

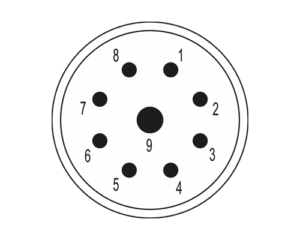

7.003.981.101
9 Way M23 (Signal) Male Insert for Pin Contacts
7.004.912.101
12 Way M23 (Signal) Male Insert for Pin Contacts, Counter-clockwise Pinout
7.004.912.112
12 Way M23 (Signal) Female Insert for Socket Contacts,PE on Position 9, Counter-clockwise Pinout
7.004.912.111
12 Way M23 (Signal) Male Insert for Pin Contacts, PE on Position 9, Counter-clockwise Pinout
7.004.912.102
12 Way M23 (Signal) Female Insert for Socket Contacts, Counter-clockwise Pinout

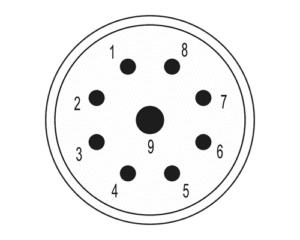

7.004.981.101
9 Way M23 (Signal) Male Insert for Pin Contacts, Counter-clockwise Pinout

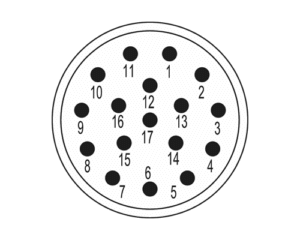

7.004.917.102
17 Way M23 (Signal) Female Insert for Socket Contacts, Counter-clockwise Pinout

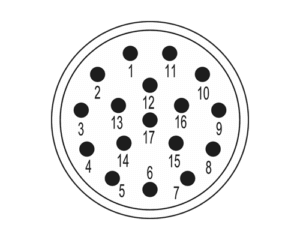

7.004.917.101
17 Way M23 (Signal) Male Insert for Pin Contacts, Counter-clockwise Pinout

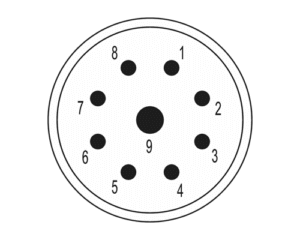

7.004.981.102
9 Way M23 (Signal) Female Insert for Socket Contacts, Counter-clockwise Pinout

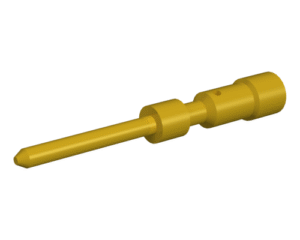

7.010.901.021
1mm Crimp Pin Contact, Machined Construction, Gold Plating, 0.75-1.50mm²
