Sales Description

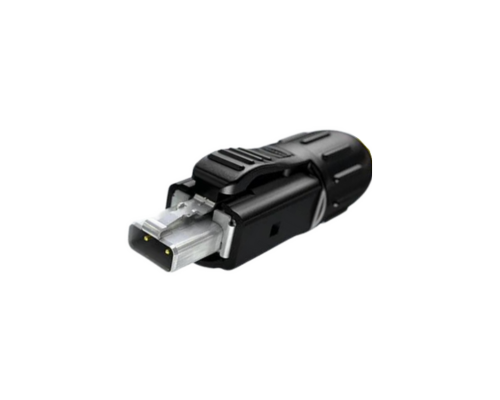

Got a question about this product?Compact rectangular connector system with industry standard IEC 63171-6 latch locking interface.
T1 Industrial® single pair ethernet connectors are available in a 2 way format with a transmission speed of up to 10 Gbit per second and a current carrying capacity of up to 4A per contact.
The series caters for cable OD’s of up to 6mm, has a wire gauge max. of 0.32mm² and is capable of offering IP20 ingress protection in mated state.
Technical Specification
- Backshell Included Yes
- Body Orientation Straight
- Connector Type Cable Connector
- Contact Plating NA
- Contacts Included No
- Coupling Area Material Metal
- Current Rating 4A
- Voltage Rating 60V
- Degree of Ingress Protection IP20
- EMC Sheilding Capability Yes
- Gender of Insert Male
- Housing Material Plastic
- Keyway/Coding Type Standard
- Locking System Latch
- Min. Mechanical Mating Cycles 1000
- Max. Wire Gauge/Cross Sectional Area 0.32mm²
- Min. Cable Entry (mm) 4.5
- Max. Cable Entry (mm) 6
- Number of Ways 2
- Operating Temperature -40 to +80°C
- Positive Earth (PE) No
- Shell Size NA
- Termination Method/Technology Crimp
