Sales Description

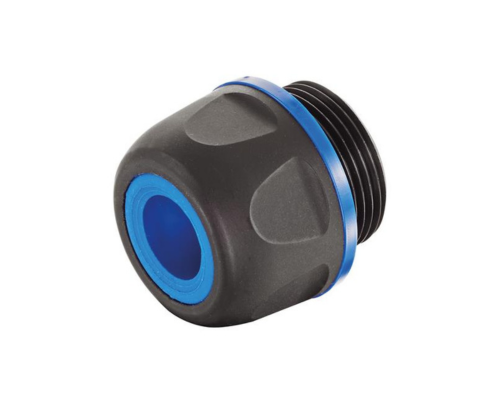

Got a question about this product?A range of robust Ecolab-certified industrial connectors that are specially designed for the requirements of the food & beverage industry.
The hoods, housings and seals of the F+B connector system protect the internal contacts against the water jet from high-pressure cleaners & aggressive cleaning agents.
With IP69K ingress protection, a variety of inserts & termination methods, and with an easy-to-clean design the range offers users piece of mind in demanding applications.
Technical Specification
- Approvals Ecolab, FDA
- Body Orientation Straight
- Cable Seal Material TPU
- Colour Black
- Degree of Ingress Protection IP67, IP69
- EMC Sheilding Capability No
- Housing Material Polyamide
- Locking Nut Included No
- Min. Cable Entry (mm) 16
- Max. Cable Entry (mm) 18
- Operating Temperature -40 to +100°C
- Panel Seal Included Yes
- Thread Length 8mm
- Thread Type M25
