Sales Description

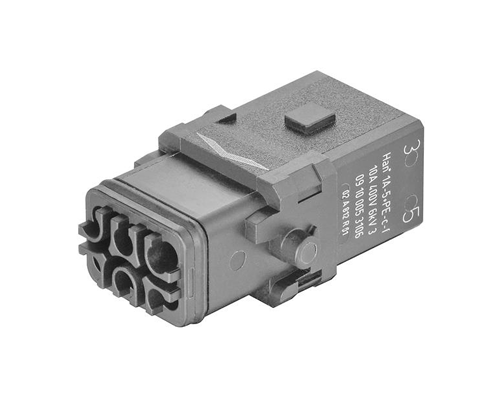

Got a question about this product?Compact multi-pin rectangular connector system with lever or latch locking mechanism.
Han 1A connectors offer pin-counts from 3 to 12 with a current carrying capacity of up to 16A per contact.
The series caters for cable OD’s of up to 10mm, has a wire gauge max. of 4.00mm² and is capable of offering IP20 & IP65 ingress protection in mated state.
Technical Specification
- Approvals UL, CSA
- Backshell Included No
- Body Orientation Straight
- Connector Type Cable Connector
- Contact Plating NA
- Contacts Included No
- Coupling Area Material Plastic
- Current Rating 10A
- Voltage Rating 400V
- Electrical Notes Current & voltage rating according to UL. Contact inserts must not be coupled or decoupled under electrical load
- Degree of Ingress Protection IP20
- EMC Sheilding Capability No
- Gender of Insert Female
- Housing Material Plastic
- Keyway/Coding Type Standard
- Locking System Lever
- Min. Mechanical Mating Cycles 100
- Max. Wire Gauge/Cross Sectional Area 2.50mm²
- Min. Cable Entry (mm) NA
- Max. Cable Entry (mm) NA
- Number of Ways 6
- Operating Temperature -30 to +90°C
- Positive Earth (PE) Yes
- Shell Size NA
- Termination Method/Technology Crimp
