CONEC D-Sub Connector SnapLock Hoods

The CONEC SnapLock locking system for D-Sub connectors and hoods enables a fast and secure connection and locking mechanism without additional screws. A spring clip integrated into the hood locks onto a latch pin mounted on the mating connector.

Technical Features & Applications
The SnapLock system is specifically designed for applications requiring a robust and vibration-resistant connection. With the option to retrofit using a bolt kit, the system can also be used with standard D-Sub connectors. This opens up a wide range of applications, such as in automation technology, measurement technology, and medical engineering.

The key benefits of the SnapLock system:

• Time savings thanks to tool-free assembly & disassembly
• Enhanced process reliability with a defined locking mechanism
• Vibration resistance, even in demanding environments
• Retrofit capability for existing D-Sub connectors

Expanding the Portfolio: CONEC SnapLock RetroFit Sets & Bundles
With the new CONEC RetroFit Sets, the SnapLock system is now available as a ready-to-use solution.

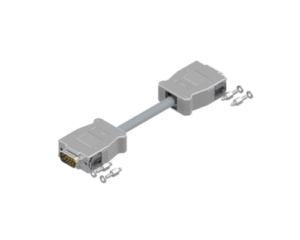

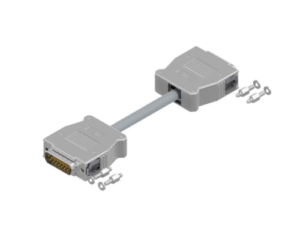

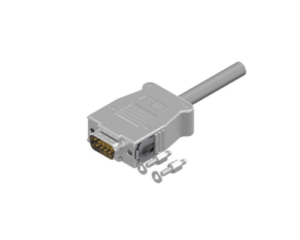

Pre-wired single and double ended assemblies are offered in 9 & 15 way versions of the metallized SnapLock hood, including a kit with threaded bolts.

The pre-assembled sets are available in three standard lengths: 1.8m, 3m & 5m.

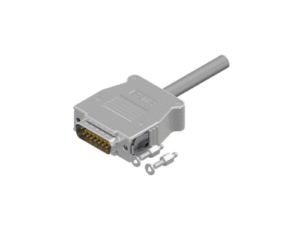

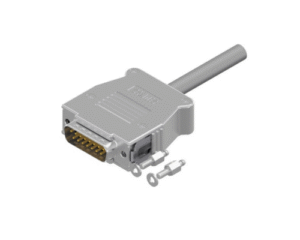

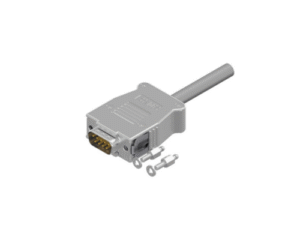

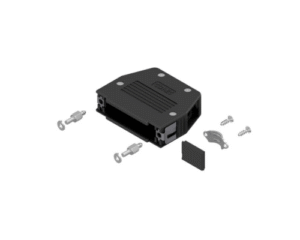

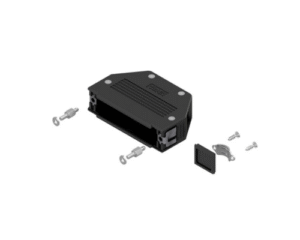

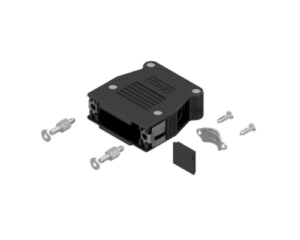

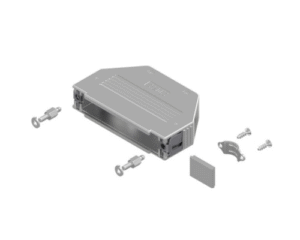

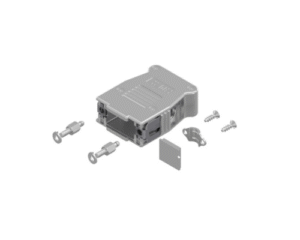

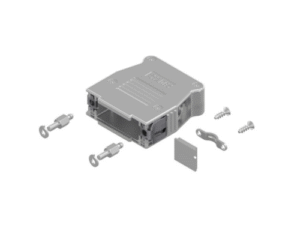

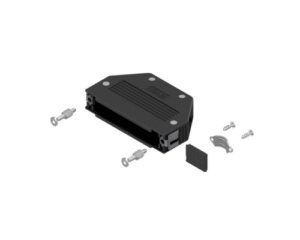

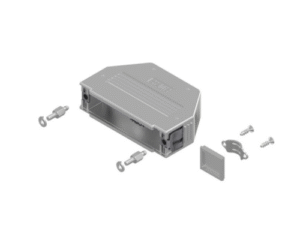

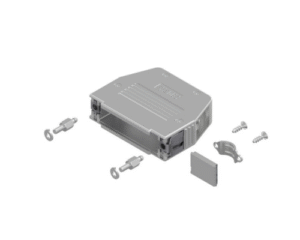

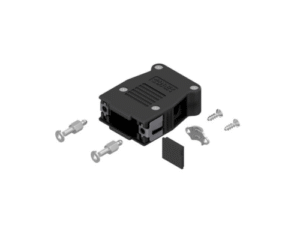

Also newly available are the SnapLock Bundles, which include the SnapLock hood along with the necessary mounting accessories for retrofitting existing systems.

The SnapLock Bundles are offered from 9 to 50 way (shell sizes 1 to 5).

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.

• Sizes: 1-5
• Cable Entry Orientation: Variable
• Shell Material: Plastic, Metalized Plastic
• Locking Mechanism: SnapLock
• Shell Assembly: Screws
• Ingress Protection: IP20

Electrical Notes

See literature for derating curves

Safety Notes

Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury

Ingress Protection Notes

Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise

Additional accessories may also be required to maintain IP rating in some instances
