- Full Description
- Features & Specification
- Important Notices
Cables are available in shielded or unshielded format, in 3, 4, 5, 6 & 8 way and with grey PVC or black PUR jackets.
100m lengths are supplied as standard and other lengths are available on request.
For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.
- Conductor Range: 3-8
- Temperature Range: -50 to +105°C (fixed), -25 to +105°C (flex)
- Wire Gauge Range: 0.14-0.34mm²
- Max. Voltage: 300V
- EMC Shielding Capability: Yes
- Cable Jacket Material: PVC, PUR
- Wire Insulation Material: PVC, PP
- Jacket Colour: Grey, Black
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
Cables are available in shielded or unshielded format, in 3, 4, 5, 6 & 8 way and with grey PVC or black PUR jackets.
100m lengths are supplied as standard and other lengths are available on request.
For a more detailed description of this connector series please see the manufacturer’s brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001.
- Conductor Range: 3-8
- Temperature Range: -50 to +105°C (fixed), -25 to +105°C (flex)
- Wire Gauge Range: 0.14-0.34mm²
- Max. Voltage: 300V
- EMC Shielding Capability: Yes
- Cable Jacket Material: PVC, PUR
- Wire Insulation Material: PVC, PP
- Jacket Colour: Grey, Black
Electrical Notes
See literature for derating curves
Safety Notes
Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury
Ingress Protection Notes
Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise
Additional accessories may also be required to maintain IP rating in some instances
08-3082-000-000

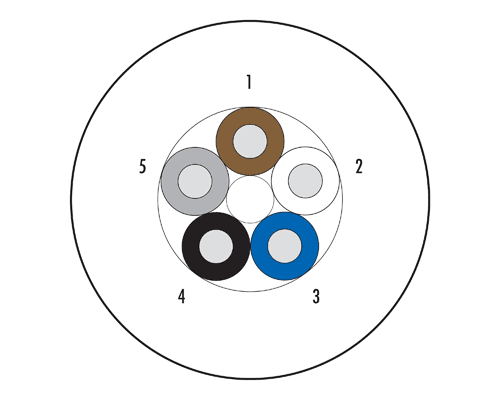

Sensor & Automation Cable, 5 x 0.34mm², Black PUR Jacket, 300V, 100m Length
08-3081-000-000

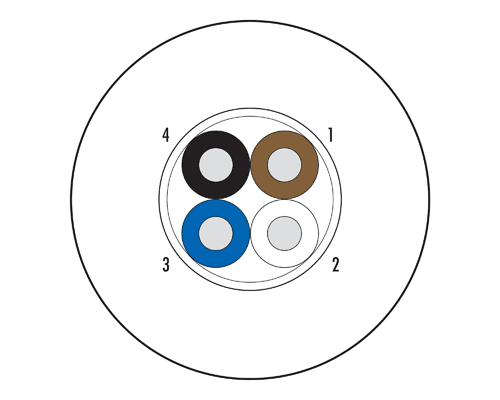

Sensor & Automation Cable, 4 x 0.34mm², Black PUR Jacket, 300V, 100m Length
08-3080-000-000

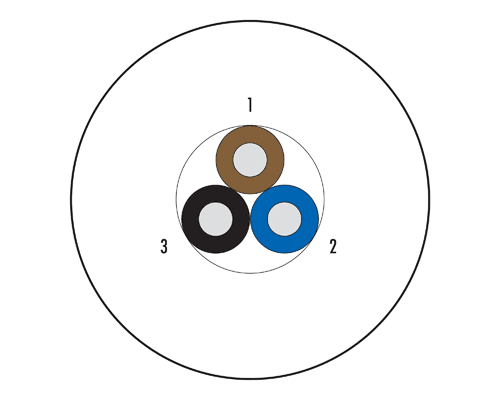

Sensor & Automation Cable, 3 x 0.34mm², Black PUR Jacket, 300V, 100m Length
08-3087-000-000
Sensor & Automation Cable, 4 x 0.34mm², Black PUR Jacket, Shielded, 300V, 100m Length
08-3086-000-000

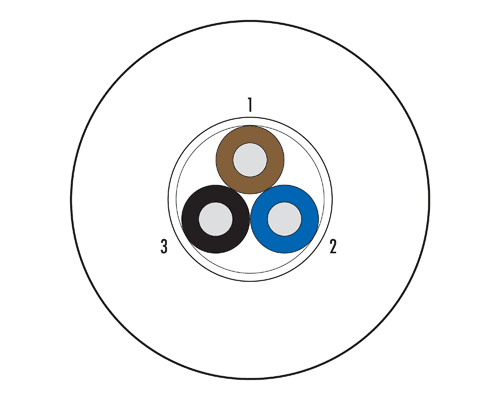

Sensor & Automation Cable, 3 x 0.34mm², Black PUR Jacket, Shielded, 300V, 100m Length
08-3085-000-000
Sensor & Automation Cable, 5 x 0.34mm², Grey PVC Jacket, 300V, 100m Length
08-3084-000-000
Sensor & Automation Cable, 4 x 0.34mm², Grey PVC Jacket, 300V, 100m Length
08-3083-000-000
Sensor & Automation Cable, 3 x 0.34mm², Grey PVC Jacket, 300V, 100m Length
08-3094-000-000

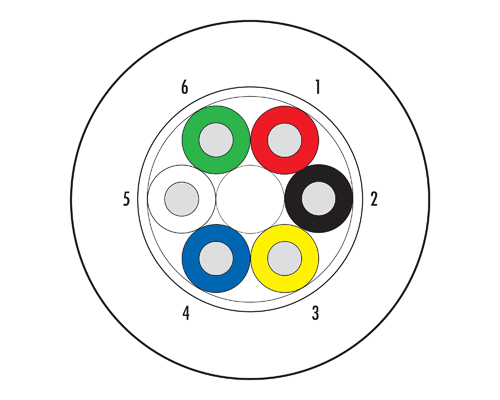

Sensor & Automation Cable, 6 x 0.25mm², Black PUR Jacket, Shielded, 300V, 100m Length
08-3091-000-000
Sensor & Automation Cable, 5 x 0.25mm², Grey PVC Jacket, Shielded, 300V, 100m Length
08-3090-000-000
Sensor & Automation Cable, 4 x 0.34mm², Grey PVC Jacket, Shielded, 300V, 100m Length
08-3089-000-000
Sensor & Automation Cable, 3 x 0.34mm², Grey PVC Jacket, Shielded, 300V, 100m Length
08-3088-000-000

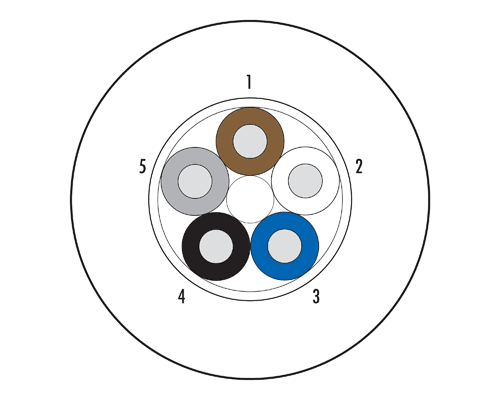

Sensor & Automation Cable, 5 x 0.25mm², Black PUR Jacket, Shielded, 300V, 100m Length
08-3096-000-000
Sensor & Automation Cable, 5 x 0.25mm², Black PUR Jacket, Shielded, 300V, 100m Length
08-3095-000-000

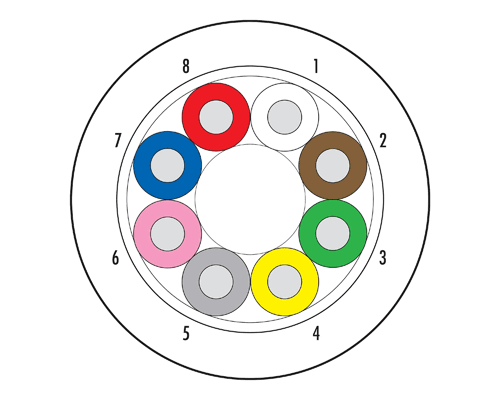

Sensor & Automation Cable, 8 x 0.14mm², Black PUR Jacket, Shielded, 300V, 100m Length
