binder RD24 Power (692, 693 Series)

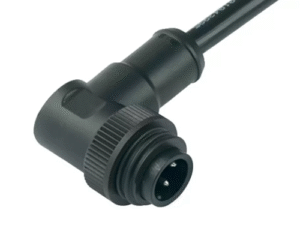

binder’s RD24 Power Connectors are a series of strong and robust waterproof circulars in both 4 (3+PE) and 7 (6+PE) pole variant.

The series has an array of choices on both cable connector and panel receptacle with each option having a UL, VDE, SEV alternative for applications where approval markings are necessary.

The RD24 series is often used for both cable to cable setups where users wish to connect a run/extension piece or for the standard cable to panel setup.

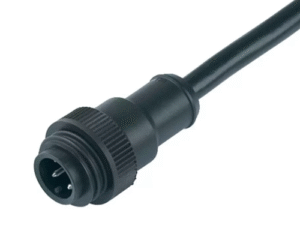

Cable connectors are available in both straight and angled with a range of gland entries catering for 6-17mm cable OD and with screw, solder and crimp termination.

Panel receptacles allow for a max wire gauge of 0.75mm² on the 7 pole, up to 2.50mm² on 4 pole and also have termination options of screw, solder and crimp.

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001

• No. of Contacts: 4 & 7
• Locking Mechanism: Screw
• Contact Termination: Solder, Screw, Crimp
• Wire Gauge Max: 2.50mm²
• Cable Diameter Range: 6-17mm
• Connector Types: Cable to Panel, Cable to Cable
• Max. Voltage: 250-600V
• Max. Current: 8-16A
• Ingress Protection Max: IP67
• Pre-wired Options: Yes

Electrical Notes

See literature for derating curves

Safety Notes

Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury

Ingress Protection Notes

Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise

Additional accessories may also be required to maintain IP rating in some instances
