binder Push-Pull Miniature (440 Series)

The binder Push-Pull miniature 440 series is a compact range of plastic bodied circular connectors with a simple but secure locking mechanism ideal for applications with restricted space.

The series has nine different layouts ranging from 3-19 ways in both male and female cable connectors and mating panel receptacles offering both IP40 and IP67 ingress protection.

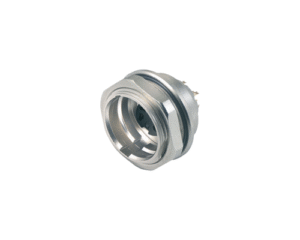

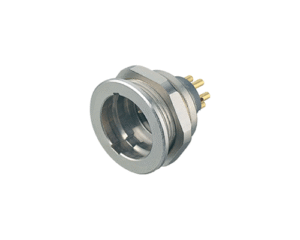

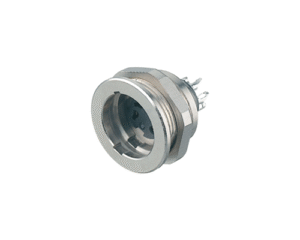

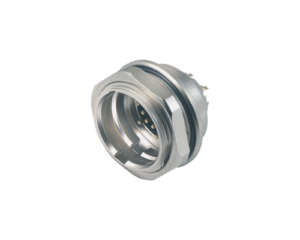

The connectors allow a max wire gauge of 0.25mm² on 12, 14 and 19 way variants but cater for a larger wire gauge of up to 0.75mm² on 3-8 way options. Cable connectors cater for 4-8mm cable OD and allow for shielding. Panel receptacles are available in both front and rear fastened which further widens their scope.

For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.

For a personalised quotation on any of the part numbers seen in this range please complete the ‘Quick Quote’ form or simply call us on 01744 815001

• No. of Contacts: 3-19
• Locking Mechanism: Push-Pull
• Contact Termination: Solder
• Wire Gauge Max: 0.75mm²
• Cable Diameter Range: 4-8mm
• Connector Types: Cable to Panel
• Max. Voltage: 60-250V
• Max. Current: 1-7A
• Ingress Protection Max: IP67
• Pre-wired Options: No

Electrical Notes

See literature for derating curves

Safety Notes

Connectors must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury

Ingress Protection Notes

Rating only guaranteed when locked to the proper mating half from the same manufacturer unless stated otherwise

Additional accessories may also be required to maintain IP rating in some instances
