binder 7/8” (820, 870 Series)
In brief:
Robust multi-pin circular connector system with industry standard 7/8" UN 16 Screw Locking interface.
7/8" connectors offer pin-counts from 2 to 5 with a current carrying capacity of up to 12A per contact.
The series caters for cable OD’s of up to 14mm, has a wire gauge max. of 2.50mm² and is capable of offering IP67 ingress protection in mated state or with the use of a protection cover.
Robust and compact circular connectors from one of the industry’s most trusted brands
binder 7/8” series is a range of robust waterproof circular connectors with screw lock mating mechanism.
The connectors are available in 3 (2+PE), 4 (3+PE) and 5 (4+PE) way variant in both cable plug and panel receptacle.
Field attachable cable plugs offer up to 2.50mm² wire gauge and a cable OD maximum of 14mm. A version with stainless steel locking ring allows for use in clean environments and where water is present. As well as straight and angled orientation, cable plugs are also available moulded in 2, 5 and 10m lengths. Cable is black PUR as standard.

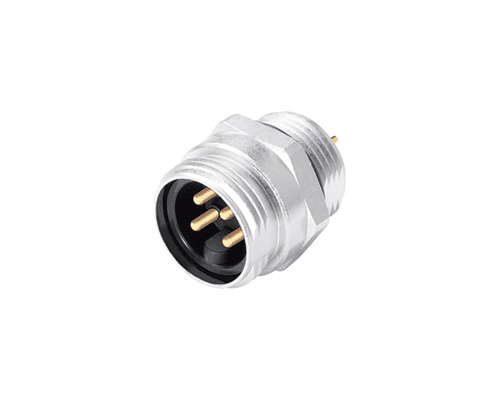

Panel receptacles offer dip solder termination for use with PCB’s, or to speed up the installation process, with pre-terminated 200mm wires.
For a more detailed description of this connector series please see the manufacturers brochure which is available to download above.
For a personalised quotation on any of the part numbers seen in this range please complete the 'Quick Quote' form or simply call us on 01744 815001
We have many products in this series, find what you need using the filters below
142 products match your criteria:
Part no. : 99-2441-12-03

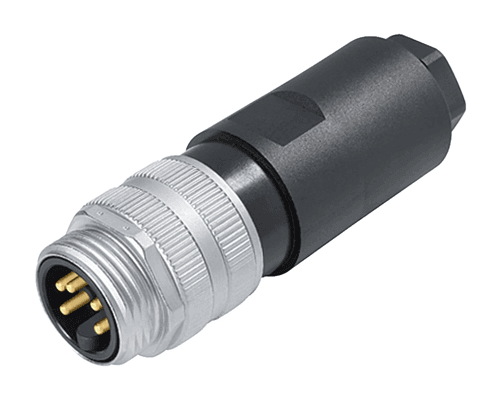

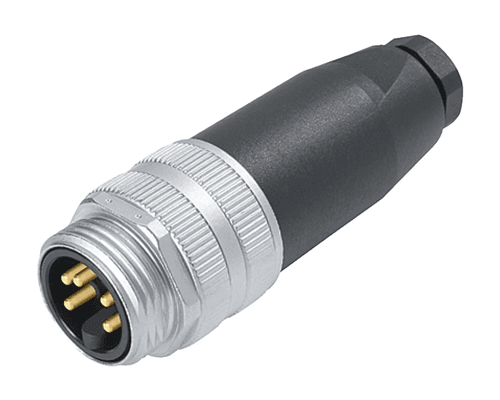

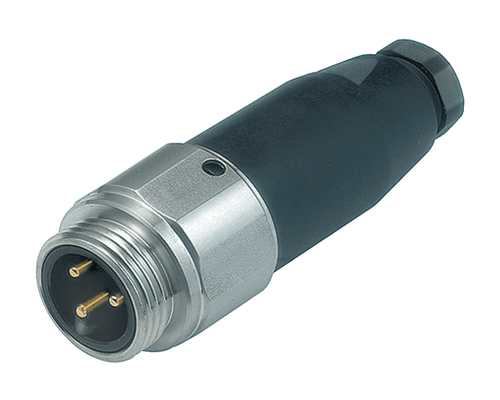

3 Way 7/8" Male Cable Connector with Screw Contacts, 6-8mm Straight Cable Entry, IP67 (820 Series)
Part no. : 99-2441-32-03
3 Way 7/8" Male Cable Connector with Screw Contacts, 10-12mm Straight Cable Entry, IP67 (820 Series)
Part no. : 99-2443-12-04
4 Way 7/8" Male Cable Connector with Screw Contacts, 6-8mm Straight Cable Entry, IP67 (820 Series)
Part no. : 99-2443-32-04
4 Way 7/8" Male Cable Connector with Screw Contacts, 10-12mm Straight Cable Entry, IP67 (820 Series)
Part no. : 99-2445-12-05
5 Way 7/8" Male Cable Connector with Screw Contacts, 6-8mm Straight Cable Entry, IP67 (820 Series)
Part no. : 99-2445-32-05
5 Way 7/8" Male Cable Connector with Screw Contacts, 10-12mm Straight Cable Entry, IP67 (820 Series)
Part no. : 99-2445-33-05
5 Way 7/8" Male Cable Connector with Screw Contacts, 10-12mm Straight Cable Entry, IP67 (820 Series)
Part no. : 99-2441-21-03
3 Way 7/8" Male Cable Connector with Screw Contacts, 8-10mm Straight Cable Entry, IP67 (820 Series)
Part no. : 99-2441-42-03
3 Way 7/8" Male Cable Connector with Screw Contacts, 12-14mm Straight Cable Entry, IP67 (820 Series)
Part no. : 99-2443-21-04
4 Way 7/8" Male Cable Connector with Screw Contacts, 8-10mm Straight Cable Entry, IP67 (820 Series)
Part no. : 99-2443-42-04
4 Way 7/8" Male Cable Connector with Screw Contacts, 12-14mm Straight Cable Entry, IP67 (820 Series)
Part no. : 99-2445-21-05
5 Way 7/8" Male Cable Connector with Screw Contacts, 8-10mm Straight Cable Entry, IP67 (820 Series)
Part no. : 99-2445-42-05
5 Way 7/8" Male Cable Connector with Screw Contacts, 12-14mm Straight Cable Entry, IP67 (820 Series)
Part no. : 99-2445-23-05
5 Way 7/8" Male Cable Connector with Screw Contacts, 8-10mm Straight Cable Entry, IP67 (820 Series)
Part no. : 99-2445-43-05
5 Way 7/8" Male Cable Connector with Screw Contacts, 12-14mm Straight Cable Entry, IP67 (820 Series)
Part no. : 99-2441-282-03
3 Way 7/8" Male Cable Connector with Screw Contacts, 6-8mm Straight Cable Entry, Stainless Steel Coupling Area, IP67 (820 Series)
Part no. : 99-2443-282-04
4 Way 7/8" Male Cable Connector with Screw Contacts, 6-8mm Straight Cable Entry, Stainless Steel Coupling Area, IP67 (820 Series)
Part no. : 99-2445-282-05
5 Way 7/8" Male Cable Connector with Screw Contacts, 6-8mm Straight Cable Entry, Stainless Steel Coupling Area, IP67 (820 Series)
Part no. : 99-2441-52-03

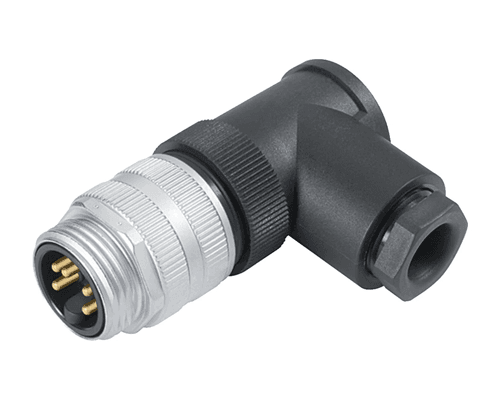

3 Way 7/8" Male Cable Connector with Screw Contacts, 6-8mm Angled Cable Entry, IP67 (820 Series)
Part no. : 99-2443-52-04
4 Way 7/8" Male Cable Connector with Screw Contacts, 6-8mm Angled Cable Entry, IP67 (820 Series)
Part no. : 99-2445-52-05
5 Way 7/8" Male Cable Connector with Screw Contacts, 6-8mm Angled Cable Entry, IP67 (820 Series)
Part no. : 99-2441-62-03
3 Way 7/8" Male Cable Connector with Screw Contacts, 8-10mm Angled Cable Entry, IP67 (820 Series)
Part no. : 99-2441-72-03
3 Way 7/8" Male Cable Connector with Screw Contacts, 10-12mm Angled Cable Entry, IP67 (820 Series)
Part no. : 99-2443-62-04
4 Way 7/8" Male Cable Connector with Screw Contacts, 8-10mm Angled Cable Entry, IP67 (820 Series)
Part no. : 99-2443-72-04
4 Way 7/8" Male Cable Connector with Screw Contacts, 10-12mm Angled Cable Entry, IP67 (820 Series)
Part no. : 99-2445-62-05
5 Way 7/8" Male Cable Connector with Screw Contacts, 8-10mm Angled Cable Entry, IP67 (820 Series)
Part no. : 99-2445-72-05
5 Way 7/8" Male Cable Connector with Screw Contacts, 10-12mm Angled Cable Entry, IP67 (820 Series)
Part no. : 99-2445-63-05
5 Way 7/8" Male Cable Connector with Screw Contacts, 8-10mm Angled Cable Entry, IP67 (820 Series)
Part no. : 99-2445-73-05
5 Way 7/8" Male Cable Connector with Screw Contacts, 10-12mm Angled Cable Entry, IP67 (820 Series)
Part no. : 99-2440-12-03

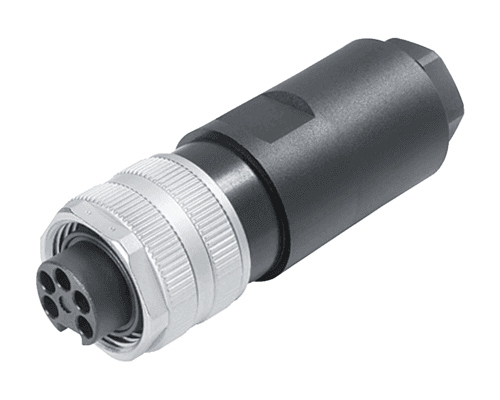

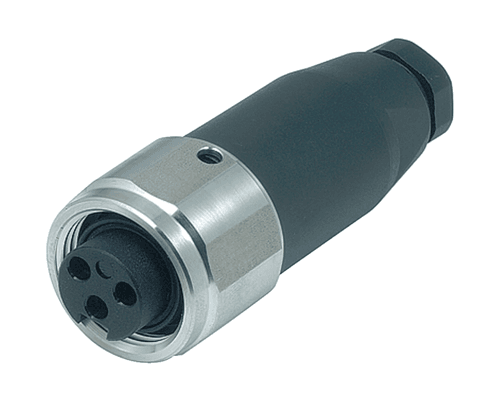

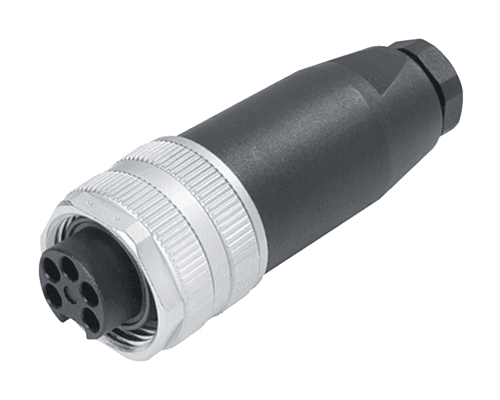

3 Way 7/8" Female Cable Connector with Screw Contacts, 6-8mm Straight Cable Entry, IP67 (820 Series)
Part no. : 99-2440-32-03
3 Way 7/8" Female Cable Connector with Screw Contacts, 10-12mm Straight Cable Entry, IP67 (820 Series)
Part no. : 99-2442-12-04
4 Way 7/8" Female Cable Connector with Screw Contacts, 6-8mm Straight Cable Entry, IP67 (820 Series)
Part no. : 99-2442-32-04
4 Way 7/8" Female Cable Connector with Screw Contacts, 10-12mm Straight Cable Entry, IP67 (820 Series)
Part no. : 99-2444-12-05
5 Way 7/8" Female Cable Connector with Screw Contacts, 6-8mm Straight Cable Entry, IP67 (820 Series)
Part no. : 99-2444-32-05
5 Way 7/8" Female Cable Connector with Screw Contacts, 10-12mm Straight Cable Entry, IP67 (820 Series)
Part no. : 99-2444-33-05
5 Way 7/8" Female Cable Connector with Screw Contacts, 10-12mm Straight Cable Entry, IP67 (820 Series)
Part no. : 99-2440-21-03
3 Way 7/8" Female Cable Connector with Screw Contacts, 8-10mm Straight Cable Entry, IP67 (820 Series)
Part no. : 99-2440-42-03
3 Way 7/8" Female Cable Connector with Screw Contacts, 12-14mm Straight Cable Entry, IP67 (820 Series)
Part no. : 99-2442-21-04
4 Way 7/8" Female Cable Connector with Screw Contacts, 8-10mm Straight Cable Entry, IP67 (820 Series)
Part no. : 99-2442-42-04
4 Way 7/8" Female Cable Connector with Screw Contacts, 12-14mm Straight Cable Entry, IP67 (820 Series)
Part no. : 99-2444-21-05
5 Way 7/8" Female Cable Connector with Screw Contacts, 8-10mm Straight Cable Entry, IP67 (820 Series)
Part no. : 99-2444-42-05
5 Way 7/8" Female Cable Connector with Screw Contacts, 12-14mm Straight Cable Entry, IP67 (820 Series)
Part no. : 99-2444-23-05
5 Way 7/8" Female Cable Connector with Screw Contacts, 8-10mm Straight Cable Entry, IP67 (820 Series)
Part no. : 99-2444-43-05
5 Way 7/8" Female Cable Connector with Screw Contacts, 12-14mm Straight Cable Entry, IP67 (820 Series)
Part no. : 99-2440-282-03
3 Way 7/8" Female Cable Connector with Screw Contacts, 6-8mm Straight Cable Entry, Stainless Steel Coupling Area, IP67 (820 Series)
Part no. : 99-2442-282-04
4 Way 7/8" Female Cable Connector with Screw Contacts, 6-8mm Straight Cable Entry, Stainless Steel Coupling Area, IP67 (820 Series)
Part no. : 99-2444-282-05
5 Way 7/8" Female Cable Connector with Screw Contacts, 6-8mm Straight Cable Entry, Stainless Steel Coupling Area, IP67 (820 Series)
Part no. : 99-2440-52-03

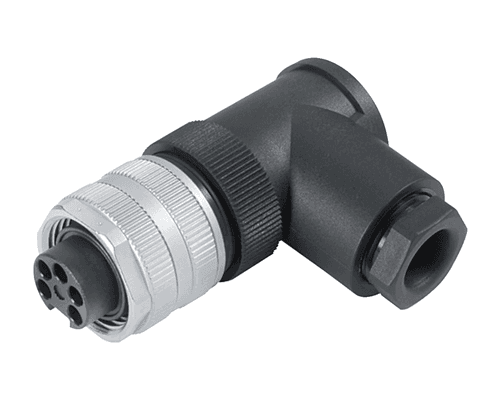

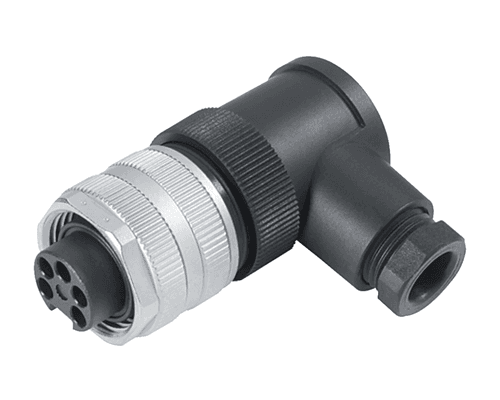

3 Way 7/8" Female Cable Connector with Screw Contacts, 6-8mm Angled Cable Entry, IP67 (820 Series)
Part no. : 99-2442-52-04
4 Way 7/8" Female Cable Connector with Screw Contacts, 6-8mm Angled Cable Entry, IP67 (820 Series)
Part no. : 99-2444-52-05
5 Way 7/8" Female Cable Connector with Screw Contacts, 6-8mm Angled Cable Entry, IP67 (820 Series)
Part no. : 99-2440-62-03
3 Way 7/8" Female Cable Connector with Screw Contacts, 8-10mm Angled Cable Entry, IP67 (820 Series)
Part no. : 99-2440-72-03
3 Way 7/8" Female Cable Connector with Screw Contacts, 10-12mm Angled Cable Entry, IP67 (820 Series)
Part no. : 99-2442-62-04
4 Way 7/8" Female Cable Connector with Screw Contacts, 8-10mm Angled Cable Entry, IP67 (820 Series)
Part no. : 99-2442-72-04
4 Way 7/8" Female Cable Connector with Screw Contacts, 10-12mm Angled Cable Entry, IP67 (820 Series)
Part no. : 99-2444-62-05
5 Way 7/8" Female Cable Connector with Screw Contacts, 8-10mm Angled Cable Entry, IP67 (820 Series)
Part no. : 99-2444-72-05
5 Way 7/8" Female Cable Connector with Screw Contacts, 10-12mm Angled Cable Entry, IP67 (820 Series)
Part no. : 99-2444-63-05
5 Way 7/8" Female Cable Connector with Screw Contacts, 8-10mm Angled Cable Entry, IP67 (820 Series)
Part no. : 99-2444-73-05
5 Way 7/8" Female Cable Connector with Screw Contacts, 10-12mm Angled Cable Entry, IP67 (820 Series)
Part no. : 09-2447-310-03

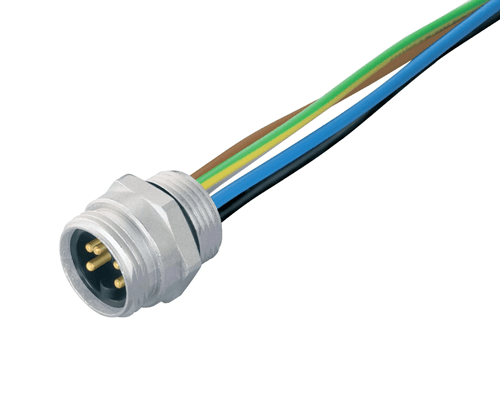

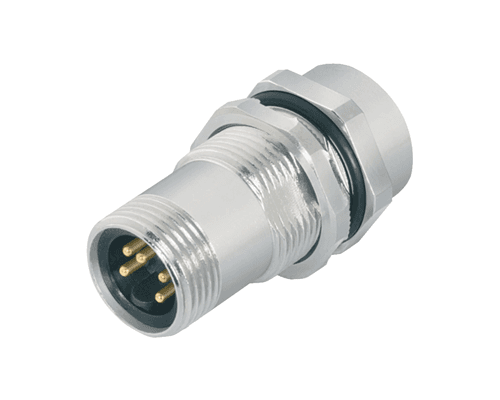

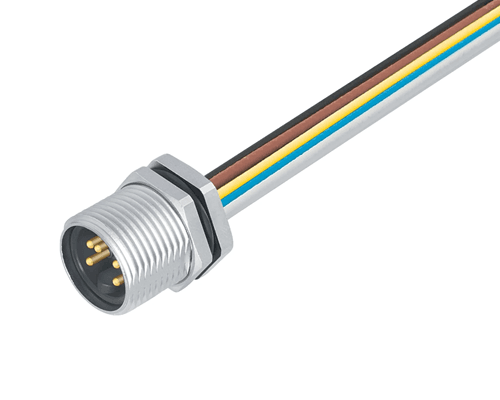

3 Way 7/8" Male Jam-Nut Panel Connector with Pre-wired Contacts, IP67 (820 Series)
Part no. : 09-2447-300-03
3 Way 7/8" Male Jam-Nut Panel Connector with Pre-wired Contacts, IP67 (820 Series)
Part no. : 09-2447-320-03
3 Way 7/8" Male Jam-Nut Panel Connector with Pre-wired Contacts, IP67 (820 Series)
Part no. : 09-2449-310-04
4 Way 7/8" Male Jam-Nut Panel Connector with Pre-wired Contacts, IP67 (820 Series)
Part no. : 09-2449-300-04
4 Way 7/8" Male Jam-Nut Panel Connector with Pre-wired Contacts, IP67 (820 Series)
Part no. : 09-2449-320-04
4 Way 7/8" Male Jam-Nut Panel Connector with Pre-wired Contacts, IP67 (820 Series)
Part no. : 09-2451-310-05
5 Way 7/8" Male Jam-Nut Panel Connector with Pre-wired Contacts, IP67 (820 Series)
Part no. : 09-2451-300-05
5 Way 7/8" Male Jam-Nut Panel Connector with Pre-wired Contacts, IP67 (820 Series)
Part no. : 09-2451-320-05
5 Way 7/8" Male Jam-Nut Panel Connector with Pre-wired Contacts, IP67 (820 Series)
Part no. : 09-2447-100-03
3 Way 7/8" Male Jam-Nut Panel Connector with Pre-wired Contacts, IP67 (820 Series)
Part no. : 09-2449-100-04
4 Way 7/8" Male Jam-Nut Panel Connector with Pre-wired Contacts, IP67 (820 Series)
Part no. : 09-2451-100-05
5 Way 7/8" Male Jam-Nut Panel Connector with Pre-wired Contacts, IP67 (820 Series)
Part no. : 09-2447-330-03
3 Way 7/8" Male Jam-Nut Panel Connector with Dip-Solder Contacts, IP67 (820 Series)
Part no. : 09-2449-330-04
4 Way 7/8" Male Jam-Nut Panel Connector with Dip-Solder Contacts, IP67 (820 Series)
Part no. : 09-2451-330-05
5 Way 7/8" Male Jam-Nut Panel Connector with Dip-Solder Contacts, IP67 (820 Series)
Part no. : 09-2447-180-03
3 Way 7/8" Male Jam-Nut Panel Connector with Dip-Solder Contacts, IP67 (820 Series)
Part no. : 09-2449-180-04
4 Way 7/8" Male Jam-Nut Panel Connector with Dip-Solder Contacts, IP67 (820 Series)
Part no. : 09-2451-180-05
5 Way 7/8" Male Jam-Nut Panel Connector with Dip-Solder Contacts, IP67 (820 Series)
Part no. : 09-2446-310-03

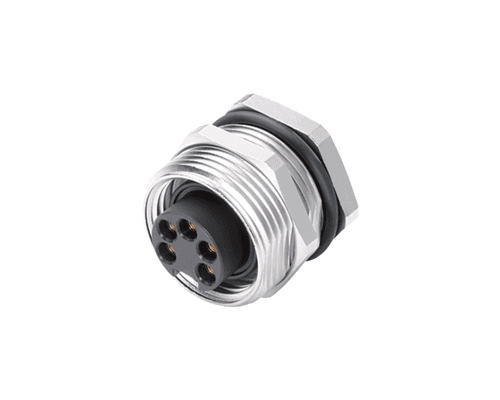

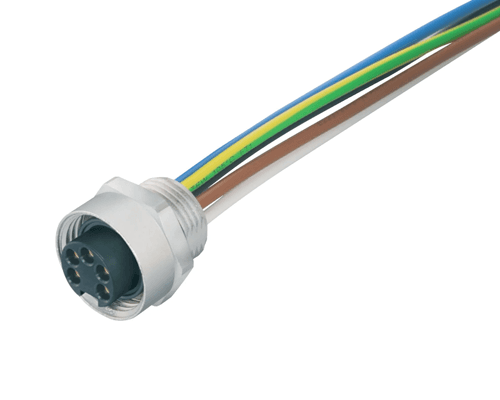

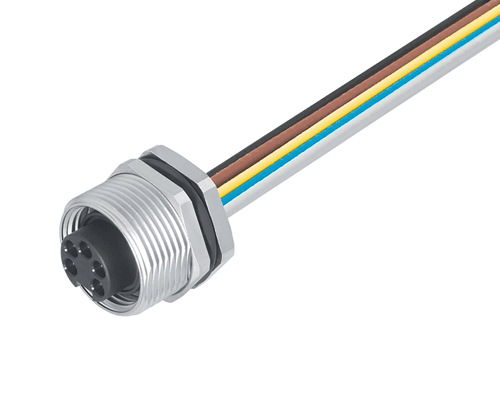

3 Way 7/8" Female Jam-Nut Panel Connector with Pre-wired Contacts, IP67 (820 Series)
Part no. : 09-2446-300-03
3 Way 7/8" Female Jam-Nut Panel Connector with Pre-wired Contacts, IP67 (820 Series)
Part no. : 09-2446-320-03
3 Way 7/8" Female Jam-Nut Panel Connector with Pre-wired Contacts, IP67 (820 Series)
Part no. : 09-2448-310-04
4 Way 7/8" Female Jam-Nut Panel Connector with Pre-wired Contacts, IP67 (820 Series)
Part no. : 09-2448-300-04
4 Way 7/8" Female Jam-Nut Panel Connector with Pre-wired Contacts, IP67 (820 Series)
Part no. : 09-2448-320-04
4 Way 7/8" Female Jam-Nut Panel Connector with Pre-wired Contacts, IP67 (820 Series)
Part no. : 09-2450-310-05
5 Way 7/8" Female Jam-Nut Panel Connector with Pre-wired Contacts, IP67 (820 Series)
Part no. : 09-2450-300-05
5 Way 7/8" Female Jam-Nut Panel Connector with Pre-wired Contacts, IP67 (820 Series)
Part no. : 09-2450-320-05
5 Way 7/8" Female Jam-Nut Panel Connector with Pre-wired Contacts, IP67 (820 Series)
Part no. : 09-2446-100-03
3 Way 7/8" Female Jam-Nut Panel Connector with Pre-wired Contacts, IP67 (820 Series)
Part no. : 09-2448-100-04
4 Way 7/8" Female Jam-Nut Panel Connector with Pre-wired Contacts, IP67 (820 Series)
Part no. : 09-2450-100-05
5 Way 7/8" Female Jam-Nut Panel Connector with Pre-wired Contacts, IP67 (820 Series)
Part no. : 09-2446-330-03

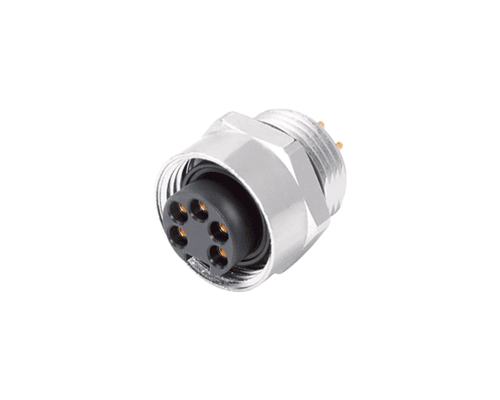

3 Way 7/8" Female Jam-Nut Panel Connector with Dip-Solder Contacts, IP67 (820 Series)
Part no. : 09-2448-330-04
4 Way 7/8" Female Jam-Nut Panel Connector with Dip-Solder Contacts, IP67 (820 Series)
Part no. : 09-2450-330-05
5 Way 7/8" Female Jam-Nut Panel Connector with Dip-Solder Contacts, IP67 (820 Series)
Part no. : 09-2446-180-03
3 Way 7/8" Female Jam-Nut Panel Connector with Dip-Solder Contacts, IP67 (820 Series)
Part no. : 09-2448-180-04
4 Way 7/8" Female Jam-Nut Panel Connector with Dip-Solder Contacts, IP67 (820 Series)
Part no. : 09-2450-180-05
5 Way 7/8" Female Jam-Nut Panel Connector with Dip-Solder Contacts, IP67 (820 Series)
Part no. : 77-1429-0000-50003-0200

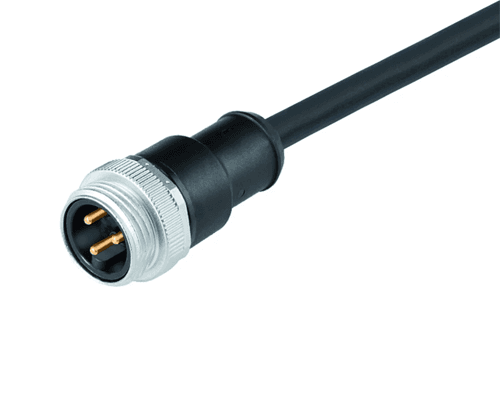

3 Way 7/8" Cable Assembly, Straight Male to Open End, 2m Cable with Black PUR Jacket, IP67 (870 Series)
Part no. : 77-1429-0000-50003-0500
3 Way 7/8" Cable Assembly, Straight Male to Open End, 5m Cable with Black PUR Jacket, IP67 (870 Series)
Part no. : 77-1429-0000-50003-1000
3 Way 7/8" Cable Assembly, Straight Male to Open End, 10m Cable with Black PUR Jacket, IP67 (870 Series)
Part no. : 77-1429-0000-50004-0200
4 Way 7/8" Cable Assembly, Straight Male to Open End, 2m Cable with Black PUR Jacket, IP67 (870 Series)
Part no. : 77-1429-0000-50004-0500
4 Way 7/8" Cable Assembly, Straight Male to Open End, 5m Cable with Black PUR Jacket, IP67 (870 Series)
Part no. : 77-1429-0000-50004-1000
4 Way 7/8" Cable Assembly, Straight Male to Open End, 10m Cable with Black PUR Jacket, IP67 (870 Series)
Part no. : 77-1429-0000-50005-0200
5 Way 7/8" Cable Assembly, Straight Male to Open End, 2m Cable with Black PUR Jacket, IP67 (870 Series)
Part no. : 77-1429-0000-50005-0500
5 Way 7/8" Cable Assembly, Straight Male to Open End, 5m Cable with Black PUR Jacket, IP67 (870 Series)
Part no. : 77-1429-0000-50005-1000
5 Way 7/8" Cable Assembly, Straight Male to Open End, 10m Cable with Black PUR Jacket, IP67 (870 Series)
Part no. : 77-1427-0000-50003-0200

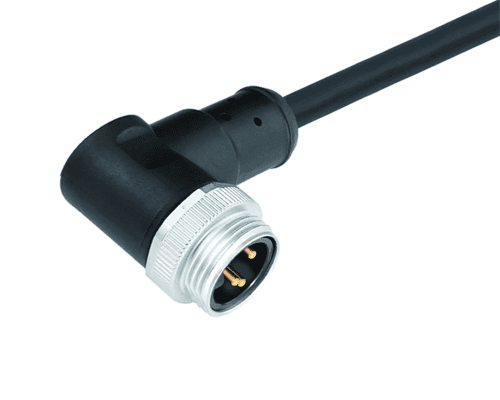

3 Way 7/8" Cable Assembly, Angled Male to Open End, 2m Cable with Black PUR Jacket, IP67 (870 Series)
Part no. : 77-1427-0000-50003-0500
3 Way 7/8" Cable Assembly, Angled Male to Open End, 5m Cable with Black PUR Jacket, IP67 (870 Series)
Part no. : 77-1427-0000-50003-1000
3 Way 7/8" Cable Assembly, Angled Male to Open End, 10m Cable with Black PUR Jacket, IP67 (870 Series)
Part no. : 77-1427-0000-50004-0200
4 Way 7/8" Cable Assembly, Angled Male to Open End, 2m Cable with Black PUR Jacket, IP67 (870 Series)
Part no. : 77-1427-0000-50004-0500
4 Way 7/8" Cable Assembly, Angled Male to Open End, 5m Cable with Black PUR Jacket, IP67 (870 Series)
Part no. : 77-1427-0000-50004-1000
4 Way 7/8" Cable Assembly, Angled Male to Open End, 10m Cable with Black PUR Jacket, IP67 (870 Series)
Part no. : 77-1427-0000-50005-0200
5 Way 7/8" Cable Assembly, Angled Male to Open End, 2m Cable with Black PUR Jacket, IP67 (870 Series)
Part no. : 77-1427-0000-50005-0500
5 Way 7/8" Cable Assembly, Angled Male to Open End, 5m Cable with Black PUR Jacket, IP67 (870 Series)
Part no. : 77-1427-0000-50005-1000
5 Way 7/8" Cable Assembly, Angled Male to Open End, 10m Cable with Black PUR Jacket, IP67 (870 Series)
Part no. : 77-1430-0000-50003-0200
3 Way 7/8" Cable Assembly, Straight Female to Open End, 2m Cable with Black PUR Jacket, IP67 (870 Series)
Part no. : 77-1430-0000-50003-0500
3 Way 7/8" Cable Assembly, Straight Female to Open End, 5m Cable with Black PUR Jacket, IP67 (870 Series)
Part no. : 77-1430-0000-50003-1000
3 Way 7/8" Cable Assembly, Straight Female to Open End, 10m Cable with Black PUR Jacket, IP67 (870 Series)
Part no. : 77-1430-0000-50004-0200
4 Way 7/8" Cable Assembly, Straight Female to Open End, 2m Cable with Black PUR Jacket, IP67 (870 Series)
Part no. : 77-1430-0000-50004-0500
4 Way 7/8" Cable Assembly, Straight Female to Open End, 5m Cable with Black PUR Jacket, IP67 (870 Series)
Part no. : 77-1430-0000-50004-1000
4 Way 7/8" Cable Assembly, Straight Female to Open End, 10m Cable with Black PUR Jacket, IP67 (870 Series)
Part no. : 77-1430-0000-50005-0200
5 Way 7/8" Cable Assembly, Straight Female to Open End, 2m Cable with Black PUR Jacket, IP67 (870 Series)
Part no. : 77-1430-0000-50005-0500
5 Way 7/8" Cable Assembly, Straight Female to Open End, 5m Cable with Black PUR Jacket, IP67 (870 Series)
Part no. : 77-1430-0000-50005-1000
5 Way 7/8" Cable Assembly, Straight Female to Open End, 10m Cable with Black PUR Jacket, IP67 (870 Series)
Part no. : 77-1434-0000-50003-0200
3 Way 7/8" Cable Assembly, Angled Female to Open End, 2m Cable with Black PUR Jacket, IP67 (870 Series)
Part no. : 77-1434-0000-50003-0500
3 Way 7/8" Cable Assembly, Angled Female to Open End, 5m Cable with Black PUR Jacket, IP67 (870 Series)
Part no. : 77-1434-0000-50003-1000
3 Way 7/8" Cable Assembly, Angled Female to Open End, 10m Cable with Black PUR Jacket, IP67 (870 Series)
Part no. : 77-1434-0000-50004-0200
4 Way 7/8" Cable Assembly, Angled Female to Open End, 2m Cable with Black PUR Jacket, IP67 (870 Series)
Part no. : 77-1434-0000-50004-0500
4 Way 7/8" Cable Assembly, Angled Female to Open End, 5m Cable with Black PUR Jacket, IP67 (870 Series)
Part no. : 77-1434-0000-50004-1000
4 Way 7/8" Cable Assembly, Angled Female to Open End, 10m Cable with Black PUR Jacket, IP67 (870 Series)
Part no. : 77-1434-0000-50005-0200
5 Way 7/8" Cable Assembly, Angled Female to Open End, 2m Cable with Black PUR Jacket, IP67 (870 Series)
Part no. : 77-1434-0000-50005-0500
5 Way 7/8" Cable Assembly, Angled Female to Open End, 5m Cable with Black PUR Jacket, IP67 (870 Series)
Part no. : 77-1434-0000-50005-1000
5 Way 7/8" Cable Assembly, Angled Female to Open End, 10m Cable with Black PUR Jacket, IP67 (870 Series)
Part no. : 09-2472-00-05
5 Way 7/8" Jam-Nut Panel Feedthrough Connector, Male to Female, IP67 (820 Series)
Part no. : 09-2473-100-03

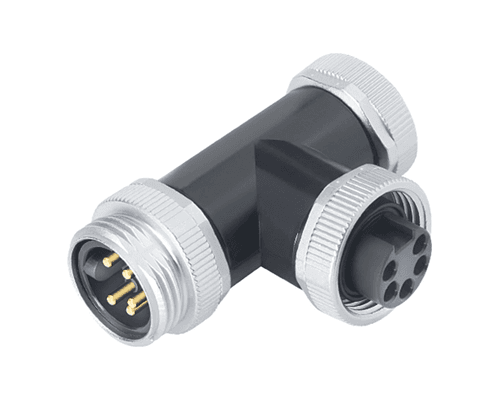

In-Line Splitter, 3 Way 7/8" to 2 x 3 Way 7/8", Straight Female to Angled Male & Female, IP67 (820 Series)
Part no. : 09-2474-100-04
In-Line Splitter, 4 Way 7/8" to 2 x 4 Way 7/8", Straight Female to Angled Male & Female, IP67 (820 Series)
Part no. : 09-2475-100-05
In-Line Splitter, 4 Way 7/8" to 2 x 5 Way 7/8", Straight Female to Angled Male & Female, IP67 (820 Series)
Part no. : 08-2807-000-000

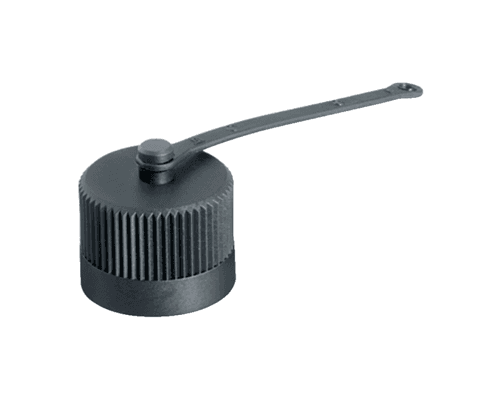

Protection Cover for Cable Connector with Male Locking Thread, with Fixing Rope, IP67 (820 Series)
Part no. : 08-2808-000-000

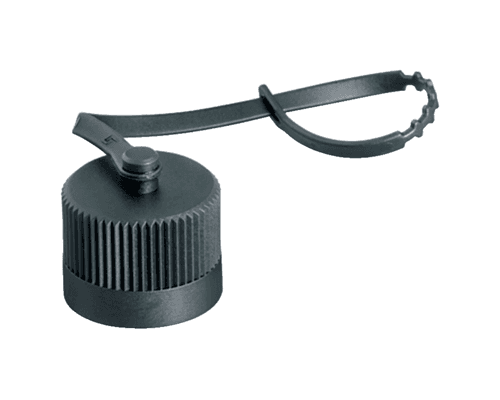

Protection Cover for Cable Connector with Female Locking Thread, with Fixing Rope, IP67 (820 Series)
Part no. : 08-2809-000-000

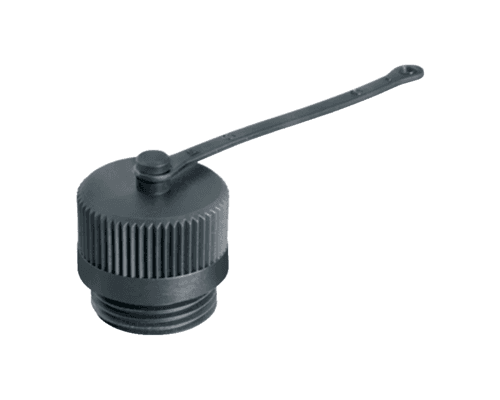

Protection Cover for Panel Connector with Male Locking Thread, with Fixing Rope, IP67 (820 Series)
Part no. : 08-2811-000-000

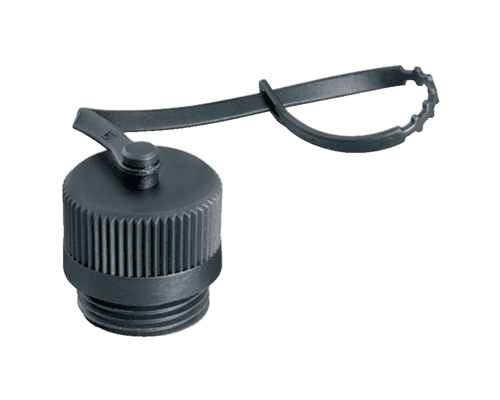

Protection Cover for Panel Connector with Female Locking Thread, with Fixing Rope, IP67 (820 Series)
Part no. : 16-0403-001

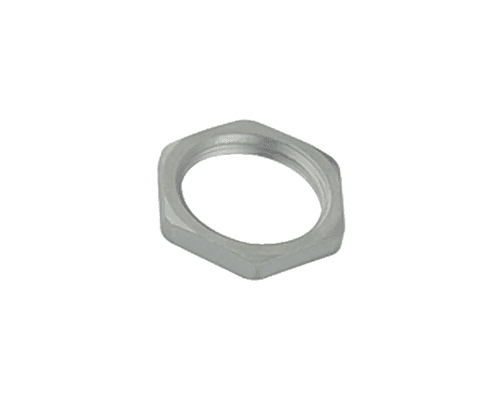

Metal Hexagonal Lock Nut with PG11 Thread
Part no. : 16-0401-001
Metal Hexagonal Lock Nut with PG13.5 Thread
Part no. : 16-0917-001
Metal Hexagonal Lock Nut with M20 Thread
Part no. : 07-0082-000

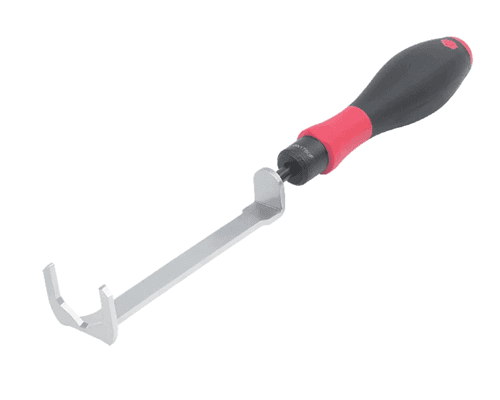

Installation Spanner (820 Series)
